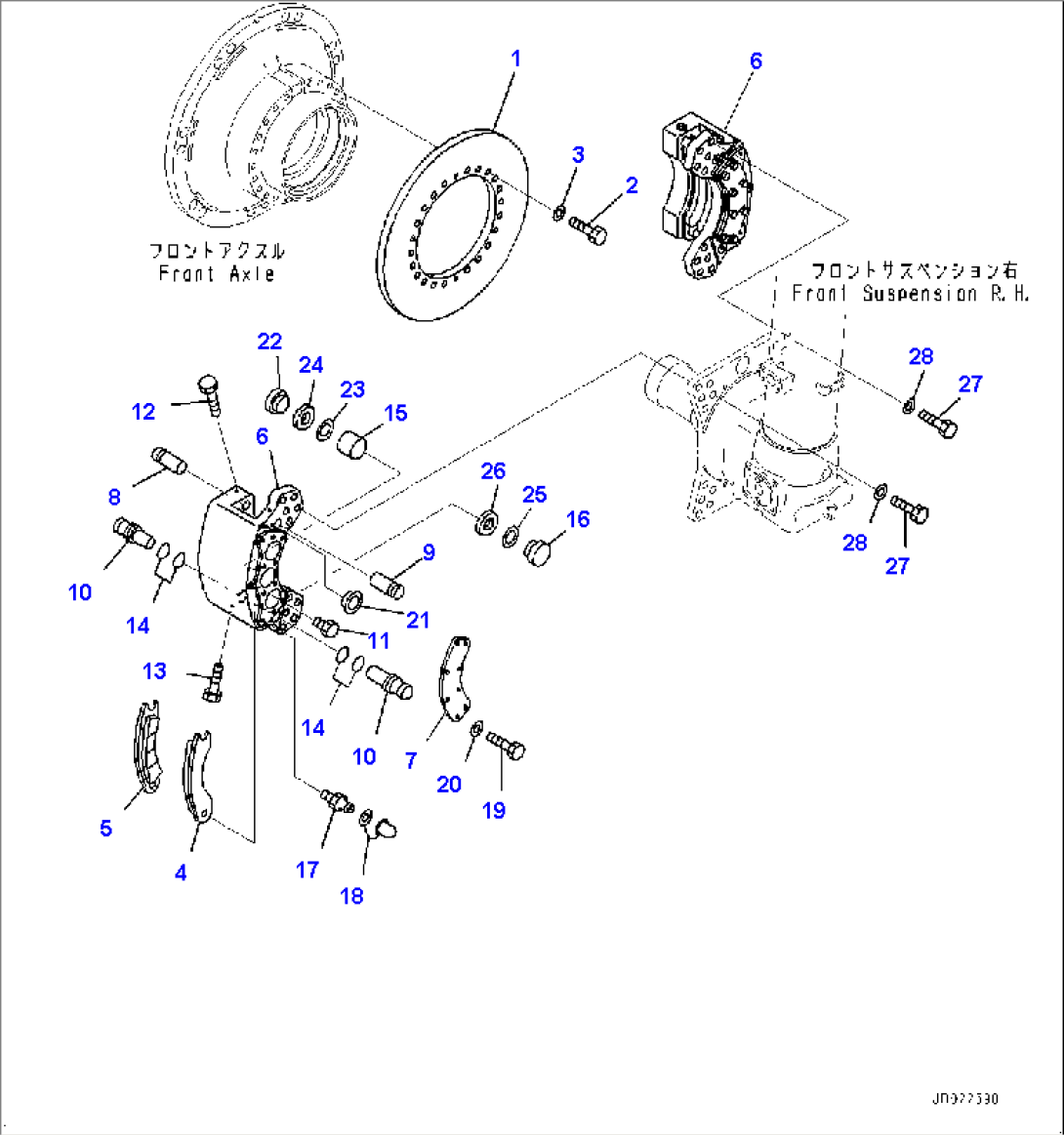

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-27-71310 | Disk | 30001- | |
| 2 | 01010-62070 | Bolt | 30001- | |
| 3 | 01643-32060 | Washer | 30001- | |
| 3 | 566-32-53101 | Brake Assembly | 30001- | |
| 3 | 566-32-05221 | Pad Assembly | 30001- | |
| 4 | 566-32-53211 | Pad | 30001- | |
| 5 | 566-32-53221 | Pad | 30001- | |
| 6 | Plate | 30001- | ||
| 7 | 566-32-53240 | Plate | 30001- | |
| 8 | 566-32-53260 | Pin | 30001- | |
| 9 | 566-32-53270 | Pin | 30001- | |
| 10 | 566-32-53281 | Pin | 30001- | |
| 11 | 566-32-53290 | Plug, For Shipping | 30001- | |
| 12 | 566-32-53310 | Bolt | 30001- | |
| 13 | 566-32-53320 | Bolt | 30001- | |
| 14 | 566-32-53750 | O-ring | 30001- | |
| 15 | 566-32-53810 | Piston | 30001- | |
| 16 | 566-32-53820 | Plug | 30001- | |
| 17 | 566-32-53860 | Bleeder | 30001- | |
| 18 | 232-32-11350 | Cap | 30001- | |
| 19 | 566-32-53880 | Bolt | 30001- | |
| 20 | 566-32-53890 | Washer | 30001- | |
| 21 | 566-32-53250 | Plug | 30001- | |
| 21 | 566-32-05210 | Service Kit | 30001- | |
| 22 | Seal | 30001- | ||
| 23 | Seal | 30001- | ||
| 24 | Ring | 30001- | ||
| 25 | Ring | 30001- | ||
| 26 | Seal | 30001- | ||
| 27 | 01010-62470 | Bolt | 30001- | |
| 28 | 01643-32460 | Washer | 30001- |
