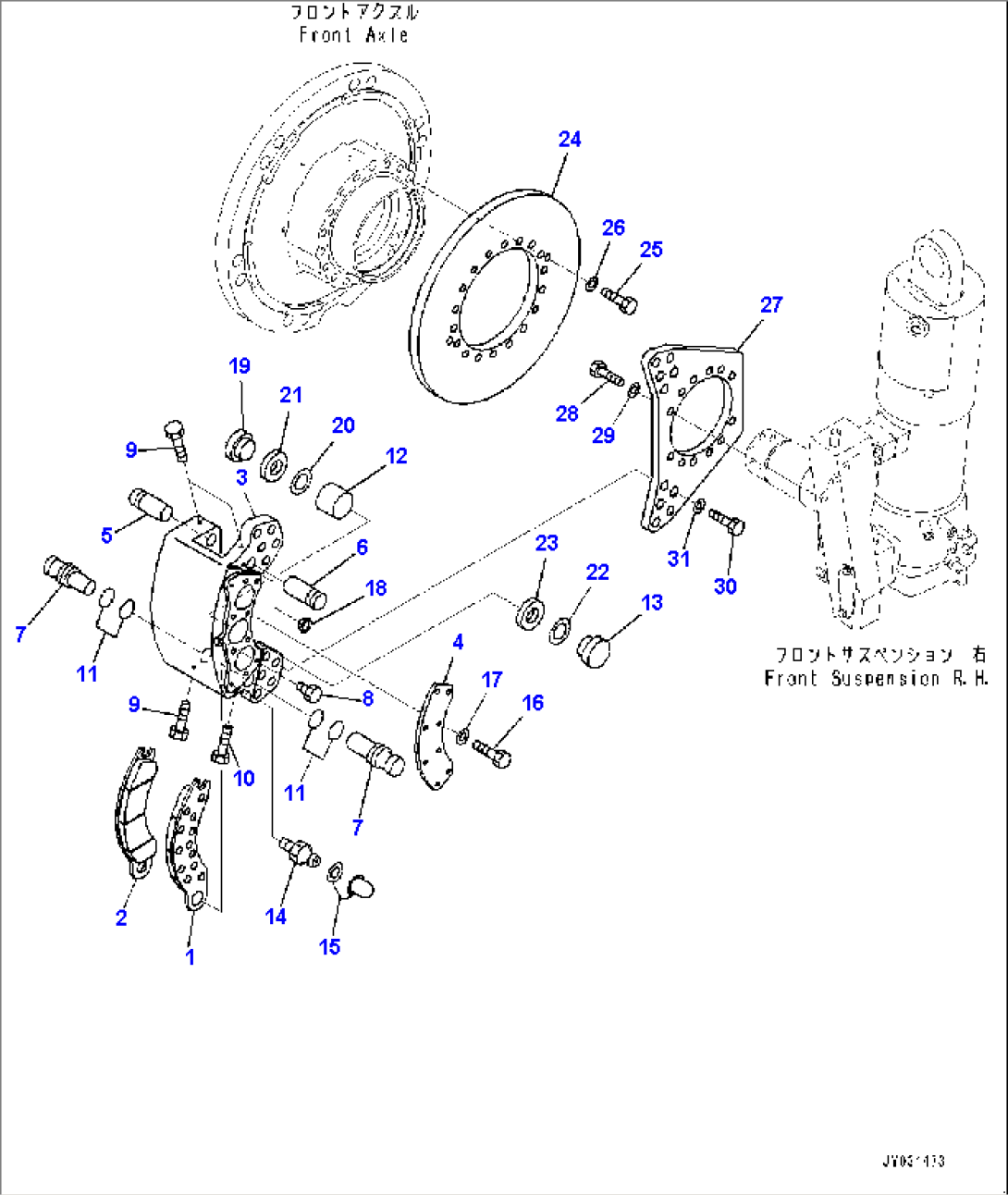

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-32-53101 | Brake Assembly | 50001- | ||
| 566-32-05221 | Pad Assembly | 50001- | ||
| 1 | 566-32-53211 | Pad | 50001- | |
| 2 | 566-32-53221 | Pad | 50001- | |
| 3 | 566-32-53230 | Plate | 50001- | |
| 4 | 566-32-53240 | Plate | 50001- | |
| 5 | 566-32-53260 | Pin | 50001- | |
| 6 | 566-32-53270 | Pin | 50001- | |
| 7 | 566-32-53281 | Pin | 50001- | |
| 8 | 566-32-53290 | Plug | 50001- | |
| 9 | 566-32-53310 | Bolt | 50001- | |
| 10 | 566-32-53320 | Bolt | 50001- | |
| 11 | 566-32-53750 | O-ring | 50001- | |
| 12 | 566-32-53810 | Piston | 50001- | |
| 13 | 566-32-53820 | Plug | 50001- | |
| 14 | 566-32-53860 | Bleeder | 50001- | |
| 15 | 232-32-11350 | Cap | 50001- | |
| 16 | 566-32-53880 | Bolt | 50001- | |
| 17 | 566-32-53890 | Washer | 50001- | |
| 18 | 566-32-53250 | Plug | 50001- | |
| 18 | 566-32-05210 | Service Kit | 50001- | |
| 19 | Seal | 50001- | ||
| 20 | Seal | 50001- | ||
| 21 | Ring | 50001- | ||
| 22 | Ring | 50001- | ||
| 23 | Seal | 50001- | ||
| 24 | 566-32-51120 | Disk | 50001- | |
| 25 | 01010-62065 | Bolt | 50001- | |
| 26 | 01643-32060 | Washer | 50001- | |
| 27 | 566-32-51131 | Plate | 50001- | |
| 28 | 01010-62055 | Bolt | 50001- | |
| 29 | 01602-22060 | Washer | 50001- | |
| 30 | 01010-62465 | Bolt | 50001- | |
| 31 | 01643-32460 | Washer | 50001- |
