| Item | Part No. | Part Name | Qty | Serial No. |
| (427-22-20001) | AXLE ASS'Y,FRONT | 50001- | ||
| (427-22-20070) | AXLE ASS'Y | 50001- | ||

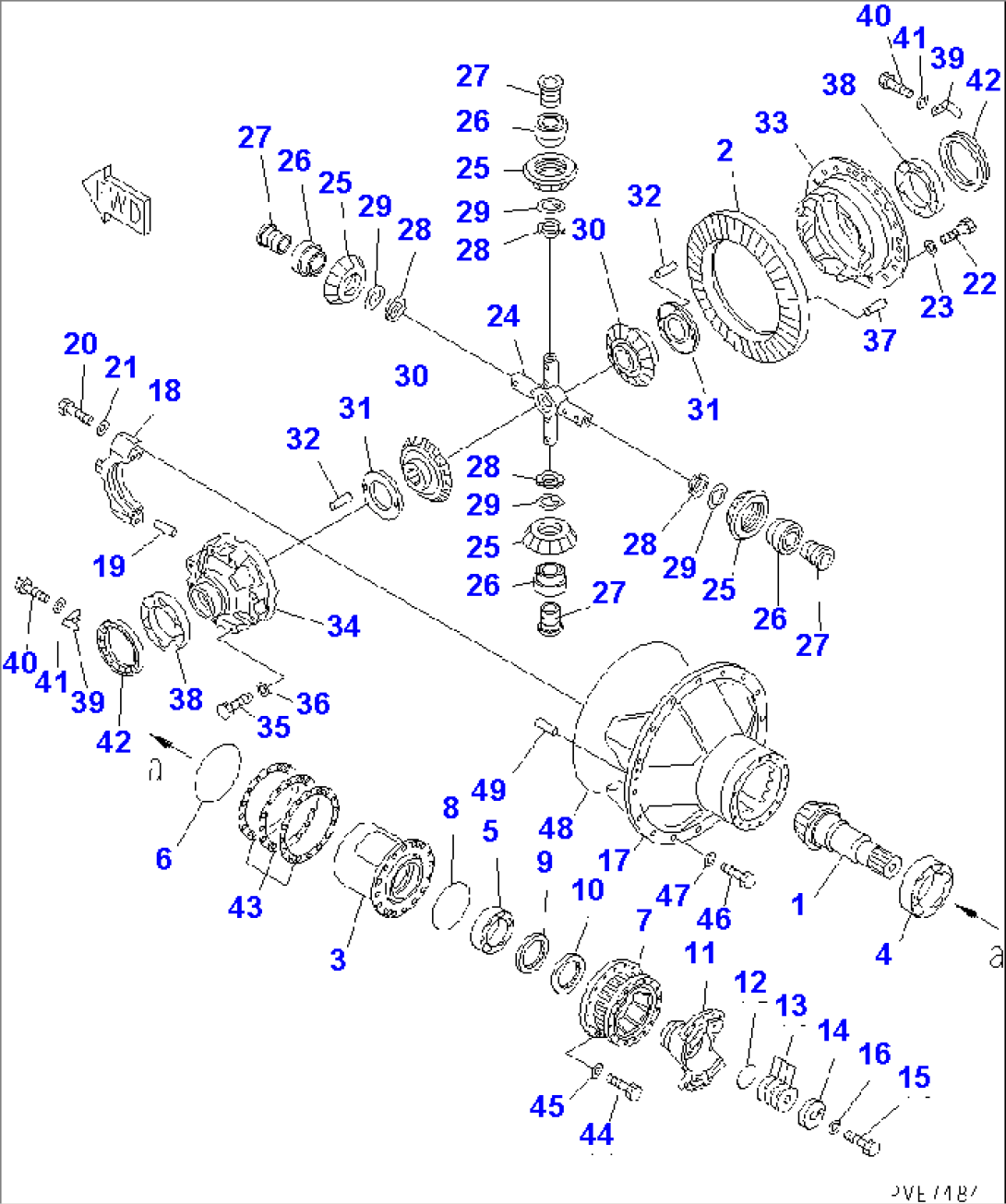

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-07A0. | ||||
| 427-22-21000 | DIFFERENTIAL ASS'Y | 50001- | ||
| 427-22-11200 | PINION ASS'Y | 50001- | ||
| 1 | \6\ | PINION | 50001- | |
| 2 | \6\ | GEAR | 50001- | |
| 3 | 427-22-11130 | CAGE | 50001- | |
| 4 | 561-27-11910 | BEARING | 50001- | |
| 5 | 566-22-11811 | BEARING | 50001- | |
| 6 | 07000-15320 | O-RING | 50001- | |
| 7 | 427-22-21310 | CAGE | 50001- | |
| 8 | 07000-15260 | O-RING | 50001- | |
| 9 | 07012-50150 | SEAL | 50001- | |
| 10 | 427-22-21760 | SEAL | 50001- | |
| 11 | 427-22-21240 | COUPLING | 50001- | |
| 12 | 562-15-19970 | O-RING | 50001- | |
| 13 | 427-22-11460 | SHIM¤ 1.0MM | 50001- | |
| 427-22-11470 | SHIM¤ 0.3MM | 50001- | ||
| 427-22-11480 | SHIM¤ 0.2MM | 50001- | ||
| 427-22-11490 | SHIM¤ 0.05MM | 50001- | ||
| 14 | 427-22-11240 | HOLDER | 50001- | |
| 15 | 562-22-11950 | BOLT | 50001- | |
| 16 | 01643-33690 | WASHER | 50001- | |
| 427-22-00610 | CARRIER ASS'Y | 50001- | ||
| 17 | 427-22-11110 | CARRIER | 50001- | |
| 18 | 427-22-11120 | CAP | 50001- | |
| 19 | 04020-01842 | PIN | 50001- | |
| 20 | 01011-63080 | BOLT | 50001- | |
| 21 | 01643-33080 | WASHER | 50001- | |
| 22 | 01010-62480 | BOLT | 50001- | |
| 23 | 01643-32460 | WASHER | 50001- | |
| 24 | 427-22-11410 | SHAFT | 50001- | |
| 25 | 562-22-11420 | PINION | 50001- | |
| 26 | 562-22-11850 | BEARING | 50001- | |
| 27 | 562-22-11440 | SLEEVE | 50001- | |
| 28 | 562-22-11990 | NUT | 50001- | |
| 29 | 562-22-11980 | WASHER | 50001- | |
| 30 | 427-22-11430 | GEAR | 50001- | |
| 31 | 562-22-11460 | WASHER | 50001- | |
| 32 | 6684-21-5150 | PIN,DOWEL | 50001- | |
| 427-22-11500 | CASE ASS'Y | 50001- | ||
| 33 | \6\ | CASE | 50001- | |
| 34 | \6\ | CASE | 50001- | |
| 35 | 01011-62490 | BOLT | 50001- | |
| 36 | 01643-32460 | WASHER | 50001- | |
| 37 | 04020-01024 | PIN | 50001- | |
| 38 | 568-22-11960 | BEARING | 50001- | |
| 39 | 427-22-11150 | LOCK | 50001- | |
| 40 | 01010-31640 | BOLT | 50001- | |
| 41 | 01643-31645 | WASHER | 50001- | |
| 42 | 568-22-11611 | NUT | 50001- | |
| 43 | 427-22-11370 | SHIM¤ 1.0MM | 50001- | |
| 427-22-11380 | SHIM¤ 0.3MM | 50001- | ||
| 427-22-11390 | SHIM¤ 0.2MM | 50001- | ||
| 44 | 01010-62090 | BOLT | 50001- | |
| 45 | 01643-32060 | WASHER | 50001- | |
| 46 | 01010-62465 | BOLT | 50001- | |
| 47 | 01643-32460 | WASHER | 50001- | |
| 48 | 562-22-12920 | O-RING | 50001- | |
| 49 | 04020-01842 | PIN | 50001- |
