| Item | Part No. | Part Name | Qty | Serial No. |
| (428-22-20100) | FRONT AXLE ASS'Y | 50046- | ||
| (428-22-20000) | FRONT AXLE ASS'Y | 50001-50045 | ||

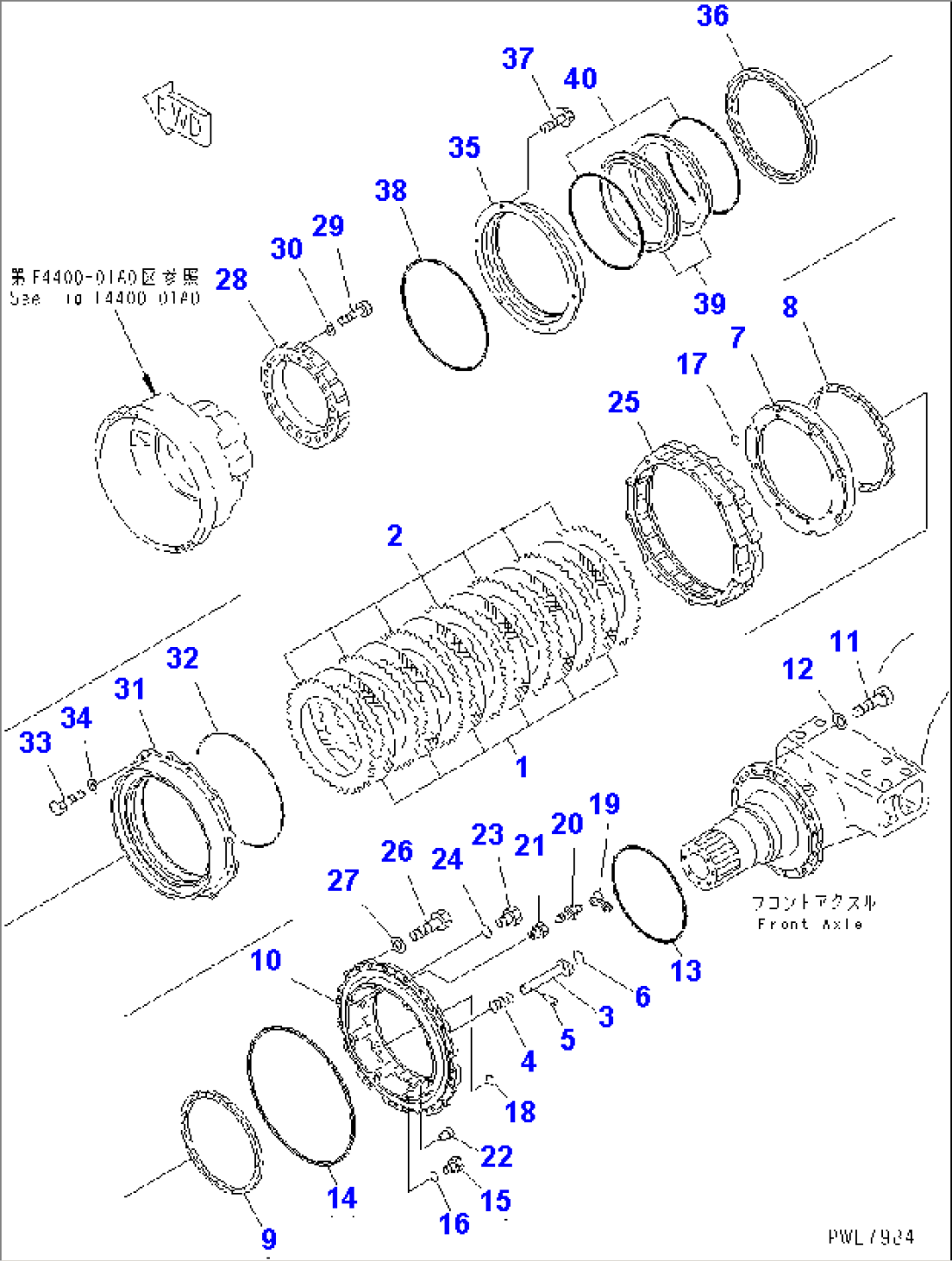

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-08A0. | ||||
| (428-22-24100) | FINAL DRIVE ASS'Y,WITH BRAKE | 50046- | ||
| (428-22-14000) | FINAL DRIVE ASS'Y,WITH BRAKE | 50001-50045 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-01A0 AND F4400-02A0. | ||||
| 428-33-21100 | BRAKE ASS'Y | 50046- | ||
| 428-33-11003 | BRAKE ASS'Y | 50001-50045 | ||
| 1 | 569-33-61240 | DISC | 50046- | |
| 428-33-11240 | DISC | 50001-50045 | ||
| 2 | 569-33-41230 | PLATE | 50046- | |
| 428-33-11250 | PLATE | 50001-50045 | ||
| 3 | 428-33-11610 | GUIDE | 50001- | |
| 4 | 428-33-11620 | SPRING | 50001- | |
| 5 | 706-66-40271 | PIN,DOWEL | 50001- | |
| 6 | 07000-F3035 | O-RING | 50001- | |
| 7 | 428-33-11150 | PISTON | 50046- | |
| 428-33-11122 | PISTON | 50001-50045 | ||
| 8 | 428-33-11480 | SEAL | 50001- | |
| 9 | 569-33-41951 | SEAL | 50001- | |
| 10 | 428-33-11110 | CYLINDER | 50001- | |
| 11 | 01010-62470 | BOLT | 50001- | |
| 12 | 01643-32460 | WASHER | 50001- | |
| 13 | 07000-15470 | O-RING | 50001- | |
| 14 | 428-33-11920 | O-RING | 50001- | |
| 15 | 07040-11812 | PLUG | 50001- | |
| 16 | 07002-21823 | O-RING | 50001- | |
| 17 | 07000-F3025 | O-RING | 50001- | |
| 18 | 07000-13030 | O-RING | 50001- | |
| 19 | 566-32-11620 | CAP | 50001- | |
| 20 | 566-32-11430 | BLEEDER | 50001- | |
| 21 | 581-32-12140 | PLUG | 50001- | |
| 22 | 07043-70211 | PLUG | 50001- | |
| 23 | 07040-12414 | PLUG,(FOR SHIPPING) | 50001- | |
| 24 | 07002-12434 | O-RING,(FOR SHIPPING) | 50001- | |
| 25 | 428-33-11211 | GEAR | 50001- | |
| 26 | 01010-62060 | BOLT | 50001- | |
| 27 | 01643-32060 | WASHER | 50001- | |
| 28 | 428-33-11310 | GEAR | 50001- | |
| 29 | 01011-63025 | BOLT | 50001- | |
| 30 | 01643-33080 | WASHER | 50001- | |
| 31 | 428-33-11221 | HUB | 50001- | |
| 32 | 428-33-11910 | O-RING | 50001- | |
| 33 | 01010-62060 | BOLT | 50001- | |
| 34 | 01643-32060 | WASHER | 50001- | |
| 35 | 428-33-11321 | RETAINER | 50001- | |
| 36 | 568-33-11511 | SEAL | 50001- | |
| 37 | 01435-01020 | BOLT | 50001- | |
| 38 | 426-33-11920 | O-RING | 50001- | |
| 428-33-00021 | FLOATING SEAL ASS'Y | 50001- | ||
| 39 | \6\ | RING,SEAL | 50001- | |
| 40 | \6\ | O-RING | 50001- |
