| Item | Part No. | Part Name | Qty | Serial No. |
| (427-22-20001) | AXLE ASS'Y,FRONT | 50001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-07A0. | ||||

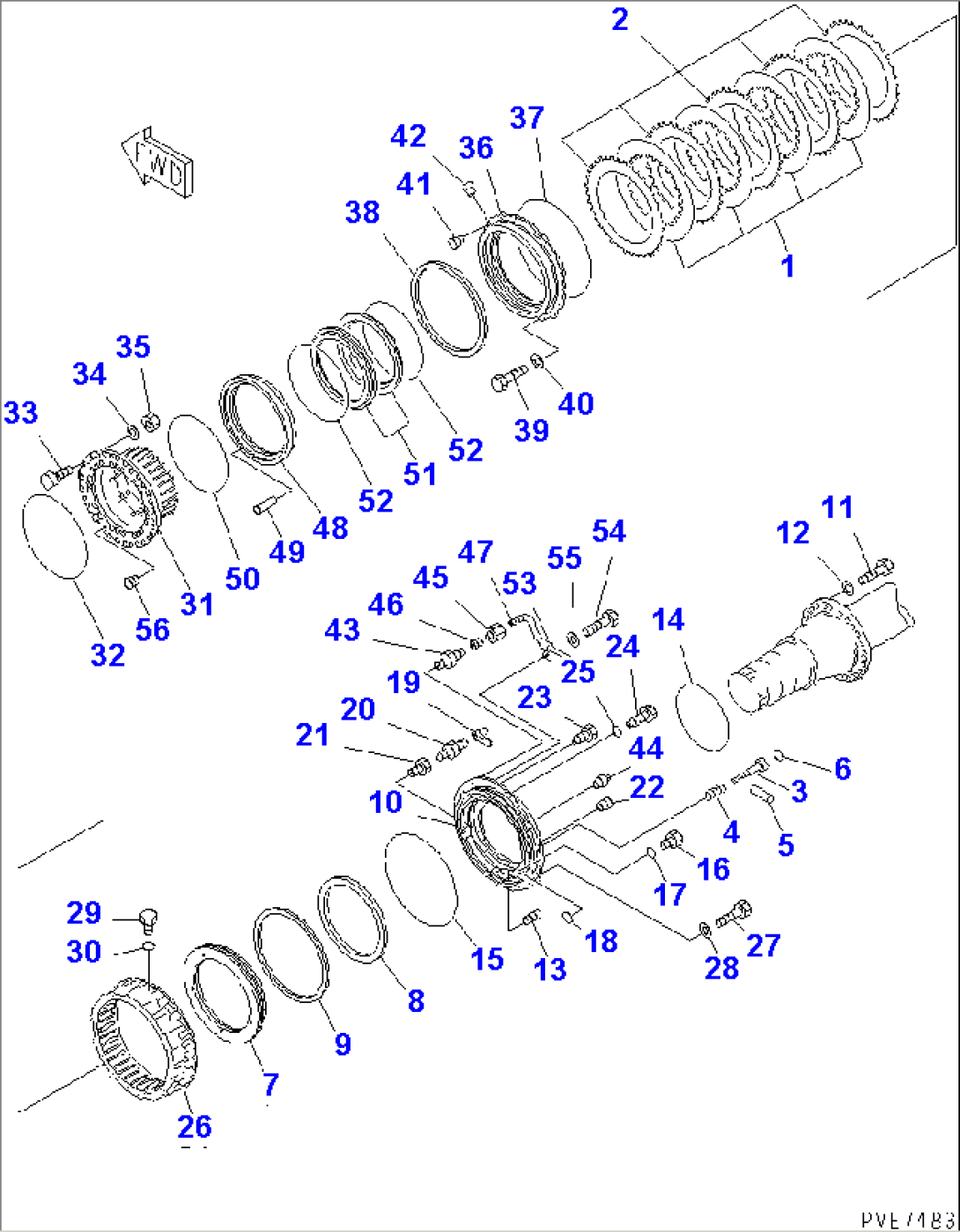

| 427-33-11003 | BRAKE ASS'Y | 50001- | ||
| 1 | 569-33-61240 | DISC | 50001- | |
| 2 | 569-33-41230 | PLATE | 50001- | |
| 3 | 427-33-11611 | GUIDE | 50001- | |
| 4 | 427-33-11621 | SPRING | 50001- | |
| 5 | 706-66-40271 | PIN,DOWEL | 50001- | |
| 6 | 07000-13038 | O-RING | 50001- | |
| 7 | 427-33-11122 | PISTON | 50001- | |
| 8 | 569-33-41951 | SEAL | 50001- | |
| 9 | 568-33-11531 | PACKING | 50001- | |
| 10 | 427-33-11112 | CYLINDER | 50001- | |
| 11 | 01010-62470 | BOLT | 50001- | |
| 12 | 01643-32460 | WASHER | 50001- | |
| 13 | 07049-02025 | PLUG | 50001- | |
| 14 | 07000-15470 | O-RING | 50001- | |
| 15 | 568-33-11430 | O-RING | 50001- | |
| 16 | 07040-11812 | PLUG | 50001- | |
| 17 | 07002-21823 | O-RING | 50001- | |
| 18 | 07000-F3025 | O-RING | 50001- | |
| 19 | 566-32-11620 | CAP | 50001- | |
| 20 | 566-32-11430 | BLEEDER | 50001- | |
| 21 | 581-32-12140 | PLUG | 50001- | |
| 22 | 07043-70211 | PLUG | 50001- | |
| 23 | 287-35-11470 | PLUG | 50001- | |
| 24 | 07040-12414 | PLUG | 50001- | |
| 25 | 07002-12434 | O-RING | 50001- | |
| 26 | 427-33-11210 | GEAR | 50001- | |
| 27 | 01010-62060 | BOLT | 50001- | |
| 28 | 01643-32060 | WASHER | 50001- | |
| 29 | 568-33-11260 | PLUG | 50001- | |
| 30 | 07002-11823 | O-RING | 50001- | |
| 31 | 427-33-11311 | GEAR | 50001- | |
| 32 | 568-22-12810 | O-RING | 50001- | |
| 33 | 427-33-11910 | BOLT | 50001- | |
| 34 | 01643-32060 | WASHER | 50001- | |
| 35 | 01580-02016 | NUT | 50001- | |
| 36 | 427-33-11220 | HUB | 50001- | |
| 37 | 568-33-11430 | O-RING | 50001- | |
| 38 | 568-33-11511 | SEAL | 50001- | |
| 39 | 01010-31445 | BOLT | 50001- | |
| 40 | 01643-31445 | WASHER | 50001- | |
| 41 | 07049-01418 | PLUG | 50001- | |
| 42 | 07043-70108 | PLUG | 50001- | |
| 43 | 07836-00410 | CONNECTOR | 50001- | |
| 44 | 07042-70108 | PLUG | 50001- | |
| 45 | 07832-00410 | NUT | 50001- | |
| 46 | 07831-00411 | SLEEVE | 50001- | |
| 47 | 07822-00401 | TUBE | 50001- | |
| 48 | 427-33-11320 | RETAINER | 50001- | |
| 49 | 04020-01024 | PIN | 50001- | |
| 50 | 56A-46-13480 | O-RING | 50001- | |
| 568-33-00016 | FLOATING SEAL A. | 50001- | ||
| 51 | \6\ | RING | 50001- | |
| 52 | \6\ | O-RING | 50001- | |
| 53 | 08036-10814 | CLIP | 50001- | |
| 54 | 01010-81020 | BOLT | 50001- | |
| 55 | 01643-31032 | WASHER | 50001- | |
| 56 | 07049-01215 | PLUG | 50001- |
