| Item | Part No. | Part Name | Qty | Serial No. |
| 42C-22-10010 | AXLE ASS'Y,FRONT | 50091- | ||
| \0\42C-22-10009 | AXLE ASS'Y,FRONT | 50071-50090 | ||
| \0\42C-22-10008 | AXLE ASS'Y,FRONT | 50061-50070 | ||
| \0\42C-22-10007 | AXLE ASS'Y,FRONT | 50045-50060 | ||
| \0\42C-22-10006 | AXLE ASS'Y,FRONT | 50031-50044 | ||
| \0\42C-22-10005 | AXLE ASS'Y,FRONT | 50016-50030 | ||
| \0\42C-22-10004 | AXLE ASS'Y,FRONT | 50013-50015 | ||
| \0\42C-22-10003 | AXLE ASS'Y,FRONT | .-50012 | ||
| (\2\42C-22-10002) | AXLE ASS'Y,FRONT | (.-50011) | ||
| \0\42C-22-10001 | AXLE ASS'Y,FRONT | 50001-. | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-09A0. | ||||

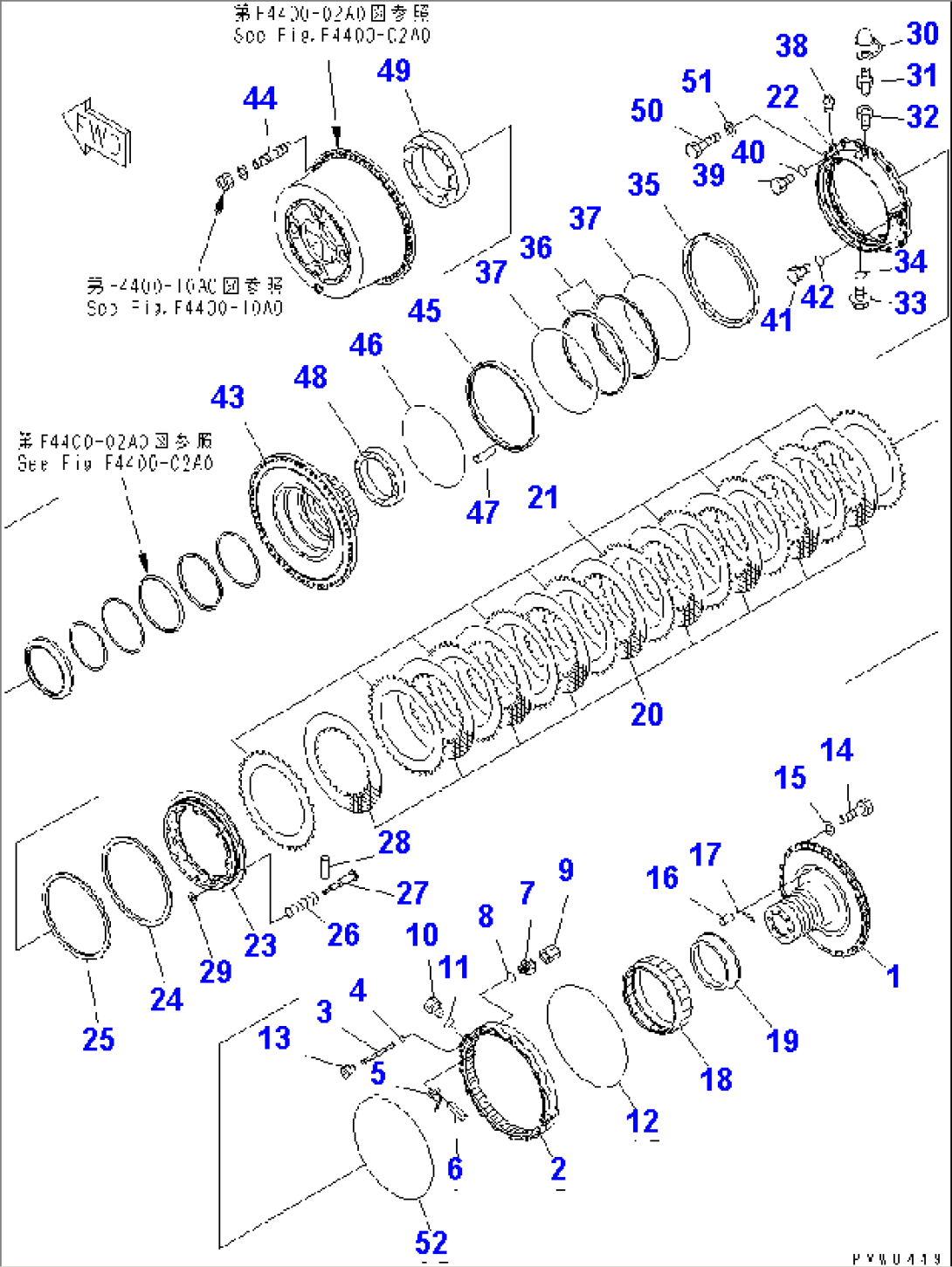

| 42C-22-14006 | FINAL DRIVE ASS'Y,L.H. | 50071- | ||
| \0\42C-22-14005 | FINAL DRIVE ASS'Y,L.H. | 50062-50070 | ||
| \0\42C-22-14004 | FINAL DRIVE ASS'Y,L.H. | 50045-50061 | ||
| \0\42C-22-14003 | FINAL DRIVE ASS'Y,L.H. | 50004-50044 | ||
| (\2\42C-22-14002) | FINAL DRIVE ASS'Y,L.H. | (50004-50011) | ||
| 42C-22-14001 | FINAL DRIVE ASS'Y,L.H. | 50001-50003 | ||
| 1 | 42C-22-13250 | TUBE | 50062- | |
| 1 | \3\42C-22-13240 | TUBE | 50012-50061 | |
| (42C-22-13250,42C-22-12350,423-33-11430) | ||||
| 1 | 42C-22-13231 | TUBE | 50001-50011 | |
| 2 | 42C-33-11231 | GEAR | 50001- | |
| 3 | 42C-33-12110 | SHAFT | 50001- | |
| 4 | 07000-12010 | O-RING | 50001- | |
| 5 | 42C-33-12120 | LEVER | 50001- | |
| 6 | 04025-00412 | PIN,SPRING | 50001- | |
| 7 | 42C-33-12130 | GUIDE | 50001- | |
| 8 | 07002-13034 | O-RING | 50001- | |
| 9 | 42C-33-12141 | CAP | .- | |
| 9 | 42C-33-12140 | CAP | 50001-. | |
| 10 | 42C-33-12150 | PLUG | 50001- | |
| 11 | 07002-12434 | O-RING | 50001- | |
| 12 | 42C-33-11930 | O-RING | 50001- | |
| 13 | 07043-A0312 | PLUG | 50001- | |
| 14 | 01011-62405 | BOLT | 50012- | |
| 14 | 01010-62470 | BOLT | 50001-50011 | |
| 15 | 01643-32460 | WASHER | 50001- | |
| 16 | 175-21-12180 | PIN | 50001- | |
| 17 | 42C-33-11392 | WASHER | 50105- | |
| 17 | \0\42C-33-11391 | WASHER | 50001-50104 | |
| 18 | 42C-33-11313 | GEAR | 50105- | |
| 18 | \0\42C-33-11312 | GEAR | 50001-50104 | |
| 19 | 42C-22-12133 | RETAINER | 50105- | |
| 19 | \0\42C-22-12131 | RETAINER | 50001-50104 | |
| 20 | 562-33-31240 | DISC | 50001- | |
| 21 | 562-33-21231 | PLATE | 50001- | |
| 22 | 42C-33-11244 | CYLINDER | 50001- | |
| 22 | (\2\42C-33-11243) | CYLINDER | (50001-50003) | |
| 23 | 42C-33-11121 | PISTON | 50001- | |
| 24 | 562-33-31941 | SEAL | 50001- | |
| 25 | 562-33-31951 | SEAL | 50001- | |
| 26 | 42C-33-11620 | SPRING | 50001- | |
| 27 | 42C-33-11630 | GUIDE | 50001- | |
| 28 | 42C-33-11640 | PIN,DOWEL | 50001- | |
| 29 | 42C-33-11651 | PLATE | 50001- | |
| 30 | 232-32-11350 | CAP | 50001- | |
| 31 | 566-32-11430 | BLEEDER | 50001- | |
| 32 | 581-32-12140 | PLUG | 50001- | |
| 33 | 07044-12412 | PLUG | 50001- | |
| 34 | 07002-12434 | O-RING | 50001- | |
| 35 | 562-33-11941 | SEAL | 50001- | |
| 42C-33-00020 | FLOATING SEAL ASS'Y | 50093- | ||
| 36 | \6\ | SEAL | 50001- | |
| 37 | \6\ | O-RING | 50001- | |
| 38 | 07042-80211 | PLUG | 50001- | |
| 39 | 07040-11007 | PLUG | 50001- | |
| 40 | 07002-11023 | O-RING | 50001- | |
| 41 | 07040-11812 | PLUG | 50001- | |
| 42 | 07002-11823 | O-RING | 50001- | |
| 43 | 42C-22-12711 | HUB | 50077- | |
| 43 | \0\42C-22-12710 | HUB | 50001-50076 | |
| 44 | 01145-93045 | STUD | 50001- | |
| 45 | 42C-33-11324 | RETAINER | 50077- | |
| 45 | \0\42C-33-11322 | RETAINER | 50001-50076 | |
| 46 | 42C-33-11750 | O-RING | 50001- | |
| 47 | 04020-01024 | PIN,DOWEL | 50001- | |
| 48 | 42C-22-12941 | BEARING | 50001- | |
| 49 | 42C-22-12961 | BEARING | 50001- | |
| 50 | 01010-62480 | BOLT | 50001- | |
| 51 | 01643-32460 | WASHER | 50001- | |
| 52 | 42C-33-11930 | O-RING | 50001- |
