| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-22-10004 | FRONT AXLE ASS'Y | 10001- | |
| 1 | (\2\428-22-10003) | FRONT AXLE ASS'Y | (10077-10101) | |
| 1 | (\2\428-22-10002) | FRONT AXLE ASS'Y | (10001-10076) | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||

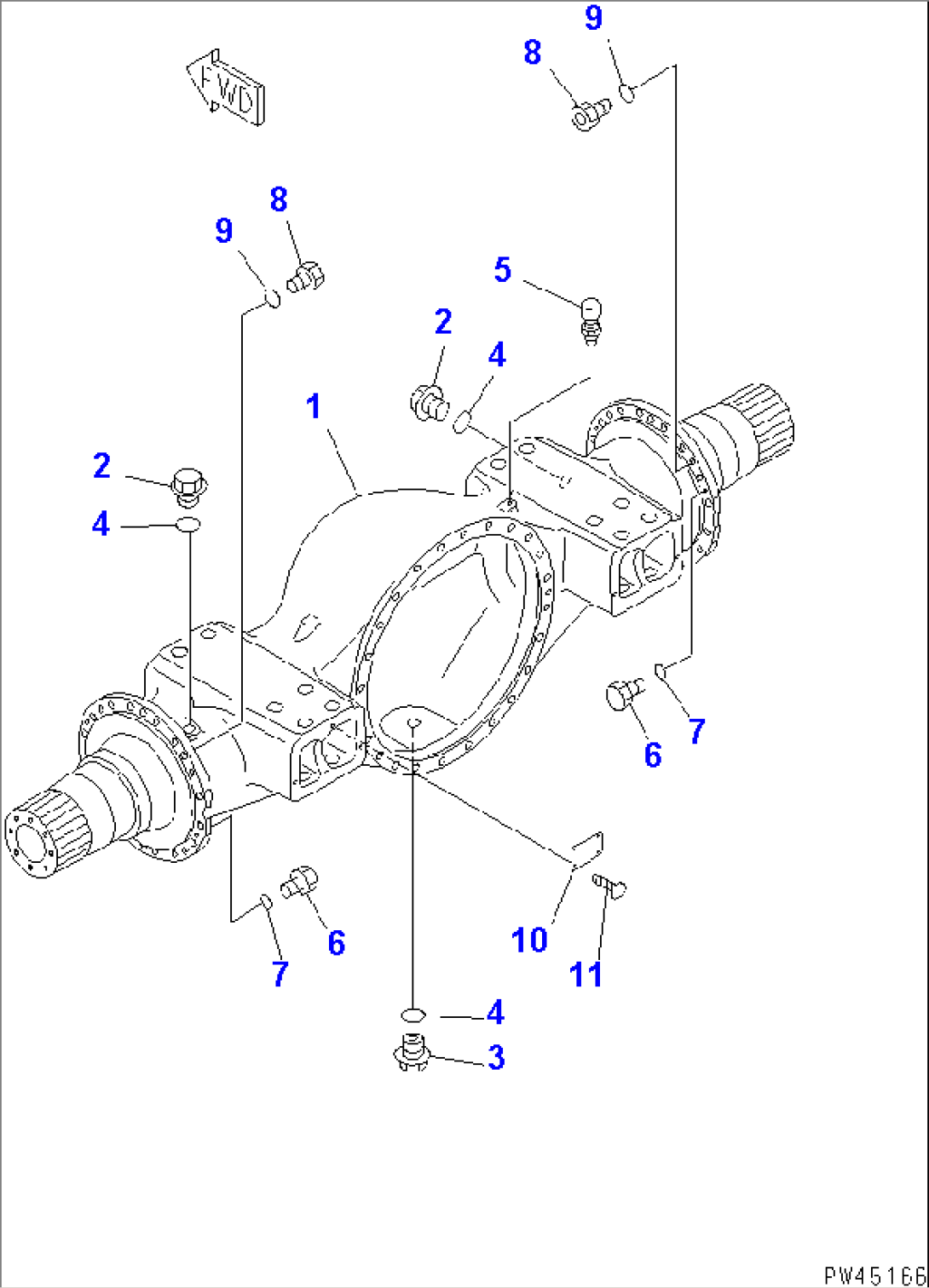

| 1 | 428-22-13002 | HOUSING ASS'Y | 10001- | |
| 1 | 428-22-13102 | HOUSING | 10001- | |
| 2 | 566-16-11351 | PLUG | 10001- | |
| 3 | 07044-13620 | PLUG | 10001- | |
| 4 | 07002-13634 | O-RING (K5) | 10001- | |
| 5 | 07030-01030 | BREATHER | 10001- | |
| 6 | 07040-11007 | PLUG | 10001- | |
| 7 | 07002-11023 | O-RING | 10001- | |
| 8 | 07040-12414 | PLUG | 10001- | |
| 9 | 07002-12434 | O-RING | 10001- | |
| 10 | 815-02-10110 | PLATE, NAME,(LIMITED SUPPLY) | 10001- | |
| 11 | 04418-13060 | SCREW | 10001- |
