| Item | Part No. | Part Name | Qty | Serial No. |
| 425-22-10003 | FRONT AXLE ASS'Y | | 10456-19999 |
| \0\425-22-10002 | FRONT AXLE ASS'Y | | 10268-10455 |
| \0\425-22-10001 | FRONT AXLE ASS'Y | | 10001-10267 |

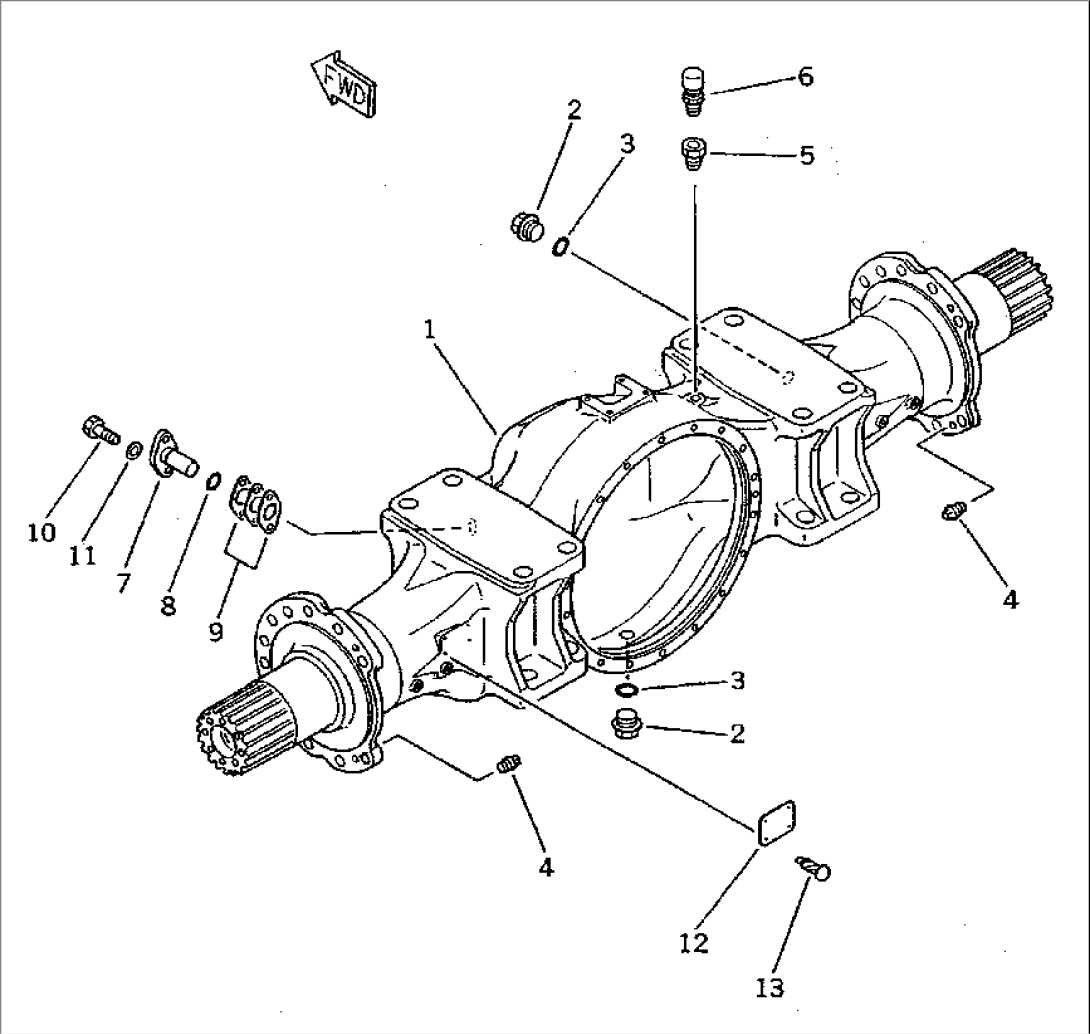

| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | | |
| 425-22-13001 | HOUSING ASS'Y | | 10001-19999 |
| 1 | 425-22-13100 | HOUSING | | 10001-19999 |
| 2 | 07044-13620 | PLUG | | 10001-19999 |
| 3 | 07002-03634 | O-RING | | 10001-19999 |
| 4 | 07042-20312 | PLUG | | 10001-19999 |
| 5 | 07326-10201 | ADAPTER | | 10001-19999 |
| 6 | 07030-01030 | BREATHER | | 10001-@ |
| 7 | 425-22-13510 | SHAFT | | 10001-@ |
| 8 | 07000-03035 | O-RING | | 10001-@ |
| 9 | 425-22-00060 | SHIM KIT | | 10001-@ |
| \6\ | SHIM¤ 0.2MM | | 10001-@ |
| \6\ | SHIM¤ 0.3MM | | 10001-@ |
| \6\ | SHIM¤ 1.0MM | | 10001-@ |
| 10 | 01010-31230 | BOLT | | 10001-@ |
| 11 | 01643-31232 | WASHER | | 10001-@ |
| 12 | 22X-22-13171 | PLATE¤ NAME,(LIMITED SUPPLY) | | .-@ |
| \0\569-22-13291 | PLATE¤ NAME,(LIMITED SUPPLY) | | 10001-. |
| 13 | 04418-03060 | SCREW | | 10001-@ |
