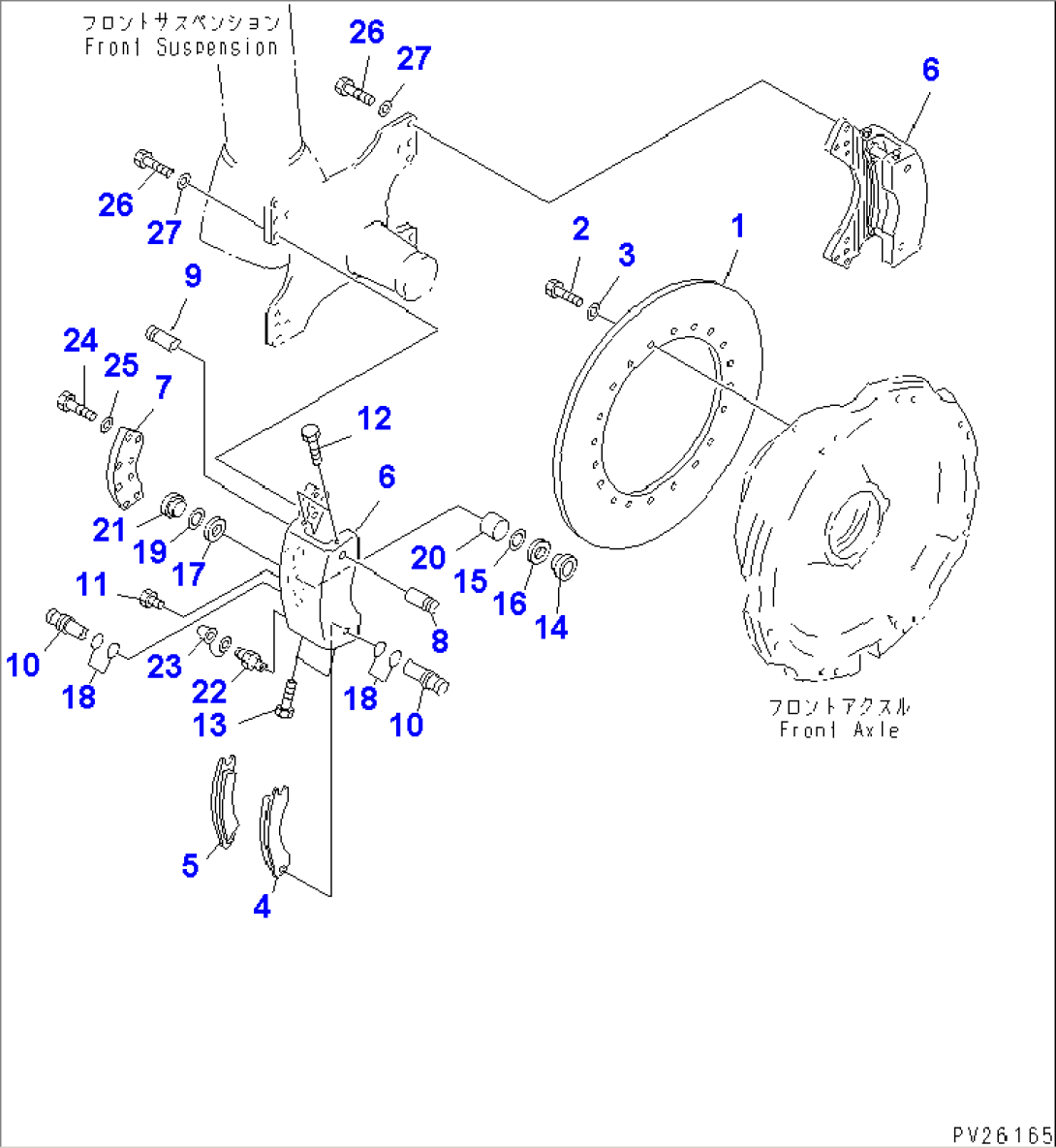

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-27-61311 | DISK | 1021-1052 | |
| 2 | 01010-62470 | BOLT | 1021-1052 | |
| 3 | 01643-32460 | WASHER | 1021-1052 | |
| 561-32-62202 | BRAKE ASS'Y | 1021-1052 | ||
| 566-32-05221 | PAD ASS'Y | 1021-1052 | ||
| 4 | 566-32-53211 | PAD | 1021-1052 | |
| 5 | 566-32-53221 | PAD | 1021-1052 | |
| 6 | 561-32-62230 | PLATE | 1021-1052 | |
| 7 | 566-32-53240 | PLATE | 1021-1052 | |
| 8 | 566-32-53260 | PIN | 1021-1052 | |
| 9 | 561-32-62260 | PIN | 1021-1052 | |
| 10 | 566-32-53280 | PIN | 1021-1052 | |
| 11 | 566-32-53290 | PLUG | 1021-1052 | |
| 12 | 566-32-53310 | BOLT | 1021-1052 | |
| 13 | 566-32-53320 | BOLT | 1021-1052 | |
| 14 | 566-32-53710 | SEAL (K9) | 1021-1052 | |
| 15 | 566-32-53720 | SEAL (K9) | 1021-1052 | |
| 16 | 566-32-53730 | RING (K9) | 1021-1052 | |
| 17 | 566-32-53740 | SEAL (K9) | 1021-1052 | |
| 18 | 566-32-53750 | O-RING | 1021-1052 | |
| 19 | 566-32-53760 | RING (K9) | 1021-1052 | |
| 20 | 566-32-53810 | PISTON | 1021-1052 | |
| 21 | 566-32-53820 | PLUG | 1021-1052 | |
| 22 | 566-32-53860 | BLEEDER | 1021-1052 | |
| 23 | 232-32-11350 | CAP | 1021-1052 | |
| 24 | 566-32-53880 | BOLT | 1021-1052 | |
| 25 | 566-32-53890 | WASHER | 1021-1052 | |
| 26 | 01010-62475 | BOLT | 1021-1052 | |
| 27 | 01643-32460 | WASHER | 1021-1052 |
