| Item | Part No. | Part Name | Qty | Serial No. |
| 561-50-61004 | SUSPENSION ASS'Y | 4001-4164 | ||

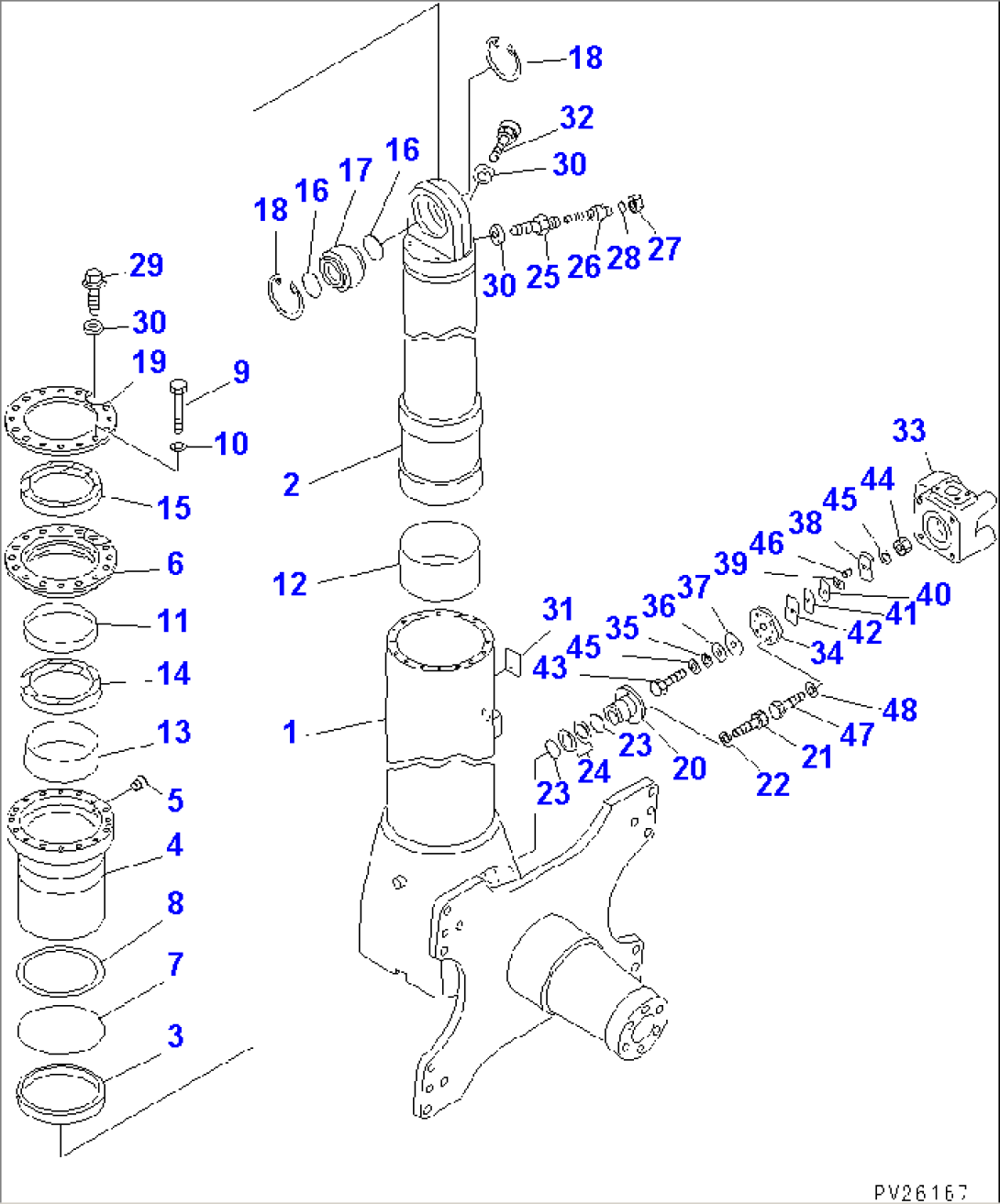

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.S3100-04A1 AND S3100-05A1. | ||||
| 1 | 561-50-61113 | CYLINDER | 4001-4164 | |
| 2 | 561-50-61131 | ROD | 4001-4164 | |
| 3 | 561-50-61411 | STOPPER | 4001-4164 | |
| 4 | 561-50-61143 | FLANGE | 4001-4164 | |
| 5 | 07043-00108 | PLUG | 4001-4164 | |
| 6 | 569-50-11131 | RETAINER | 4001-4164 | |
| 7 | 07000-15210 | O-RING | 4001-4164 | |
| 8 | 07001-05210 | RING | 4001-4164 | |
| 9 | 01010-81290 | BOLT | 4001-4164 | |
| 10 | 01643-51232 | WASHER | 4001-4164 | |
| 11 | 569-50-11340 | BUSHING | 4001-4164 | |
| 12 | 569-50-11271 | RING | 4001-4164 | |
| 13 | 569-50-11220 | BUSHING | 4001-4164 | |
| 14 | 569-50-11230 | U-PACKING | 4001-4164 | |
| 15 | 561-50-61370 | SEAL | 4001-4164 | |
| 16 | 07000-12070 | O-RING | 4001-4164 | |
| 17 | 569-52-41920 | BUSHING | 4001-4164 | |
| 18 | 04065-01104 | RING,SNAP | 4001-4164 | |
| 19 | 569-50-11141 | PLATE | 4001-4164 | |
| 20 | 561-50-61321 | TUBE | 4001-4164 | |
| 21 | 01010-81225 | BOLT | 4001-4164 | |
| 22 | 01643-51232 | WASHER | 4001-4164 | |
| 23 | 07000-13045 | O-RING | 4001-4164 | |
| 24 | 07001-03045 | RING | 4001-4164 | |
| 566-50-11301 | VALVE ASS'Y | 4001-4164 | ||
| 25 | 566-50-11320 | VALVE | 4001-4164 | |
| 26 | 281-50-11721 | CORE | 4001-4164 | |
| 27 | 566-50-11340 | CAP | 4001-4164 | |
| 28 | 07000-11006 | O-RING | 4001-4164 | |
| 29 | 566-50-21260 | VALVE | 4001-4164 | |
| 30 | 566-50-11350 | PACKING | 4001-4164 | |
| 31 | 566-50-41310 | PLATE | 4001-4164 | |
| 32 | 566-50-11271 | VALVE | 4001-4164 | |
| 33 | 569-50-61212 | BODY | 4001-4164 | |
| 34 | 561-50-61331 | PLATE | 4001-4164 | |
| 35 | 569-50-61240 | PLATE | 4001-4164 | |
| 36 | 569-50-61250 | PLATE | 4001-4164 | |
| 37 | 569-50-61260 | PLATE | 4001-4164 | |
| 38 | 569-50-61270 | PLATE | 4001-4164 | |
| 39 | 569-50-61340 | PLATE | 4001-4164 | |
| 40 | 569-50-61350 | PLATE | 4001-4164 | |
| 41 | 569-50-61360 | PLATE | 4001-4164 | |
| 42 | 569-50-61370 | PLATE | 4001-4164 | |
| 43 | 01090-51045 | BOLT | 4001-4164 | |
| 44 | 426-09-11160 | NUT | 4001-4164 | |
| 45 | 561-50-61290 | WASHER | 4001-4164 | |
| 46 | 04020-00514 | PIN | 4001-4164 | |
| 47 | 01010-81030 | BOLT | 4001-4164 | |
| 48 | 01643-51032 | WASHER | 4001-4164 |
