| Item | Part No. | Part Name | Qty | Serial No. |

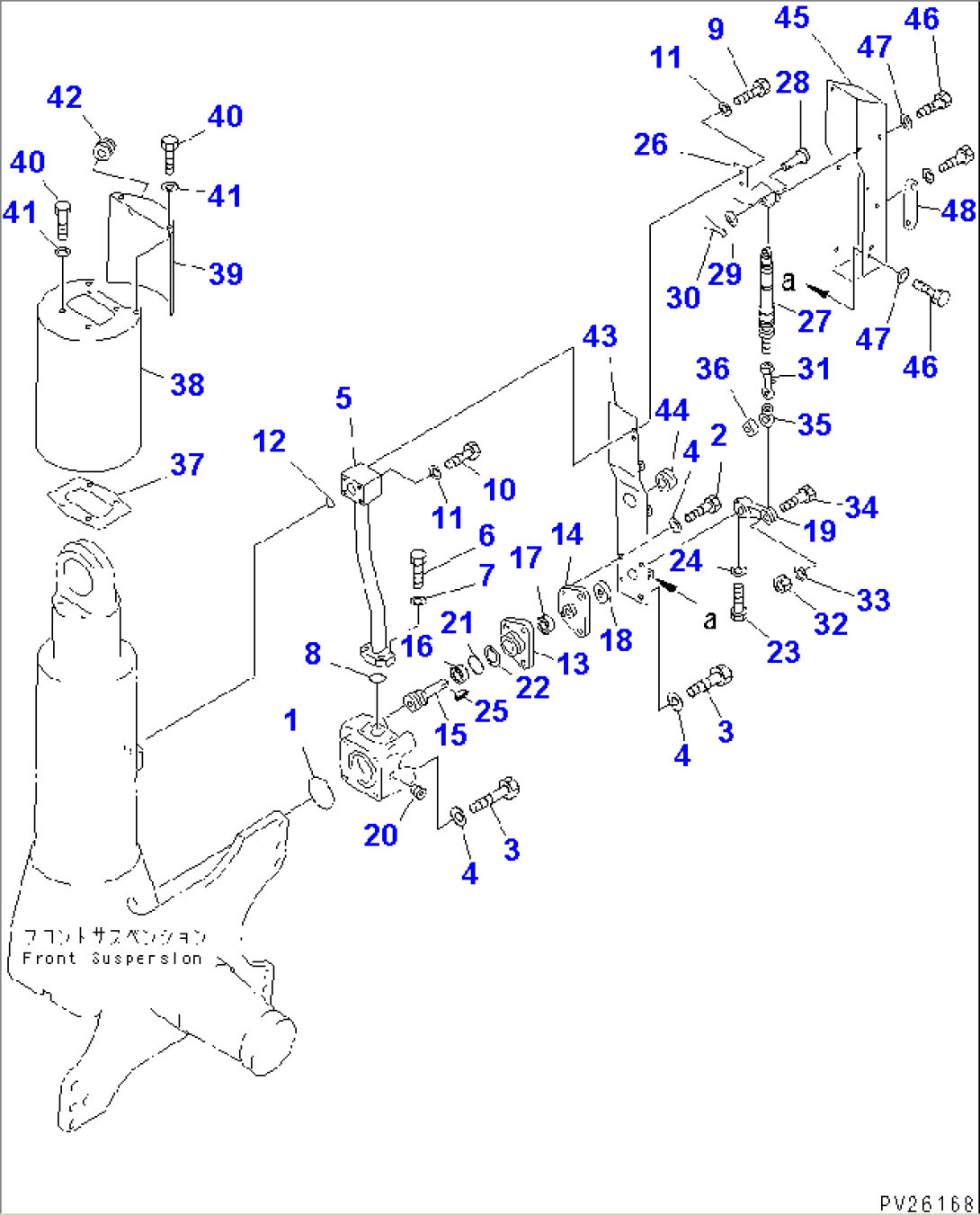

| 561-50-6C500 | FRONT SUSPENSION A.,(AUTO SUS.) | 1021-1052 | ||
| 561-50-6C000 | SUSPENSION ASS'Y,(AUTO SUS AND PAYLOAD PRINT) | 1021-1052 | ||
| 561-50-6F500 | FRONT SUSPENSION A.,(AUTO SUS AND ABS) | 1021-1052 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.S3100-04A0 OR S3100-04A3 OR S3100-04A5 AND S3100-05A0. | ||||
| 1 | 07000-12125 | O-RING | 1021-1052 | |
| 2 | 01010-81655 | BOLT | 1021-1052 | |
| 3 | 01011-61645 | BOLT | 1021-1052 | |
| 4 | 01643-31645 | WASHER | 1021-1052 | |
| 5 | 561-50-63311 | TUBE | 1021-1052 | |
| 6 | 07372-21240 | BOLT | 1021-1052 | |
| 7 | 01643-51232 | WASHER | 1021-1052 | |
| 8 | 07000-13048 | O-RING | 1021-1052 | |
| 9 | 01010-81290 | BOLT | 1021-1052 | |
| 10 | 01010-81285 | BOLT | 1021-1052 | |
| 11 | 01643-31232 | WASHER | 1021-1052 | |
| 12 | 07000-13045 | O-RING | 1021-1052 | |
| 13 | 569-50-63181 | FLANGE | 1021-1052 | |
| 14 | 569-50-63231 | RETAINER | 1021-1052 | |
| 15 | 561-50-63251 | SHAFT | 1021-1052 | |
| 16 | 569-50-63260 | BEARING | 1021-1052 | |
| 17 | 561-50-63270 | U-PACKING | 1021-1052 | |
| 18 | 561-50-63280 | SEAL | 1021-1052 | |
| 19 | 569-50-63311 | LEVER | 1021-1052 | |
| 20 | 07043-70617 | PLUG | 1021-1052 | |
| 21 | 07000-13050 | O-RING | 1021-1052 | |
| 22 | 07001-03050 | RING | 1021-1052 | |
| 23 | 01010-80830 | BOLT | 1021-1052 | |
| 24 | 01643-50823 | WASHER | 1021-1052 | |
| 25 | 04010-00519 | KEY | 1021-1052 | |
| 26 | 561-50-63352 | BRACKET | 1021-1052 | |
| 27 | 569-50-63420 | CYLINDER | 1021-1052 | |
| 28 | 04205-11032 | PIN | 1021-1052 | |
| 29 | 01641-21016 | WASHER | 1021-1052 | |
| 30 | 04050-13020 | PIN | 1021-1052 | |
| 31 | 04250-51056 | END | 1021-1052 | |
| 32 | 426-43-19160 | NUT | 1021-1052 | |
| 33 | 01643-31032 | WASHER | 1021-1052 | |
| 34 | 01010-81040 | BOLT | 1021-1052 | |
| 35 | 566-40-11460 | BOOT | 1021-1052 | |
| 36 | 566-40-11560 | SPACER | 1021-1052 | |
| 37 | 561-50-61191 | RUBBER | 1021-1052 | |
| 38 | 561-50-63171 | COVER | 1021-1052 | |
| 39 | 561-50-63181 | COVER | 1021-1052 | |
| 40 | 01010-81020 | BOLT | 1021-1052 | |
| 41 | 01643-51032 | WASHER | 1021-1052 | |
| 42 | 561-50-63191 | GROMMET | 1021-1052 | |
| 43 | 561-50-63370 | BRACKET | 1021-1052 | |
| 44 | 08037-03614 | GROMMET | 1021-1052 | |
| 45 | 561-50-63341 | COVER | 1021-1052 | |
| 46 | 01010-81020 | BOLT | 1021-1052 | |
| 47 | 01643-31032 | WASHER | 1021-1052 | |
| 48 | 561-50-63320 | PLATE | 1021-1052 |
