| Item | Part No. | Part Name | Qty | Serial No. |
| 561-50-61004 | SUSPENSION ASS'Y | 1021-1052 | ||

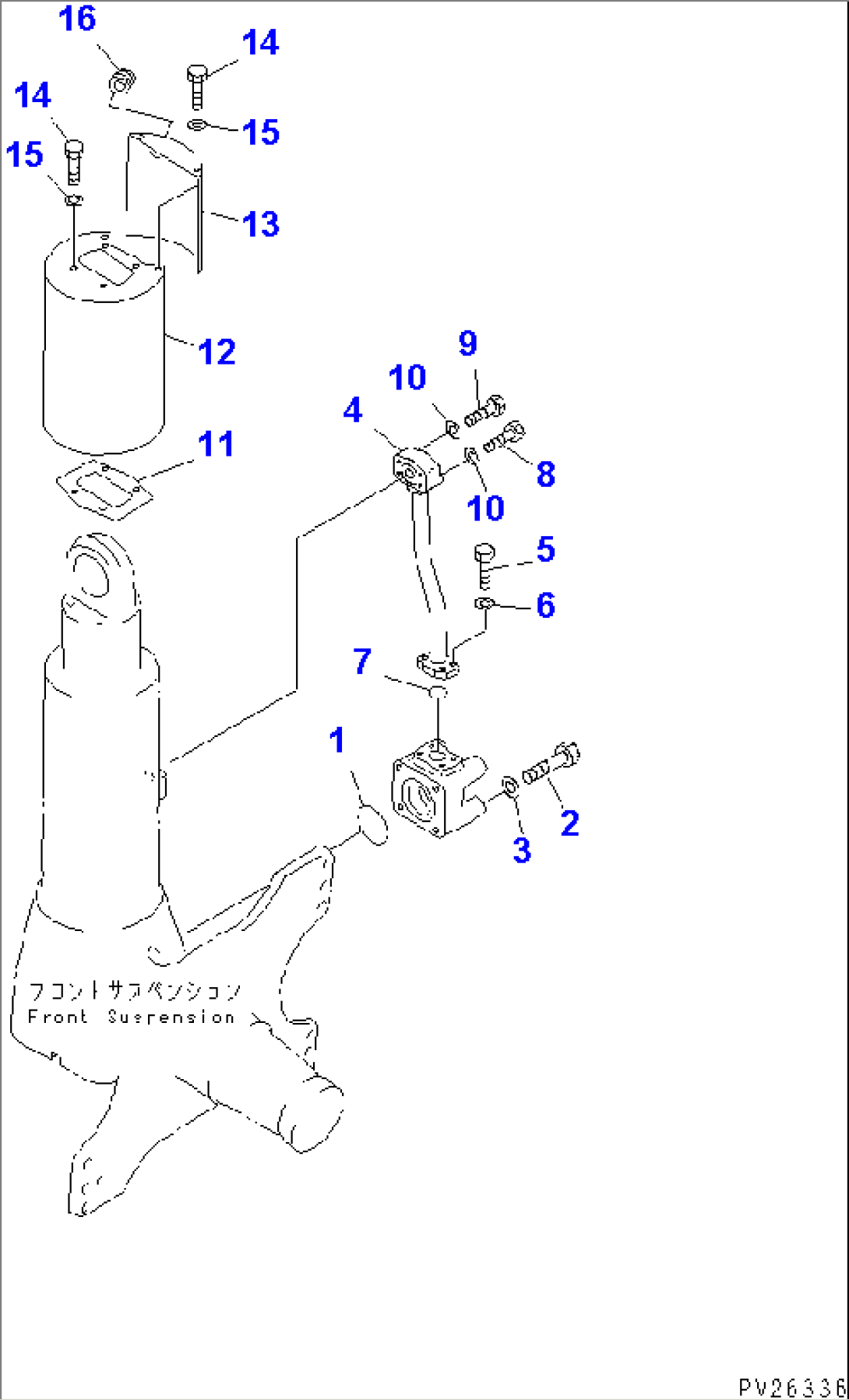

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.S3100-04A2 AND S3100-05A2. | ||||
| 1 | 07000-12125 | O-RING | 1021-1052 | |
| 2 | 01011-61645 | BOLT | 1021-1052 | |
| 3 | 01643-31645 | WASHER | 1021-1052 | |
| 4 | 561-50-61311 | TUBE | 1021-1052 | |
| 5 | 07372-21240 | BOLT | 1021-1052 | |
| 6 | 01643-51232 | WASHER | 1021-1052 | |
| 7 | 07000-13048 | O-RING | 1021-1052 | |
| 8 | 01010-81265 | BOLT | 1021-1052 | |
| 9 | 01010-81255 | BOLT | 1021-1052 | |
| 10 | 01643-31232 | WASHER | 1021-1052 | |
| 11 | 561-50-61191 | RUBBER | 1021-1052 | |
| 12 | 561-50-63171 | COVER | 1021-1052 | |
| 13 | 561-50-63181 | COVER | 1021-1052 | |
| 14 | 01010-81020 | BOLT | 1021-1052 | |
| 15 | 01643-51032 | WASHER | 1021-1052 | |
| 16 | 09415-03614 | CAP | 1021-1052 |
