| Item | Part No. | Part Name | Qty | Serial No. |

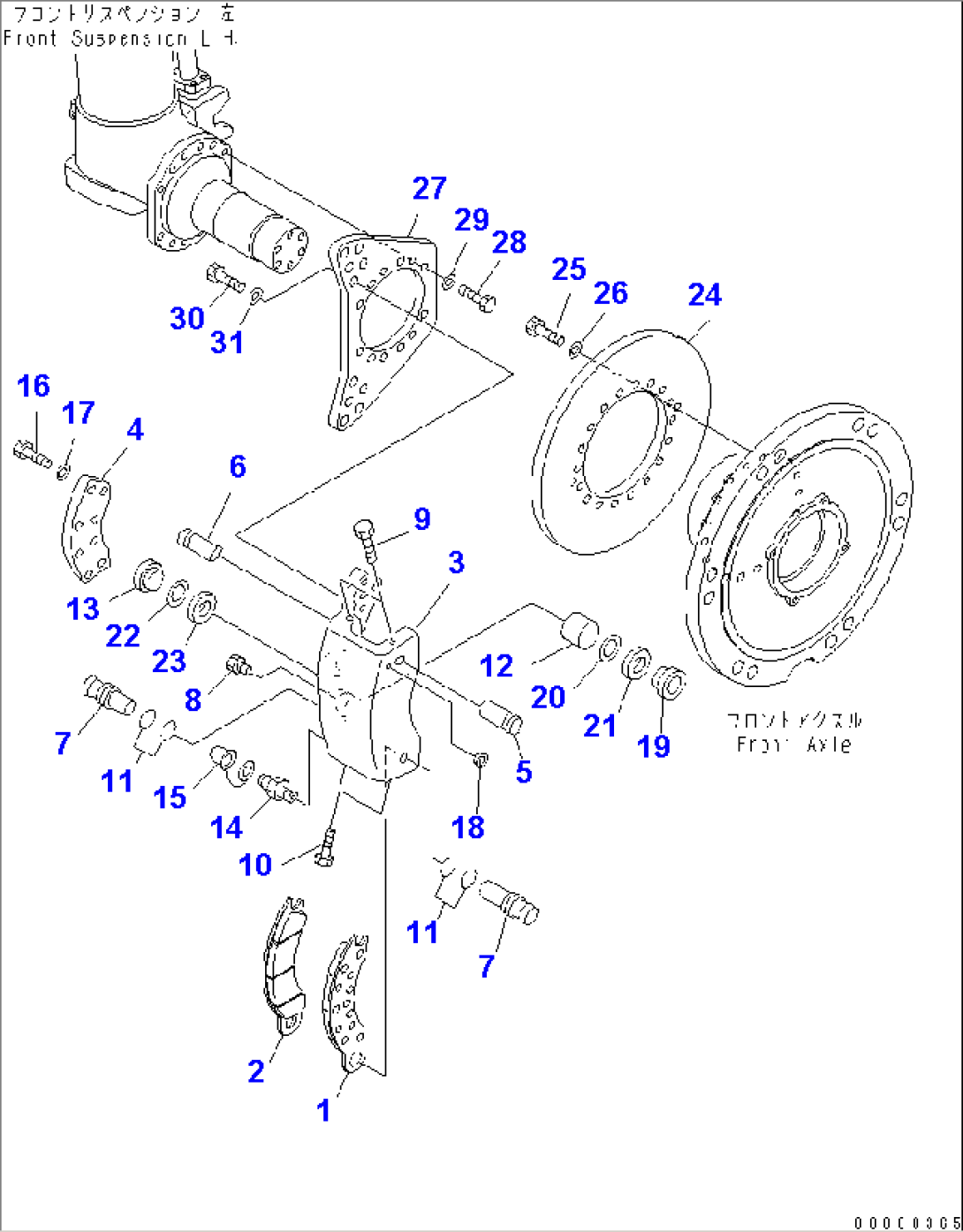

| 566-32-53101 | BRAKE ASS'Y | 7001- | ||
| 566-32-05221 | PAD ASS'Y | 7001- | ||
| 1 | 566-32-53211 | PAD | 7001- | |
| 2 | 566-32-53221 | PAD | 7001- | |
| 3 | 566-32-53230 | PLATE | 7001- | |
| 4 | 566-32-53240 | PLATE | 7001- | |
| 5 | 566-32-53260 | PIN | 7001- | |
| 6 | 566-32-53270 | PIN | 7001- | |
| 7 | 566-32-53281 | PIN | 7001- | |
| 8 | 566-32-53290 | PLUG,(FOR SHIPPING) | 7001- | |
| 9 | 566-32-53310 | BOLT | 7001- | |
| 10 | 566-32-53320 | BOLT | 7001- | |
| 11 | 566-32-53750 | O-RING | 7001- | |
| 12 | 566-32-53810 | PISTON | 7001- | |
| 13 | 566-32-53820 | PLUG | 7001- | |
| 14 | 566-32-53860 | BLEEDER | 7001- | |
| 15 | 232-32-11350 | CAP | 7001- | |
| 16 | 566-32-53880 | BOLT | 7001- | |
| 17 | 566-32-53890 | WASHER | 7001- | |
| 18 | 566-32-53250 | PLUG | 7001- | |
| 566-32-05210 | SERVICE KIT | 7001- | ||
| 19 | \6\ | SEAL | 7001- | |
| 20 | \6\ | SEAL | 7001- | |
| 21 | \6\ | RING | 7001- | |
| 22 | \6\ | RING | 7001- | |
| 23 | \6\ | SEAL | 7001- | |
| 24 | 566-32-51120 | DISC | 7001- | |
| 25 | 01010-62065 | BOLT | 7001- | |
| 26 | 01643-32060 | WASHER | 7001- | |
| 27 | 566-32-51131 | PLATE | 7001- | |
| 28 | 01010-62055 | BOLT | 7001- | |
| 29 | 01602-22060 | WASHER | 7001- | |
| 30 | 01010-62465 | BOLT | 7001- | |
| 31 | 01643-32460 | WASHER | 7001- |
