| Item | Part No. | Part Name | Qty | Serial No. |
| (427-22-20001) | AXLE ASS'Y,FRONT | 50001- | ||
| (427-22-20070) | AXLE ASS'Y | 50001- | ||

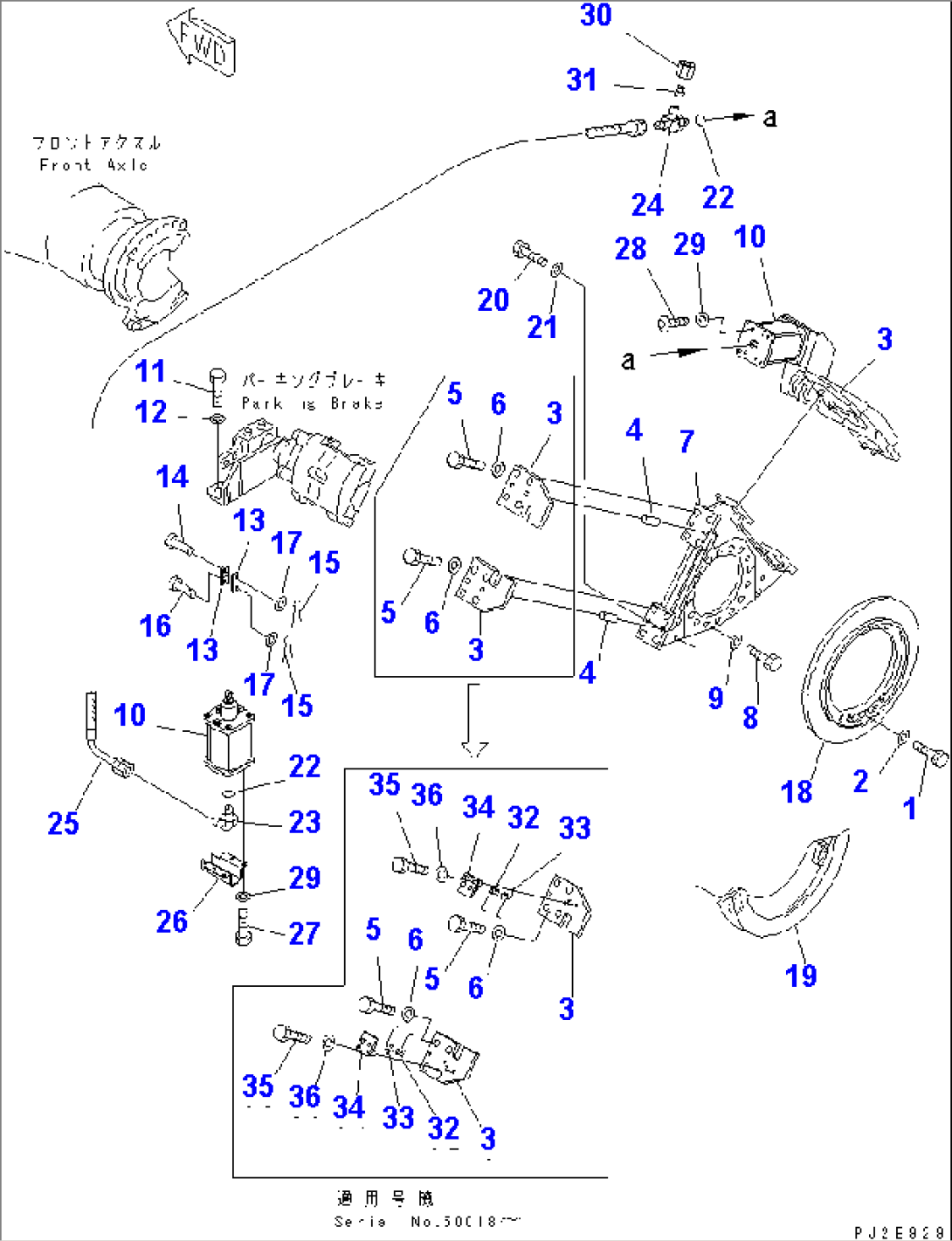

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-07A0. | ||||
| \6\ | PARKING BRAKE ASS'Y | 50018- | ||
| \6\ | PARKING BRAKE ASS'Y | 50001-50017 | ||
| 1 | 01010-62055 | BOLT | 50001- | |
| 2 | 01643-32060 | WASHER | 50001- | |
| 3 | 426-32-25371 | PLATE | 50018- | |
| 426-32-25321 | PLATE | 50001-50017 | ||
| 4 | 175-21-12180 | PIN | 50001- | |
| 5 | 01010-62455 | BOLT | 50001- | |
| 6 | 01643-32460 | WASHER | 50001- | |
| 7 | 427-32-25310 | BRACKET | 50001- | |
| 8 | 01010-62055 | BOLT | 50001- | |
| 9 | 01643-32060 | WASHER | 50001- | |
| 10 | 426-32-25502 | SPRING CYLINDER | 50001- | |
| 11 | 01010-31635 | BOLT | .- | |
| \1\01010-61635 | BOLT | 50001-. | ||
| 12 | 01643-31645 | WASHER | 50001- | |
| 13 | 426-32-25331 | PLATE | 50001- | |
| 14 | 425-32-15340 | PIN | 50001- | |
| 15 | 04050-13022 | PIN,COTTER | 50001- | |
| 16 | 04205-11245 | PIN | 50001- | |
| 17 | 01640-21323 | WASHER | 50001- | |
| 18 | 427-32-15410 | DISC | 50001- | |
| 19 | 427-32-15421 | COVER | 50001- | |
| 20 | 01010-81245 | BOLT | 50001- | |
| 21 | 01643-31232 | WASHER | 50001- | |
| 22 | 07002-12034 | O-RING | 50001- | |
| 23 | 07235-10315 | ELBOW | 50001- | |
| 24 | 427-32-25521 | TEE | 50001- | |
| 25 | 427-32-25531 | HOSE | 50001- | |
| 26 | 427-32-25541 | COVER | 50001- | |
| 27 | 01010-61020 | BOLT | 50001- | |
| 28 | 01245-01016 | SCREW | 50001- | |
| 29 | 01643-31032 | WASHER | 50001- | |
| 30 | 07221-20422 | NUT | 50001- | |
| 31 | 07222-00414 | PLUG | 50001- | |
| 32 | 426-32-25342 | SPRING | 50018- | |
| 33 | 426-32-25352 | SPRING | 50018- | |
| 34 | 426-32-25362 | BRACKET | 50018- | |
| 35 | 01010-81260 | BOLT | 50018- | |
| 36 | 01643-31232 | WASHER | 50018- |
