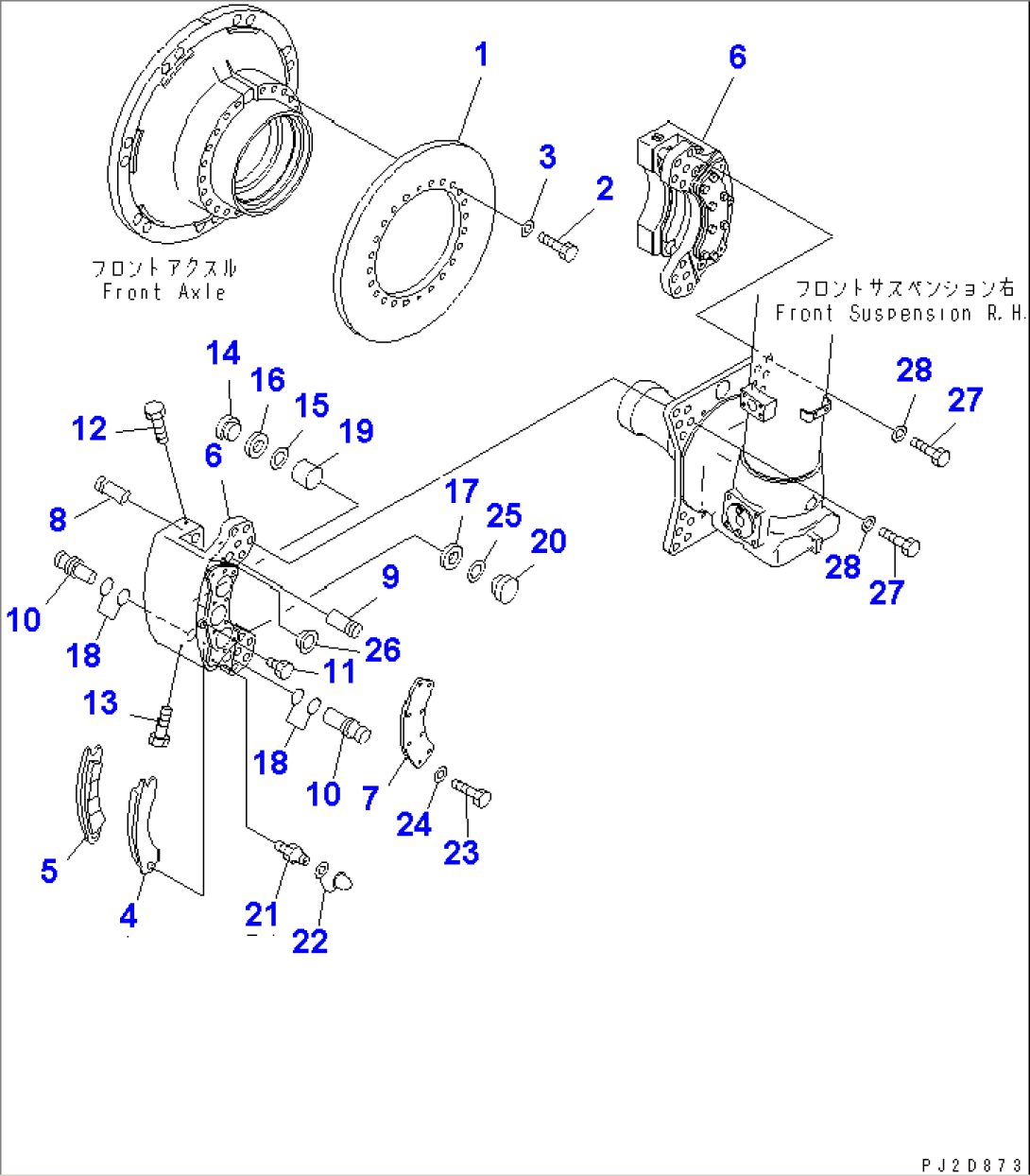

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-27-71310 | DISK | 7001- | |
| 2 | 01010-62070 | BOLT | 7001- | |
| 3 | 01643-32060 | WASHER | 7001- | |
| 566-32-53101 | BRAKE ASS'Y | 7001- | ||
| 566-32-05221 | PAD ASS'Y | 7001- | ||
| 4 | \6\ | PAD | 7001- | |
| 5 | \6\ | PAD | 7001- | |
| 6 | \6\ | PLATE | 7001- | |
| 7 | 566-32-53240 | PLATE | 7001- | |
| 8 | 566-32-53260 | PIN | 7001- | |
| 9 | 566-32-53270 | PIN | 7001- | |
| 10 | 566-32-53281 | PIN | 7001- | |
| 11 | 566-32-53290 | PLUG,(FOR SHIPPING) | 7001- | |
| 12 | 566-32-53310 | BOLT | 7001- | |
| 13 | 566-32-53320 | BOLT | 7001- | |
| 14 | \6\ | SEAL KIT | 7001- | |
| 15 | \6\ | SEAL KIT | 7001- | |
| 16 | \6\ | RING KIT | 7001- | |
| 17 | \6\ | SEAL KIT | 7001- | |
| 18 | 566-32-53750 | O-RING | 7001- | |
| 19 | 566-32-53810 | PISTON | 7001- | |
| 20 | 566-32-53820 | PLUG | 7001- | |
| 21 | 566-32-53860 | BLEEDER | 7001- | |
| 22 | 232-32-11350 | CAP | 7001- | |
| 23 | 566-32-53880 | BOLT | 7001- | |
| 24 | 566-32-53890 | WASHER | 7001- | |
| 25 | \6\ | RING KIT | 7001- | |
| 26 | 566-32-53250 | PLUG | 7001- | |
| 27 | 01010-62470 | BOLT | 7001- | |
| 28 | 01643-32460 | WASHER | 7001- | |
| SERVICE KIT | ||||
| 566-32-05211 | SERVICE KIT | 7001- |
