| Item | Part No. | Part Name | Qty | Serial No. |
| 569-50-8T301 | CYLINDER ASS'Y,FRONT SUSPENSION | 7148- | ||
| \0\569-50-8T300 | CYLINDER ASS'Y,FRONT SUSPENSION | 7084-7147 | ||
| \1\569-50-83001 | CYLINDER ASS'Y,FRONT SUSPENSION | 7001-7083 | ||

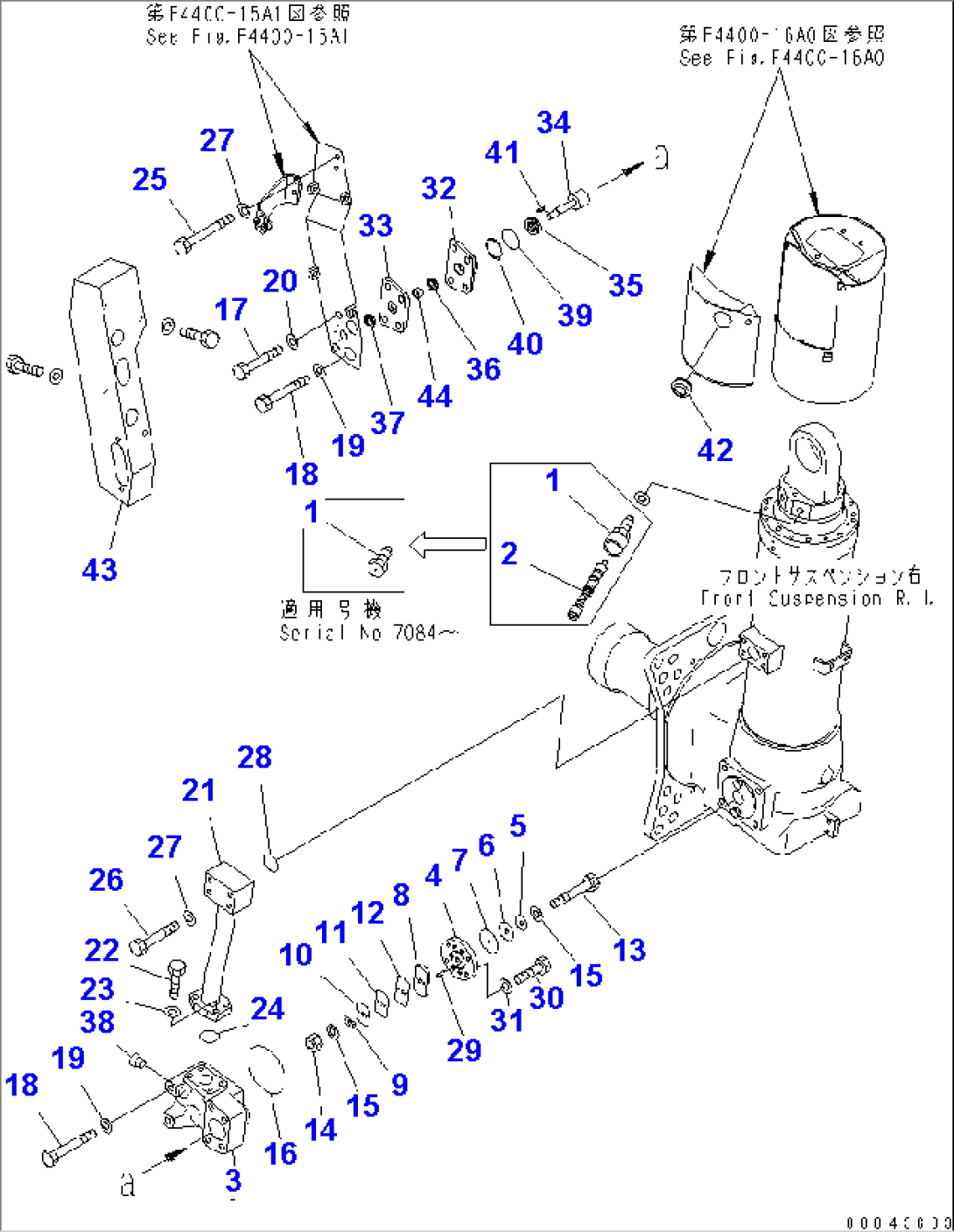

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-14A1 TO F4400-16A0. | ||||
| 1 | 566-50-11271 | VALVE | 7034- | |
| 1 | 561-86-67700 | VALVE ASS'Y | 7001-7083 | |
| 1 | 561-86-67710 | VALVE | 7001-7083 | |
| 2 | 281-50-11721 | CORE,VALVE | 7001-7083 | |
| 3 | 569-50-83210 | BODY | 7001- | |
| 4 | 561-50-63331 | PLATE | 7001- | |
| 5 | 569-50-61240 | PLATE | 7001- | |
| 6 | 569-50-61250 | PLATE | 7001- | |
| 7 | 569-50-61260 | PLATE | 7001- | |
| 8 | 569-50-61270 | PLATE | 7001- | |
| 9 | 569-50-61340 | PLATE | 7001- | |
| 10 | 569-50-61350 | PLATE | 7001- | |
| 11 | 569-50-61360 | PLATE | 7001- | |
| 12 | 569-50-61370 | PLATE | 7001- | |
| 13 | 01090-51045 | BOLT | 7001- | |
| 14 | 426-09-11160 | NUT | 7001- | |
| 15 | 561-50-61290 | WASHER | 7001- | |
| 16 | 07000-12125 | O-RING | 7001- | |
| 17 | 01010-81655 | BOLT | 7001- | |
| 18 | 01011-61645 | BOLT | 7001- | |
| 19 | 01643-31645 | WASHER | 7001- | |
| 20 | 01643-31645 | WASHER | 7001- | |
| 21 | 569-50-81310 | TUBE | 7001- | |
| 22 | 07372-21240 | BOLT | 7001- | |
| 23 | 01643-51232 | WASHER | 7001- | |
| 24 | 07000-13048 | O-RING | 7001- | |
| 25 | 01010-81290 | BOLT | 7001- | |
| 26 | 01010-81280 | BOLT | 7001- | |
| 27 | 01643-31232 | WASHER | 7001- | |
| 28 | 07000-13045 | O-RING | 7001- | |
| 29 | 04020-00514 | PIN,DOWEL | 7001- | |
| 30 | 01010-81030 | BOLT | 7001- | |
| 31 | 01643-31032 | WASHER | 7001- | |
| 32 | 569-50-63182 | FLANGE | 7001- | |
| 33 | 569-50-63232 | RETAINER | 7001- | |
| 34 | 569-50-83250 | SHAFT | 7001- | |
| 35 | 569-50-63260 | BEARING | 7001- | |
| 36 | 561-50-63271 | U-PACKING | 7001- | |
| 37 | 561-50-63280 | SEAL,DUST | 7001- | |
| 38 | 07043-70617 | PLUG | 7001- | |
| 39 | 07000-13050 | O-RING | 7001- | |
| 40 | 07001-03050 | RING,BACK-UP | 7001- | |
| 41 | 04010-00519 | KEY | 7001- | |
| 42 | 561-50-63191 | GROMMET | 7001- | |
| 43 | 569-50-83380 | COVER | 7001- | |
| 44 | 569-50-63361 | BUSHING | 7259- | |
| 44 | \1\569-50-63360 | BUSHING | 7001-7258 |
