| Item | Part No. | Part Name | Qty | Serial No. |
| 569-50-8T401 | CYLINDER ASS'Y,SUSPENSION | 7148- | ||
| \0\569-50-8T400 | CYLINDER ASS'Y,SUSPENSION | 7084-7147 | ||
| 569-50-81000 | CYLINDER ASS'Y,SUSPENSION | 7001-7083 | ||

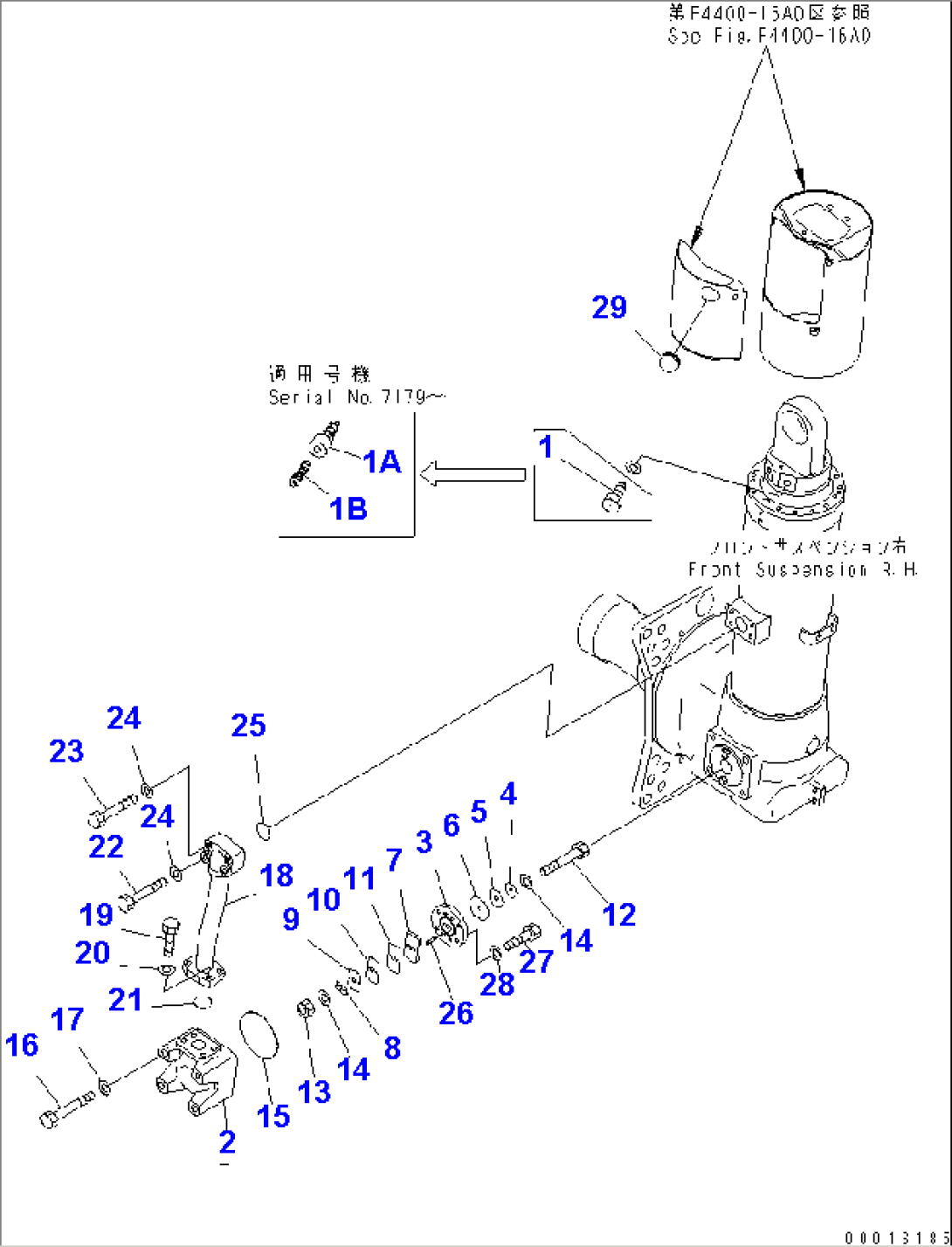

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-14A0 AND F4400-16A0. | ||||
| 1 | 561-86-67700 | VALVE ASS'Y | 7084- | |
| 1 | 566-50-11271 | VALVE | 7001-7083 | |
| 1A | 561-86-67710 | VALVE | 7084- | |
| 1B | 281-50-11721 | CORE,VALVE | 7084- | |
| 2 | 569-50-81210 | BODY | 7001- | |
| 3 | 561-50-61331 | PLATE | 7084- | |
| 3 | 561-50-63331 | PLATE | 7001-7083 | |
| 4 | 569-50-61240 | PLATE | 7001- | |
| 5 | 569-50-61250 | PLATE | 7001- | |
| 6 | 569-50-61260 | PLATE | 7001- | |
| 7 | 569-50-61270 | PLATE | 7001- | |
| 8 | 569-50-61340 | PLATE | 7001- | |
| 9 | 569-50-61350 | PLATE | 7001- | |
| 10 | 569-50-61360 | PLATE | 7001- | |
| 11 | 569-50-61370 | PLATE | 7001- | |
| 12 | 01090-51045 | BOLT | 7001- | |
| 13 | 426-09-11160 | NUT | 7001- | |
| 14 | 561-50-61290 | WASHER | 7001- | |
| 15 | 07000-12125 | O-RING | 7001- | |
| 16 | 01011-61645 | BOLT | 7001- | |
| 17 | 01643-31645 | WASHER | 7001- | |
| 18 | 569-50-81290 | TUBE | 7001- | |
| 19 | 07372-21240 | BOLT | 7001- | |
| 20 | 01643-51232 | WASHER | 7001- | |
| 21 | 07000-13048 | O-RING | 7001- | |
| 22 | 01010-81290 | BOLT | 7001- | |
| 23 | 01010-81280 | BOLT | 7001- | |
| 24 | 01643-31232 | WASHER | 7001- | |
| 25 | 07000-13045 | O-RING | 7001- | |
| 26 | 04020-00514 | PIN,DOWEL | 7001- | |
| 27 | 01010-81030 | BOLT | 7001- | |
| 28 | 01643-31032 | WASHER | 7001- | |
| 29 | 561-50-63191 | GROMMET | 7084- | |
| 29 | 09415-03614 | CAP | 7001-7083 |
