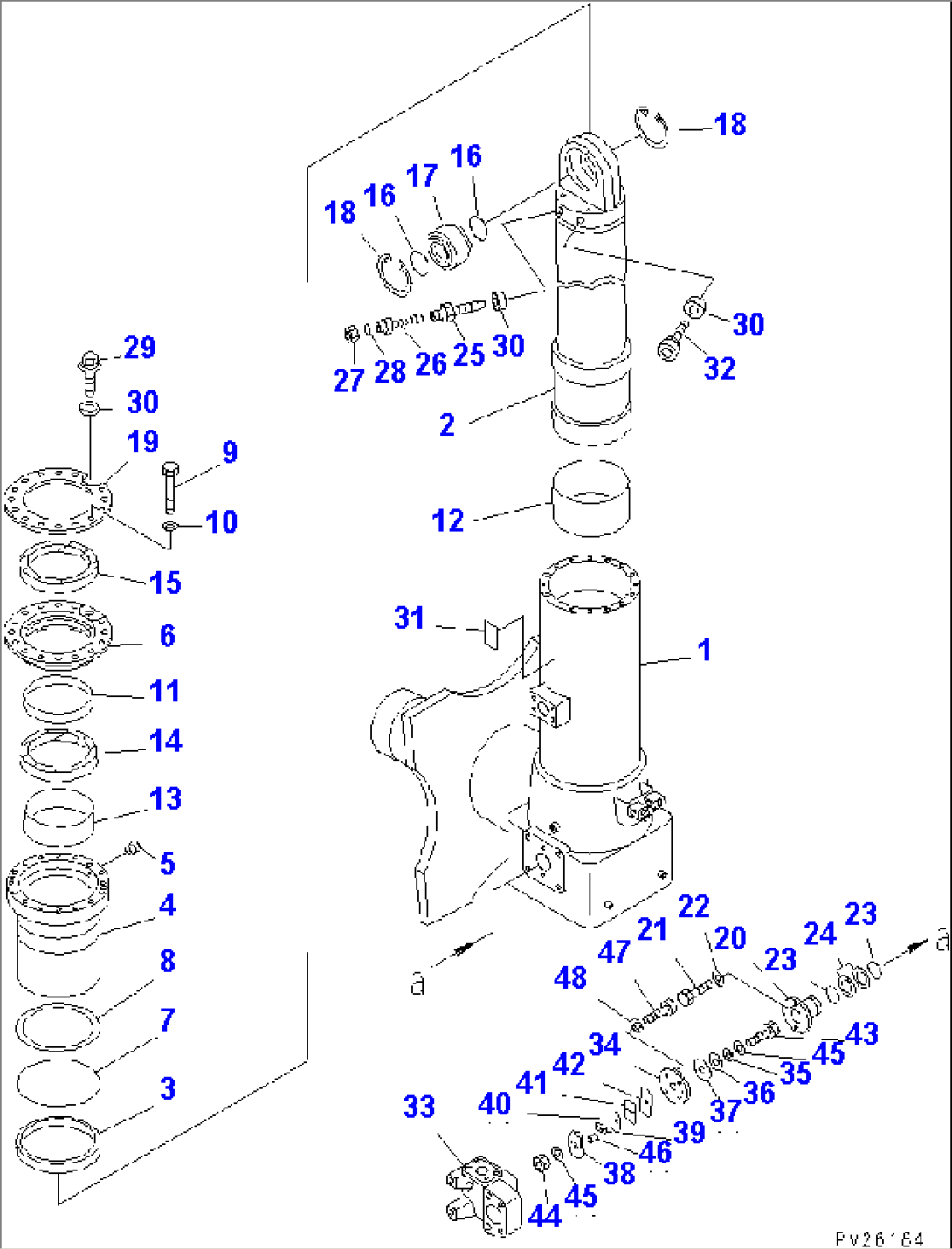

FRONT AXLE (RIGHT HAND) (FRONT SUSPENSION ASS'Y) (1/2) (AUTO SUSPENSION) (NEW SENSOR TYPE)(#4165-)

Item	Part No.	Part Name	Qty	Serial No.
	561-50-63500	FRONT SUSPENSION A.		4165-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-13A0 AND F4400-14A0.
1	561-50-61114	CYLINDER		4188-
	\0\561-50-61113	CYLINDER		4165-4187
2	561-50-61131	ROD		4165-
3	561-50-61411	STOPPER		4165-
4	561-50-61143	FLANGE		4165-
5	07043-00108	PLUG		4165-
6	569-50-11131	RETAINER		4165-
7	07000-15210	O-RING		4165-
8	07001-05210	RING		4165-
9	01010-81290	BOLT		4165-
10	01643-51232	WASHER		4165-
11	569-50-11340	BUSHING		4165-
12	569-50-11271	RING		4165-
13	569-50-11220	BUSHING		4165-
14	569-50-11230	U-PACKING		4165-
15	561-50-61370	SEAL		4165-
16	07000-12070	O-RING		4165-
17	569-52-41920	BUSHING		4165-
18	04065-01104	RING,SNAP		4165-
19	569-50-11141	PLATE		4165-
20	561-50-61321	TUBE		4165-
21	01010-81225	BOLT		4165-
22	01643-51232	WASHER		4165-
23	07000-13045	O-RING		4165-
24	07001-03045	RING		4165-
	566-50-11301	VALVE ASS'Y		4165-
25	566-50-11320	VALVE		4165-
26	281-50-11721	CORE		4165-
27	566-50-11340	CAP		4165-
28	07000-11006	O-RING		4165-
29	566-50-21260	VALVE		4165-
30	566-50-11350	PACKING		4165-
31	566-50-41310	PLATE		4165-
32	561-86-67700	VALVE ASS'Y		4165-
33	569-50-63212	BODY		4165-
34	561-50-63331	PLATE		4165-
35	569-50-61240	PLATE		4165-
36	569-50-61250	PLATE		4165-
37	569-50-61260	PLATE		4165-
38	569-50-61270	PLATE		4165-
39	569-50-61340	PLATE		4165-
40	569-50-61350	PLATE		4165-
41	569-50-61360	PLATE		4165-
42	569-50-61370	PLATE		4165-
43	01090-51045	BOLT		4165-
44	426-09-11160	NUT		4165-
45	561-50-61290	WASHER		4165-
46	04020-00514	PIN		4165-
47	01010-81030	BOLT		4165-
48	01643-51032	WASHER		4165-
