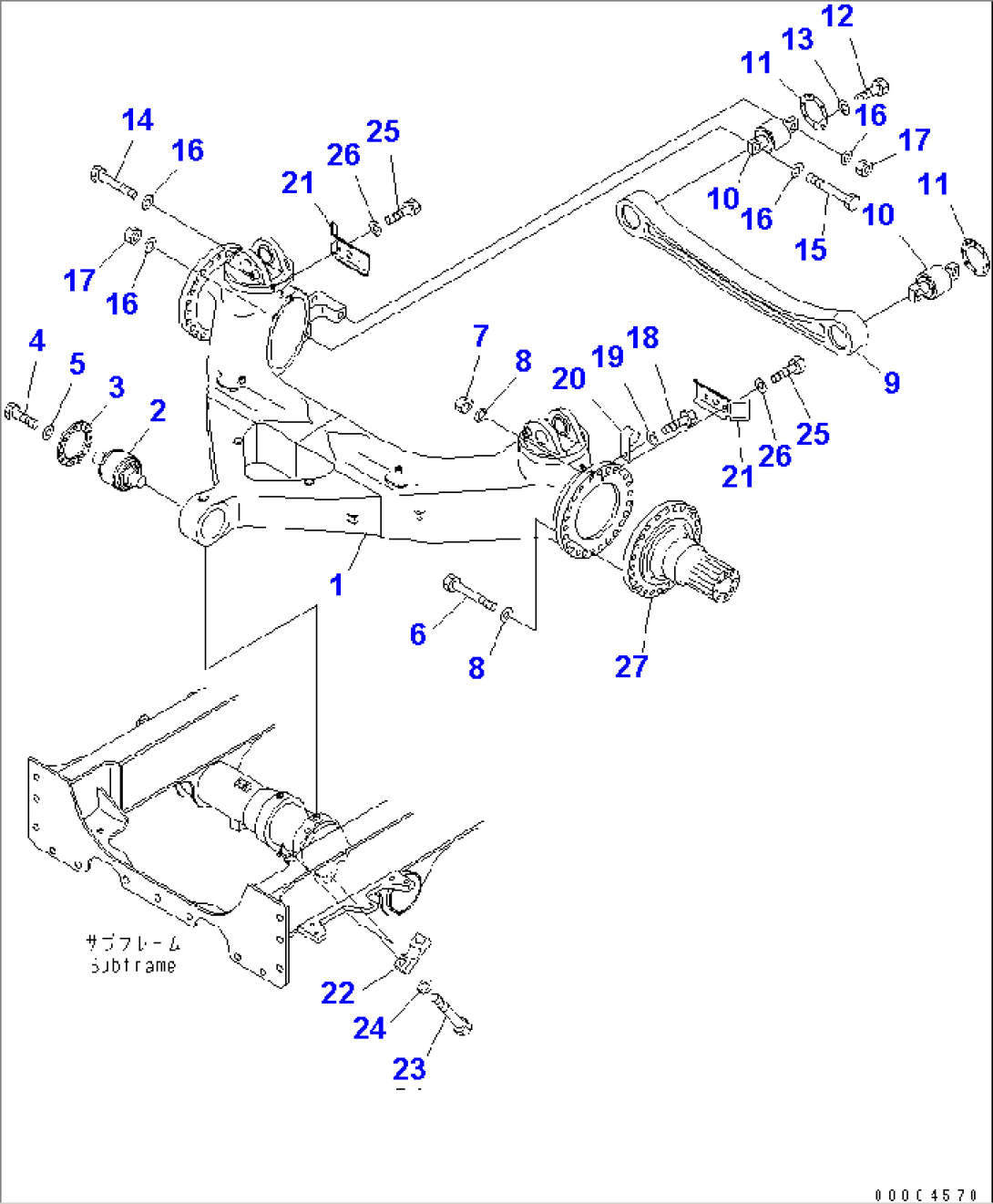

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-50-11112 | ARM | A10001- | |
| 2 | 56B-50-12331 | BEARING | A10001- | |
| 3 | 56B-50-12811 | PLATE | A10001- | |
| 4 | 01010-81230 | BOLT | A10001- | |
| 5 | 01643-31232 | WASHER | A10001- | |
| 6 | 01011-62000 | BOLT | A10001- | |
| 7 | 01580-02016 | NUT | A10001- | |
| 8 | 01643-32060 | WASHER | A10001- | |
| 9 | 56C-50-11131 | ROD | A10001- | |
| 10 | 56B-50-12341 | BEARING | A10001- | |
| 11 | 56B-50-12240 | PLATE | A10001- | |
| 12 | 01010-81025 | BOLT | A10001- | |
| 13 | 01643-31032 | WASHER | A10001- | |
| 14 | 419-09-11130 | BOLT | A10001- | |
| 15 | 56B-50-11150 | BOLT | A10001- | |
| 16 | 01643-32460 | WASHER | A10001- | |
| 17 | 01580-12419 | NUT | A10001- | |
| 18 | 01010-81016 | BOLT | A10001- | |
| 19 | 01640-21016 | WASHER | A10001- | |
| 20 | 08036-10614 | CLIP | A10001- | |
| 21 | 56C-50-11140 | PROTECTOR | A10001- | |
| 22 | 56B-50-12150 | PLATE | A10001- | |
| 23 | 01010-82475 | BOLT | A10001- | |
| 24 | 01643-32460 | WASHER | A10001- | |
| 25 | 01010-81225 | BOLT | A10001- | |
| 26 | 01643-31232 | WASHER | A10001- | |
| 27 | TUBE,(SEE FIG. F3360-01A0) | A10001- |
