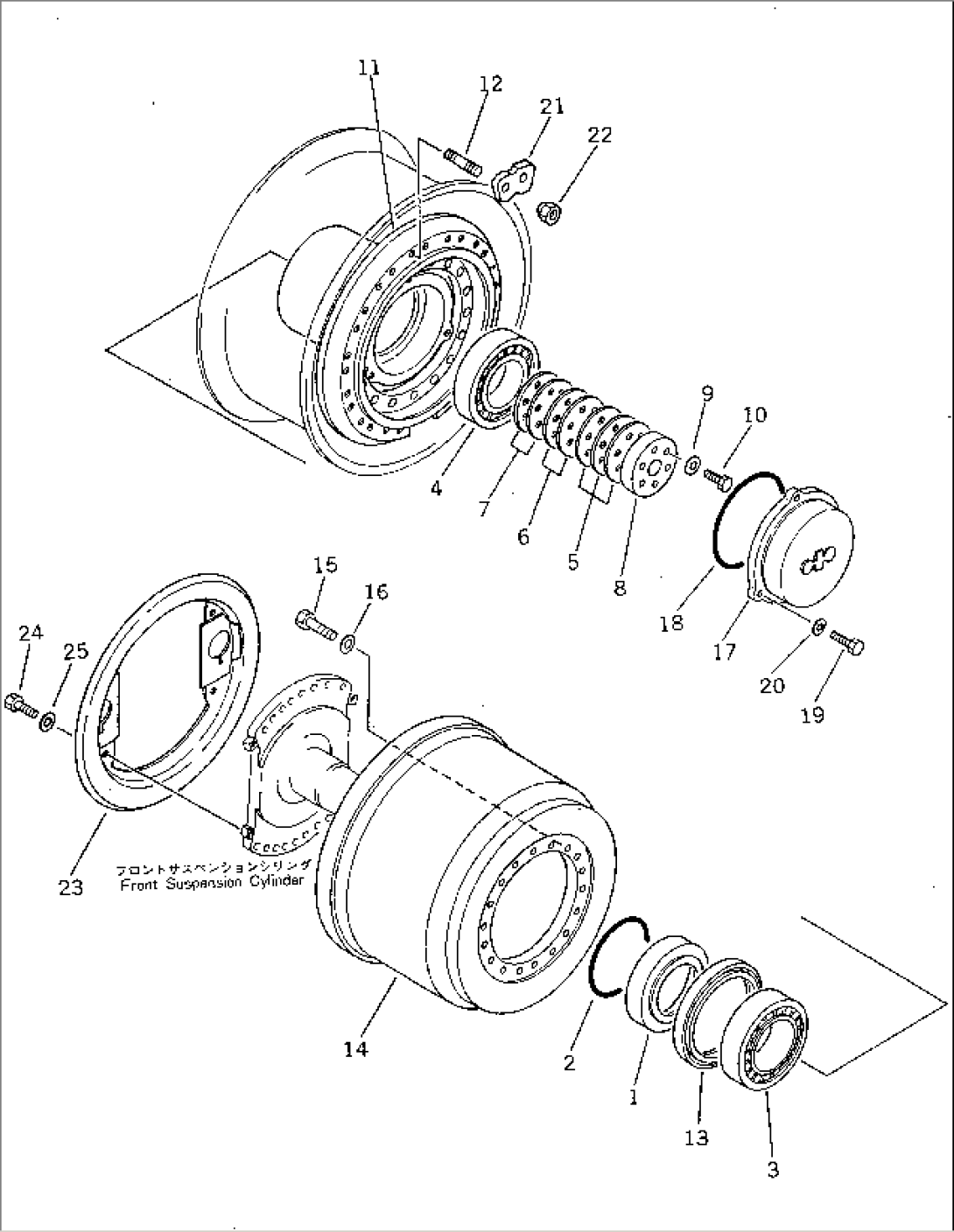

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-30-11003 | FRONT AXLE ASS'Y | 2001-2136 | ||
| 1 | 569-30-11161 | RETAINER | 2001-@ | |
| 2 | 07000-05250 | O-RING (K6) | 2001-@ | |
| 3 | 06000-32232 | BEARING,ROLLER, INNER | 2001-@ | |
| 4 | 06000-32228 | BEARING,ROLLER, OUTER | 2001-@ | |
| 569-30-00010 | SHIM ASS'Y | 2001-@ | ||
| 5 | \6\ | SHIM, 0.2MM | 2001-@ | |
| 6 | \6\ | SHIM, 0.3MM | 2001-@ | |
| 7 | \6\ | SHIM, 1.0MM | 2001-@ | |
| 8 | 569-30-11210 | RETAINER | 2001-@ | |
| 9 | 01643-32060 | WASHER | 2001-@ | |
| 10 | 01010-62055 | BOLT | 2001-@ | |
| 569-30-00024 | HUB ASS'Y | 2001-2136 | ||
| 11 | 569-30-11123 | HUB | 2001-2136 | |
| 12 | 569-30-42910 | STUD | 2001-@ | |
| 13 | 569-30-11410 | SEAL,OIL (K6) | 2001-@ | |
| 14 | 569-27-41310 | DRUM | 2001-2136 | |
| 15 | 01010-62475 | BOLT | 2001-2136 | |
| 16 | 01643-32460 | WASHER | 2001-2136 | |
| 17 | 569-30-11130 | COVER,FRONT WHEEL | 2001-@ | |
| 18 | 07000-05270 | O-RING (K6) | 2001-@ | |
| 19 | 01010-51235 | BOLT | 2001-@ | |
| 20 | 01643-31232 | WASHER | 2001-@ | |
| 21 | 568-30-12210 | CLAMP | 2001-@ | |
| 22 | 569-22-42920 | NUT | 2001-@ | |
| 23 | 569-81-22910 | PLATE,BACK | 2001-@ | |
| 24 | 01010-31225 | BOLT | 2001-2136 | |
| 25 | 01643-31232 | WASHER | 2001-2136 |
