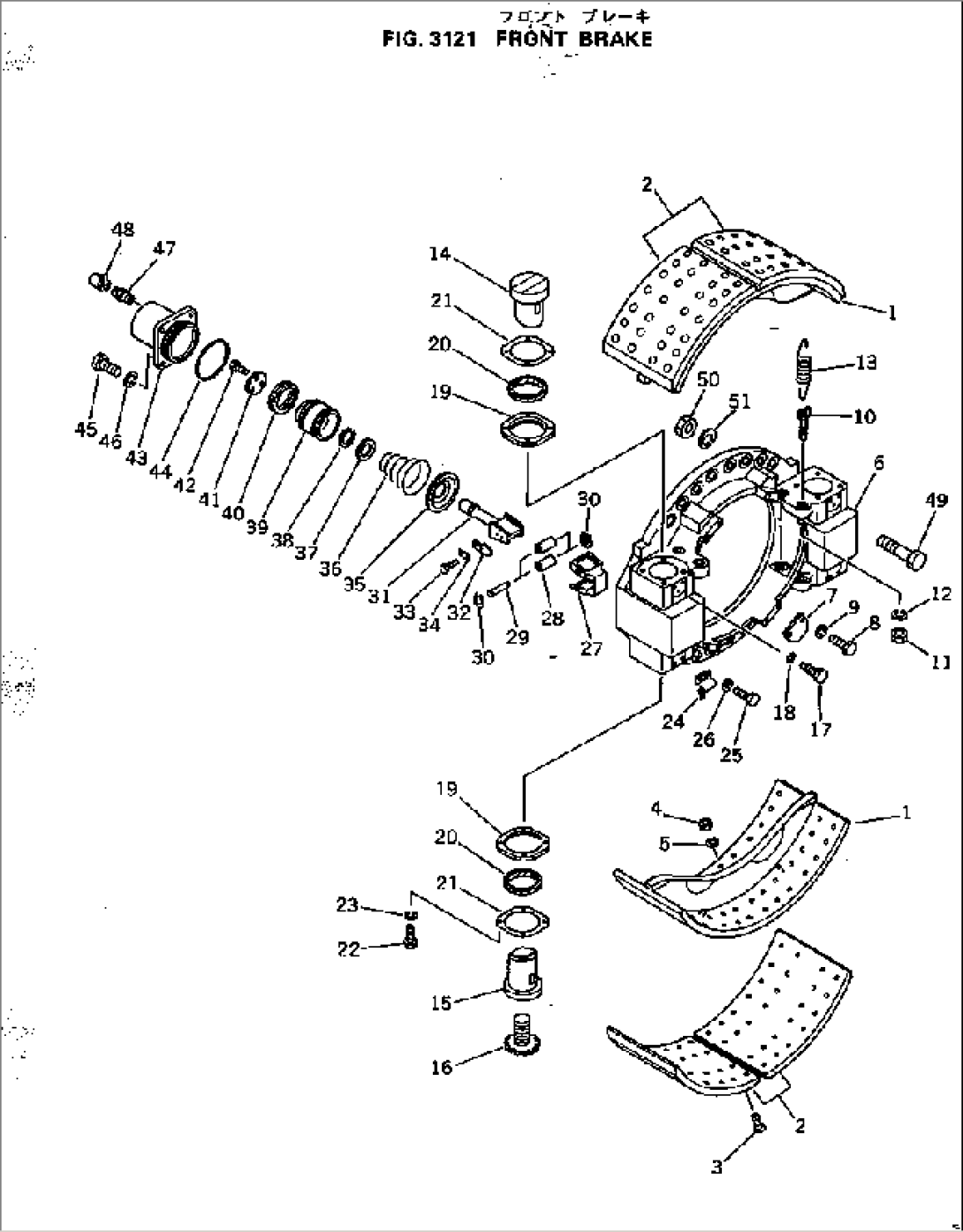

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-32-11001 | BRAKE ASS'Y | 1501- | ||
| 568-32-11111 | SHOE ASS'Y | 1501- | ||
| 1 | 568-32-11121 | SHOE | 1501- | |
| 2 | 568-32-11131 | LINING | 1501- | |
| 3 | 581-32-11551 | BOLT | 1501- | |
| 4 | 01582-11008 | NUT | 1501- | |
| 5 | 01602-21030 | WASHER | 1501- | |
| 6 | 568-32-11212 | FLANGE | 1501- | |
| 7 | 568-32-11230 | PLATE | 1501- | |
| 8 | 01010-51030 | BOLT | 1501- | |
| 9 | 01602-21030 | WASHER | 1501- | |
| 10 | 568-32-11610 | BOLT | 1501- | |
| 11 | 01580-11210 | NUT | 1501- | |
| 12 | 01602-21236 | WASHER | 1501- | |
| 13 | 568-32-11161 | SPRING | 1501- | |
| 14 | 568-32-11313 | PISTON | 1501- | |
| 15 | 568-32-11324 | PISTON | 1501- | |
| 16 | 568-32-11333 | ADJUSTER | 1501- | |
| 17 | 566-32-11630 | BOLT | 1501- | |
| 18 | 07000-02010 | O-RING (KIT) | 1501- | |
| 19 | 568-32-11670 | GLAND | 1501- | |
| 20 | 568-32-11660 | SEAL (KIT) | 1501- | |
| 21 | 568-32-11680 | PLATE | 1501- | |
| 22 | 01010-50625 | BOLT | 1501- | |
| 23 | 01602-20619 | WASHER | 1501- | |
| 24 | 565-32-13373 | STOPPER | 1501- | |
| 25 | 01010-50816 | BOLT | 1501- | |
| 26 | 01602-20825 | WASHER | 1501- | |
| 27 | 581-32-11280 | SUPPORT | 1501- | |
| 28 | 581-32-11262 | ROLLER | 1501- | |
| 29 | 581-32-11270 | PIN | 1501- | |
| 30 | 04064-01010 | RING | 1501- | |
| 31 | 581-32-11210 | WEDGE | 1501- | |
| 32 | 581-32-11530 | STOPPER | 1501- | |
| 33 | 01010-50816 | BOLT | 1501- | |
| 34 | 04081-03510 | LOCK (KIT) | 1501- | |
| 35 | 581-32-11730 | RETAINER | 1501- | |
| 36 | 581-32-11230 | SPRING | 1501- | |
| 37 | 581-32-11240 | SPACER | 1501- | |
| 38 | 581-32-11250 | RING | 1501- | |
| 39 | 568-32-11423 | PISTON | 1501- | |
| 40 | 568-32-11720 | PACKING (KIT) | 1501- | |
| 41 | 568-32-11430 | RETAINER | 1501- | |
| 42 | 01010-50616 | BOLT | 1501- | |
| 43 | 568-32-11413 | CYLINDER | 1501- | |
| 44 | 07000-05100 | O-RING (KIT) | 1501- | |
| 45 | 01010-81645 | BOLT | 1501- | |
| 46 | 01602-21648 | WASHER | 1501- | |
| 47 | 566-32-11430 | BLEEDER | 1501- | |
| 48 | 566-32-11620 | CAP | 1501- | |
| 49 | 01090-62485 | BOLT | 1501- | |
| 50 | 01582-12419 | NUT | 1501- | |
| 51 | 01602-22472 | WASHER | 1501- |
