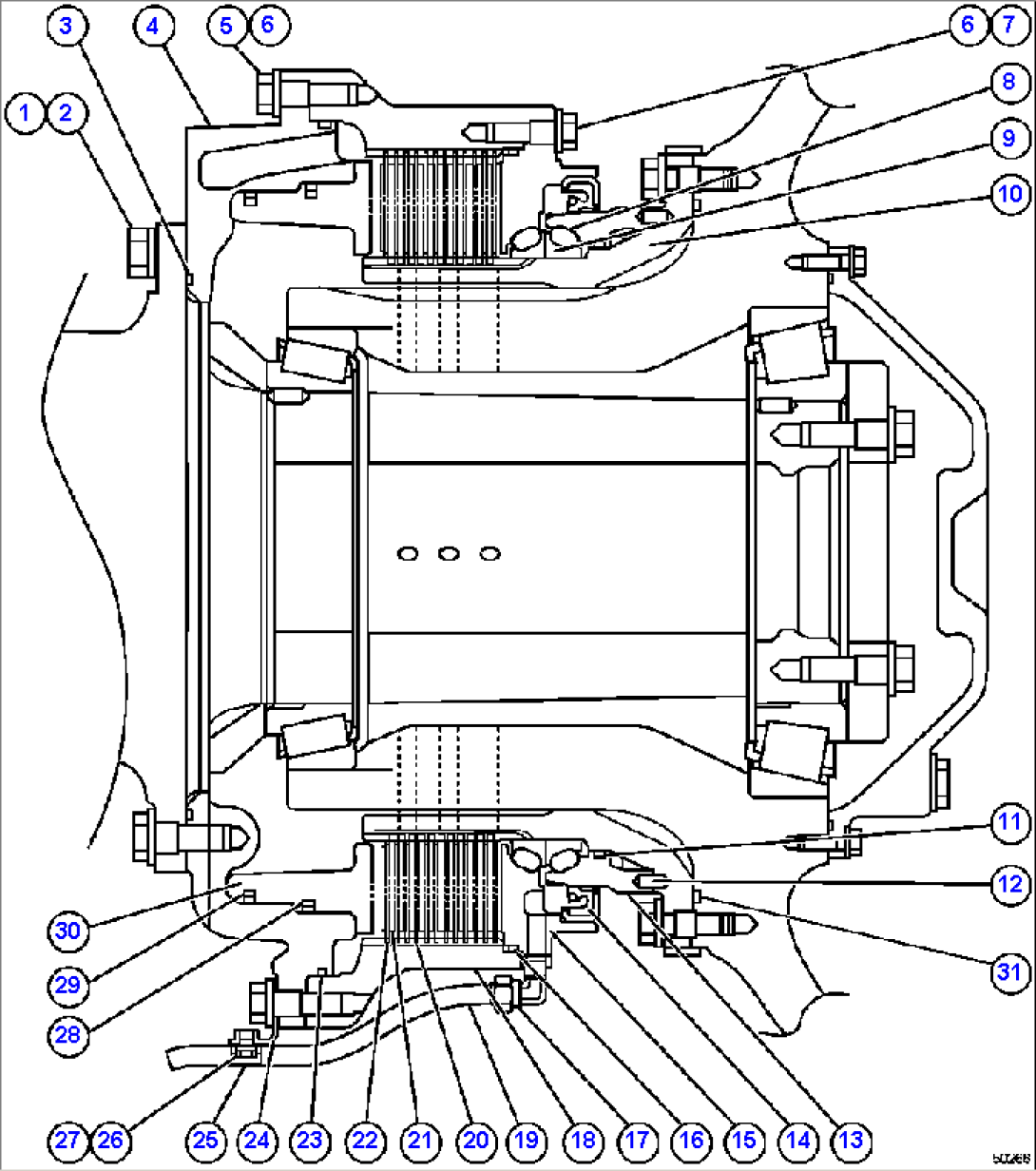

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-62470 | CAPSCREW - M24 (1) | ||
| 2 | 01643-32460 | FLAT WASHER - M24 (1) | ||
| 3 | 07000-15455 | O-RING (1) | ||
| 4 | 562-33-32110 | CYLINDER (HOUSING) | ||
| 5 | 01010-62065 | CAPSCREW - M20 | ||
| 6 | 01643-32060 | FLAT WASHER - M20 | ||
| 7 | 01010-62060 | CAPSCREW - M20 | ||
| 8 | 428-33-11650 | O-RING (2) | ||
| 9 | 568-33-11364 | SEAL (2) | ||
| 10 | 562-33-32311 | GEAR | ||
| 11 | 195-21-11350 | O-RING | ||
| 12 | 04020-01024 | PIN | ||
| 13 | 562-33-32321 | RETAINER | ||
| 14 | 568-33-11511 | SEAL | ||
| 15 | 562-33-32220 | HUB | ||
| 16 | 568-33-11430 | O-RING | ||
| 17 | 285-35-11820 | ELBOW (1) | ||
| 18 | 562-33-32210 | GEAR | ||
| 19 | 285-35-12150 | TUBE (1) | ||
| 20 | PB7601 | PLATE, SEPARATOR | ||
| 21 | EJ7715 | DISC, FRICTION | ||
| 22 | PB7602 | DAMPER | ||
| 23 | 287-33-11160 | O-RING | ||
| 24 | 561-33-62690 | BRACKET (1) | ||
| 25 | 08036-01814 | CLIP (1) | ||
| 26 | 01010-81016 | CAPSCREW - M10 X 1.50 X 16 (1) | ||
| 27 | 01643-51032 | FLAT WASHER - M10 (1) | ||
| 28 | 562-33-32941 | SEAL | ||
| 29 | 562-33-32951 | SEAL | ||
| 30 | 562-33-32120 | PISTON | ||
| 31 | 568-22-12810 | O-RING (1) | ||
| NS|32 | NOTE: NS = NOT SHOWN | |||
| NS|33 | 562-99-3A110 | FIXTURE, BRAKE CLAMP | ||
| NS|34 | NOTE: (1) NOT INCLUDED IN EK6049 BRAKE ASSEMBLY. | |||
| NS|35 | (2) INCLUDED IN 428-33-00021 SEAL ASSEMBLY. | |||
| NS|36 | (SEE FRONT BRAKE PIPING PAGE FOR BALANCE OF | |||
| NS|37 | FRONT BRAKE ASSEMBLY PARTS.) | |||
| NS|38 | (QUANTITIES SHOWN ARE FOR ONE BRAKE ASSEMBLY ONLY.) |
