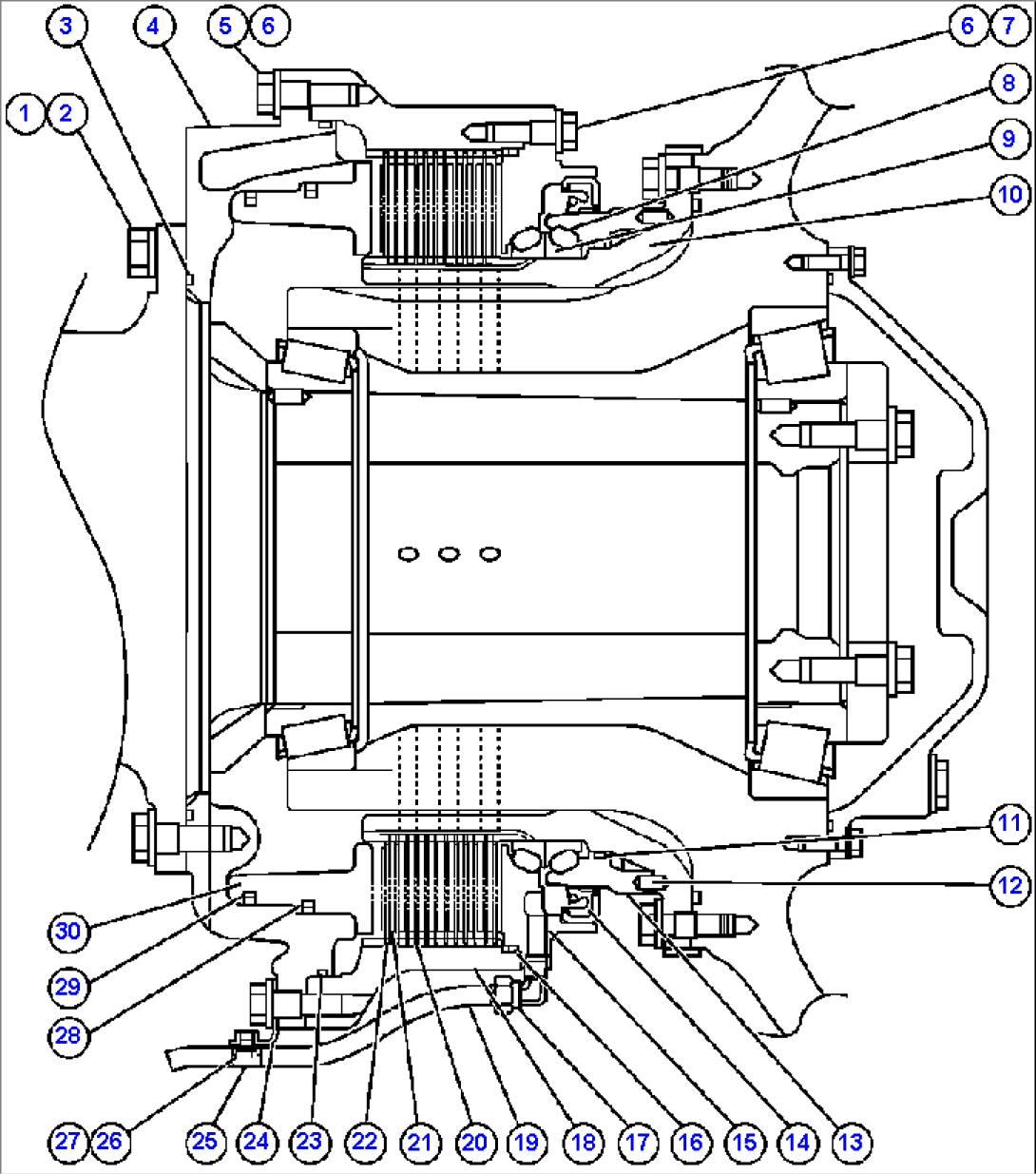

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-62470 | BOLT | ||
| 2 | 01643-32460 | WASHER | ||
| 3 | 07000-05455 | O-RING | ||
| 4 | 562-33-32110 | CYLINDER (HOUSING) | ||
| 5 | 01010-62065 | BOLT | ||
| 6 | 01643-32060 | WASHER | ||
| 7 | 01010-62060 | BOLT | ||
| 8 | 428-33-11650 | O-RING | ||
| 9 | 568-33-11364 | SEAL | ||
| 10 | 562-33-32311 | GEAR | ||
| 11 | 195-21-11350 | O-RING | ||
| 12 | 04020-01024 | PIN | ||
| 13 | 562-33-32321 | RETAINER | ||
| 14 | 568-33-11511 | SEAL | ||
| 15 | 562-33-32220 | HUB | ||
| 16 | 568-33-11430 | O-RING | ||
| 17 | 285-35-11820 | ELBOW | ||
| 18 | 562-33-32210 | GEAR | ||
| 19 | 285-35-12150 | TUBE | ||
| 20 | PB7600 | DISC, FRICTION | ||
| 21 | PB7601 | PLATE, SEPARATOR | ||
| 22 | PB7602 | DAMPER | ||
| 23 | 287-33-11160 | O-RING | ||
| 24 | 561-33-62690 | BRACKET | ||
| 25 | 08036-01814 | CLIP | ||
| 26 | 01010-51016 | BOLT | ||
| 27 | 01643-51032 | WASHER | ||
| 28 | 562-33-32940 | SEAL (1) | ||
| 28 | 562-33-32941 | SEAL (2) | ||
| 29 | 562-33-32950 | SEAL (1) | ||
| 29 | 562-33-32951 | SEAL (2) | ||
| 30 | 562-33-32120 | PISTON | ||
| NS|33 | NOTE: (1) EFFECTIVE WITH AFP49-F, G, & H. | |||
| NS|34 | (2) EFFECTIVE WITH AFP49-J ONLY. |
