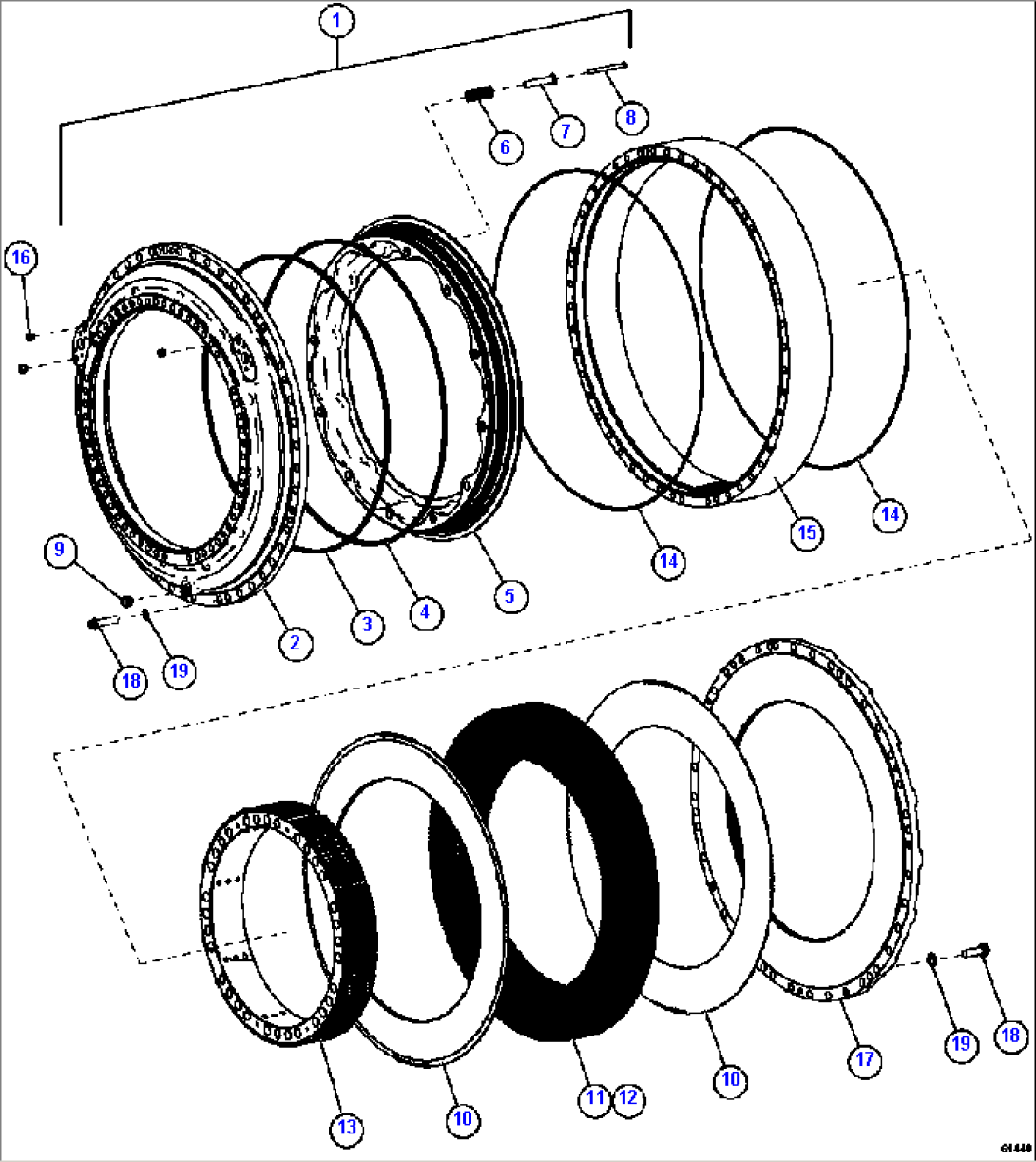

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM1129 | PISTON ASSEMBLY | ||
| 2 | EM1128 | HOUSING, PISTON | ||
| 3 | EJ6990 | SEAL, PISTON (1) | ||
| 4 | EJ6991 | SEAL, PISTON (1) | ||
| 5 | EJ5849 | PISTON | ||
| 6 | EJ6986 | SPRING, COMPRESSION | ||
| 7 | EJ6985 | GUIDE, SPRING | ||
| 8 | VN9149 | CAPSCREW - 1/2" - 13NC X 4 1/2" | ||
| 9 | VM0317 | PLUG (1) | ||
| 10 | EJ6987 | DAMPER | ||
| 11 | EH5306 | PLATE, SEPARATOR | ||
| 12 | EH5307 | DISC, FRICTION | ||
| 13 | EK2738 | GEAR, INNER | ||
| 14 | EH7197 | O-RING (1) | ||
| 15 | EM1130 | GEAR, OUTER | ||
| 16 | VM0315 | PLUG (1) | ||
| 17 | EM1145 | PLATE, BACK | ||
| 18 | WA0908 | CAPSCREW - 1" - 8NC X 3" (12 PT) | ||
| 19 | WA4174 | FLAT WASHER - 1" | ||
| NS|20 | AK5629 | NOTE: (1) INCLUDED IN AK5629 FRONT BRAKE SEAL KIT. |
