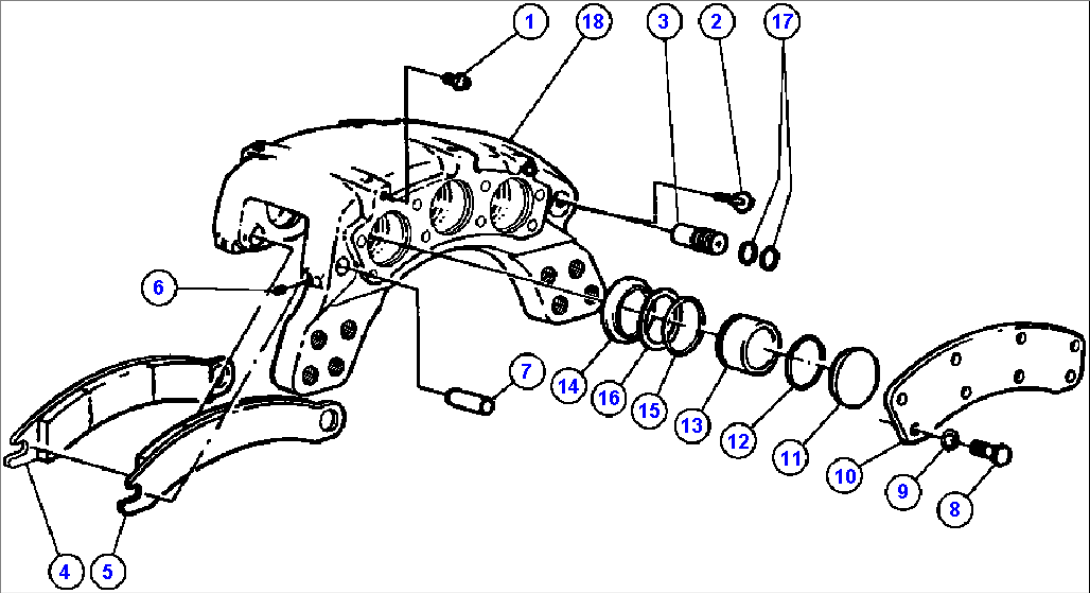

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TR6102 | BLEED SCREW | ||
| 2 | VE7708 | BOLT | ||
| 3 | VE7667 | PIN | ||
| 4 | VE7672 | CARRIER & LINING (2) | ||
| 5 | VE7673 | CARRIER & LINING (2) | ||
| 6 | VE7721 | BOLT | ||
| 7 | VE7669 | PIN | ||
| 8 | VE7722 | WASHER, HARDENED | ||
| 9 | VE7725 | WASHER, HARDENED | ||
| 10 | VE7706 | PLATE, COVER | ||
| 11 | VE7695 | PLUG, PISTON | ||
| 12 | SEAL (1) | |||
| 13 | VE7702 | PISTON | ||
| 14 | BOOT (1) | |||
| 15 | SEAL (1) | |||
| 16 | BACKUP RING (1) | |||
| 17 | SEAL (1) | |||
| 18 | TORQ PLATE ASSM. | |||
| NS|19 | VE7720 | NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN | ||
| NS|20 | VE7720 SEAL KIT. | |||
| NS|21 | AK7435 | (2) INCLUDED IN AK7435 LINING KIT. |
