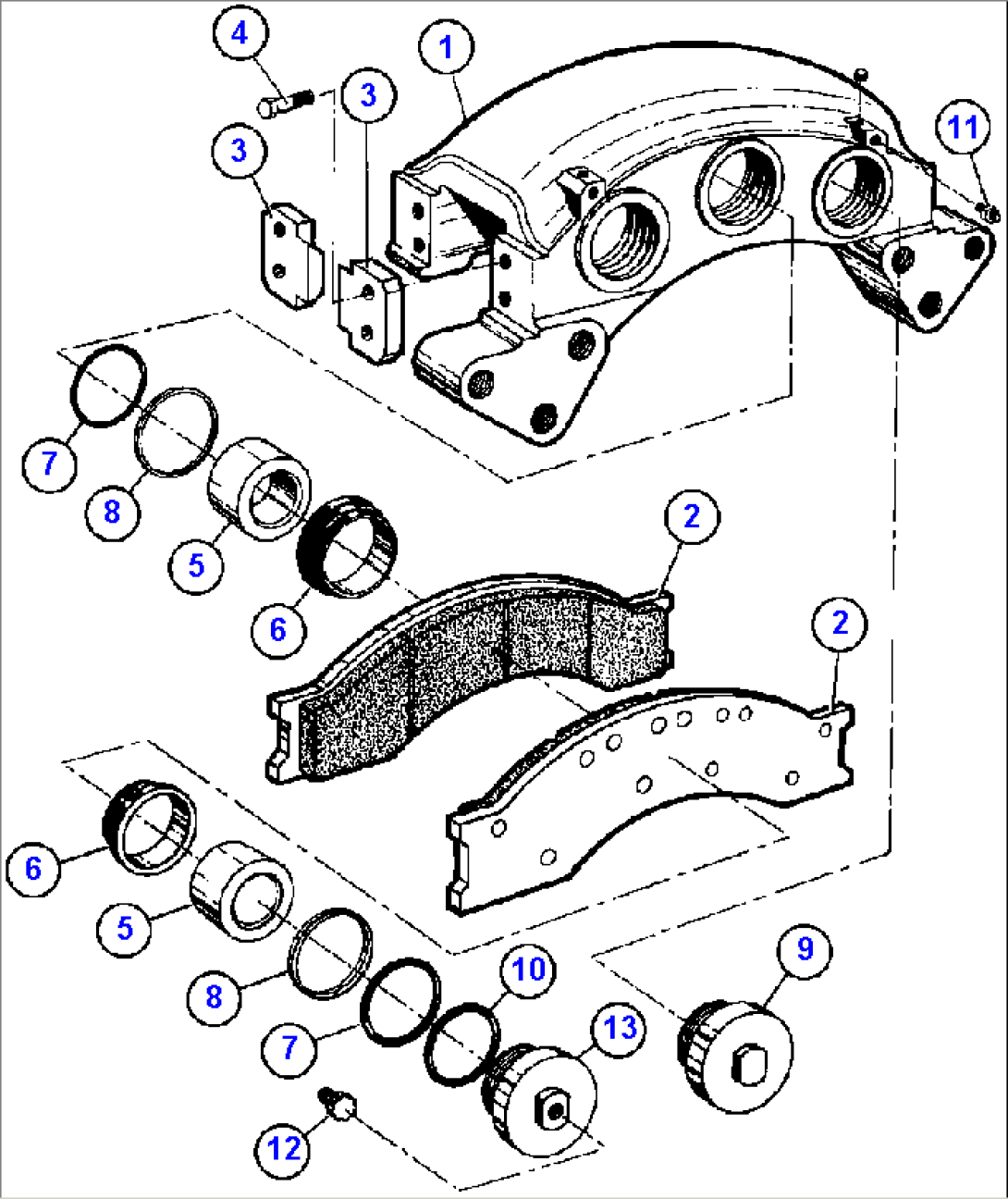

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HOUSING (NOT SVCD SEPARATELY) | |||
| 2 | VE2186 | LINING | ||
| 3 | VE2188 | PLATE, RETAINING | ||
| 4 | VN9047 | CAPSCREW - 5/8" - 11NC X 1 1/2" | ||
| 5 | VE2189 | PISTON | ||
| 6 | COVER, DUST (1) | |||
| 7 | O-RING (1) | |||
| 8 | RING, BACKUP (1) | |||
| 9 | VE2194 | HEAD, CYLINDER | ||
| 10 | O-RING (1) | |||
| 11 | VS7529 | BLEEDER | ||
| 12 | VE2196 | COVER, PROTECTIVE | ||
| 13 | VE2193 | HEAD, CYLINDER | ||
| NS|14 | VE7010 | NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN VE7010 | ||
| NS|15 | SEAL KIT. |
