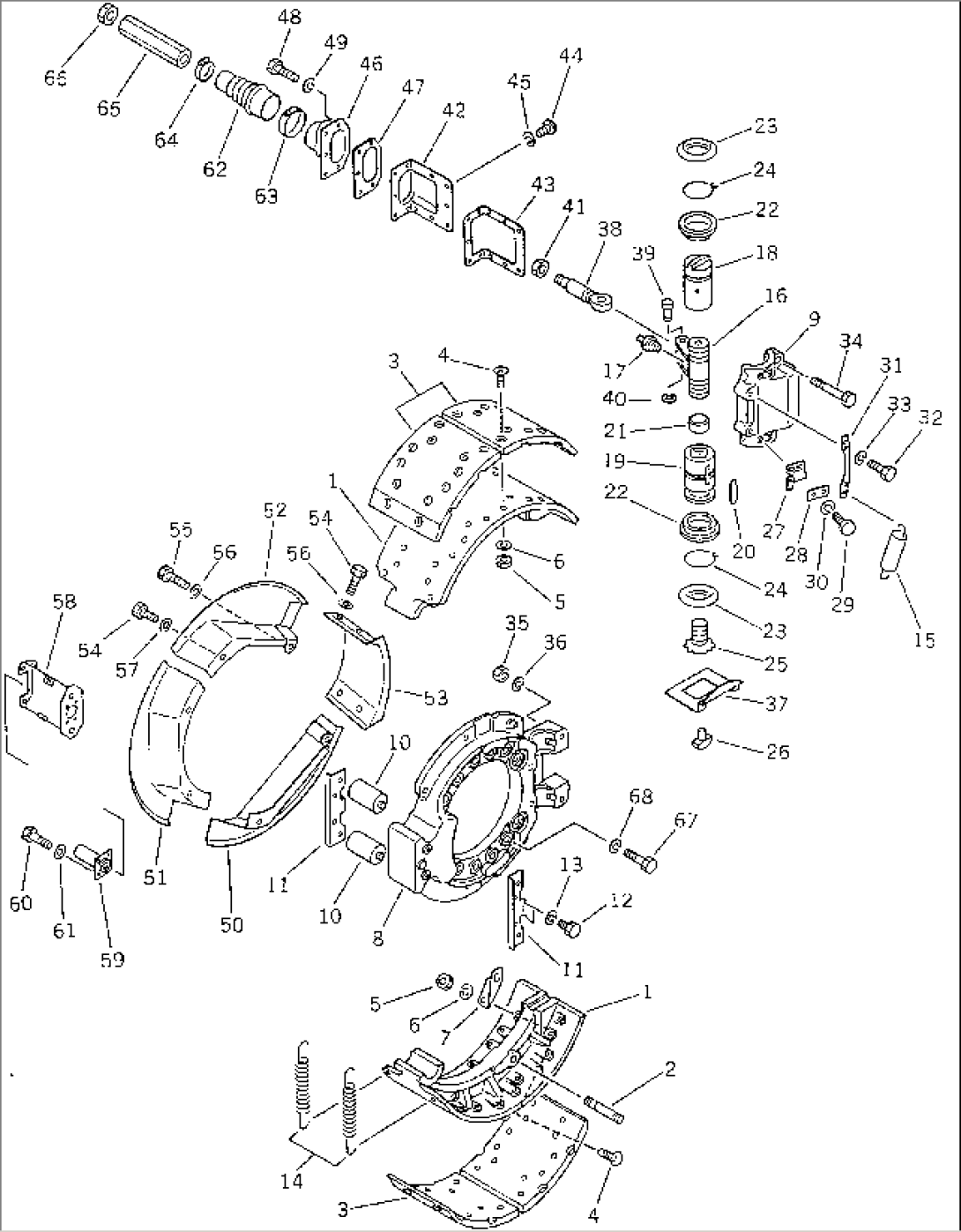

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-32-41100 | FRONT BRAKE ASS'Y,L.H. | 2001- | ||
| 566-32-42100 | FRONT BRAKE ASS'Y,R.H. | 2001- | ||
| 565-32-13011 | SHOE ASS'Y | 2001- | ||
| 1 | 565-32-13112 | SHOE,BRAKE | 2001- | |
| 2 | 565-32-13331 | PIN | 2001- | |
| 3 | 565-32-13124 | LINING | 2001- | |
| 4 | 565-32-13141 | BOLT | 2001- | |
| 5 | 01582-11008 | NUT | 2001- | |
| 6 | 01602-21030 | WASHER,SPRING | 2001- | |
| 7 | 565-32-13670 | GUIDE,ADJUSTER¤ L.H. | 2001- | |
| 565-32-13611 | GUIDE,ADJUSTER¤ R.H. | 2001- | ||
| 565-32-43703 | BRACKET ASS'Y | 2001- | ||
| 8 | \6\ | BRACKET,ANCHOR | 2001- | |
| 9 | \6\ | CASE | 2001- | |
| 10 | 565-32-13340 | PIN,ANCHOR | 2001- | |
| 11 | 565-32-13353 | LOCK | 2001- | |
| 12 | 01010-51025 | BOLT | 2001- | |
| 13 | 01602-21030 | WASHER,SPRING | 2001- | |
| 14 | 565-32-13442 | SPRING,ANCHOR | 2001- | |
| 15 | 565-32-13300 | SPRING ASS'Y | 2001- | |
| \6\ | SPRING,RETURN | 2001- | ||
| \6\ | COVER | 2001- | ||
| 565-32-00122 | SCREW ASS'Y,L.H. | 2001- | ||
| 565-32-00112 | SCREW ASS'Y,R.H. | 2001- | ||
| 16 | \6\ | SCREW,MAIN | 2001- | |
| 17 | 07020-00001 | FITTING,GREASE | 2001- | |
| 18 | \6\ | NUT,L.H. | 2001- | |
| \6\ | NUT,R.H. | 2001- | ||
| 19 | \6\ | NUT,ADJUSTER¤ L.H. | 2001- | |
| \6\ | NUT,ADJUSTER¤ R.H. | 2001- | ||
| 20 | 565-32-13242 | KEY | 2001- | |
| 21 | 565-32-13320 | SEAL (K7) | 2001- | |
| 22 | 565-32-13381 | SUPPORT,BOOT (K7) | 2001- | |
| 23 | 565-32-13392 | BOOT (K7) | 2001- | |
| 24 | 565-32-13620 | CLIP,BOOT (K7) | 2001- | |
| 25 | 565-32-13250 | ADJUSTER | 2001- | |
| 26 | 565-32-13260 | PIECE,END | 2001- | |
| 27 | 565-32-13373 | STOPPER | 2001- | |
| 28 | 565-32-13641 | PLATE | 2001- | |
| 29 | 01010-50812 | BOLT | 2001- | |
| 30 | 01602-20825 | WASHER,SPRING | 2001- | |
| 31 | 565-32-41460 | BRACKET,SPRING | 2001- | |
| 32 | 01010-51255 | BOLT | 2001- | |
| 33 | 01602-21236 | WASHER,SPRING | 2001- | |
| 34 | 565-32-13731 | BOLT | 2001- | |
| 35 | 01582-11613 | NUT | 2001- | |
| 36 | 01602-21648 | WASHER,SPRING | 2001- | |
| 37 | 565-32-13780 | PROTECTOR,BOOT | 2001- | |
| 38 | 565-32-13291 | JOINT,BALL | 2001- | |
| 39 | 565-32-13270 | PIN | 2001- | |
| 40 | 565-32-13280 | CLIP | 2001- | |
| 41 | 565-32-13190 | NUT | 2001- | |
| 42 | 565-32-13422 | COVER | 2001- | |
| 43 | 565-32-13411 | GASKET (K7) | 2001- | |
| 44 | 01016-20510 | BOLT | 2001- | |
| 45 | 01601-00513 | WASHER,SPRING | 2001- | |
| 46 | 565-32-13880 | COVER | 2001- | |
| 47 | 565-32-13870 | SEAT | 2001- | |
| 48 | 01016-20515 | BOLT | 2001- | |
| 49 | 01601-20513 | WASHER,SPRING | 2001- | |
| 50 | 566-32-41950 | PLATE,BACK | 2001- | |
| 51 | 565-32-14970 | PLATE,BACK | 2001- | |
| 52 | 566-32-41960 | PLATE,BACK | 2001- | |
| 53 | 566-32-41940 | PLATE,BACK | 2001- | |
| 54 | 01010-51020 | BOLT | 2001- | |
| 55 | 01010-51030 | BOLT | 2001- | |
| 56 | 01643-31032 | WASHER | .- | |
| 01602-21030 | WASHER,SPRING | 2001-. | ||
| 57 | 01643-31032 | WASHER | 2001- | |
| 58 | 566-32-41910 | BRACKET | 2001- | |
| 59 | 565-32-13970 | COVER | 2001- | |
| 60 | 01010-50616 | BOLT | 2001- | |
| 61 | 01643-30623 | WASHER | 2001- | |
| 62 | 565-32-13890 | BOOT | 2001- | |
| 63 | 07281-00709 | CLAMP | 2001- | |
| 64 | 07281-00549 | CLAMP | 2001- | |
| 65 | 565-32-13681 | BUCKLE,TURN | 2001- | |
| 66 | 01583-11610 | NUT | 2001- | |
| 67 | 01010-62060 | BOLT | .- | |
| 01010-82060 | BOLT | 2001-. | ||
| 68 | 01602-02060 | WASHER,SPRING | .- | |
| 01602-22060 | WASHER,SPRING | 2001-. |
