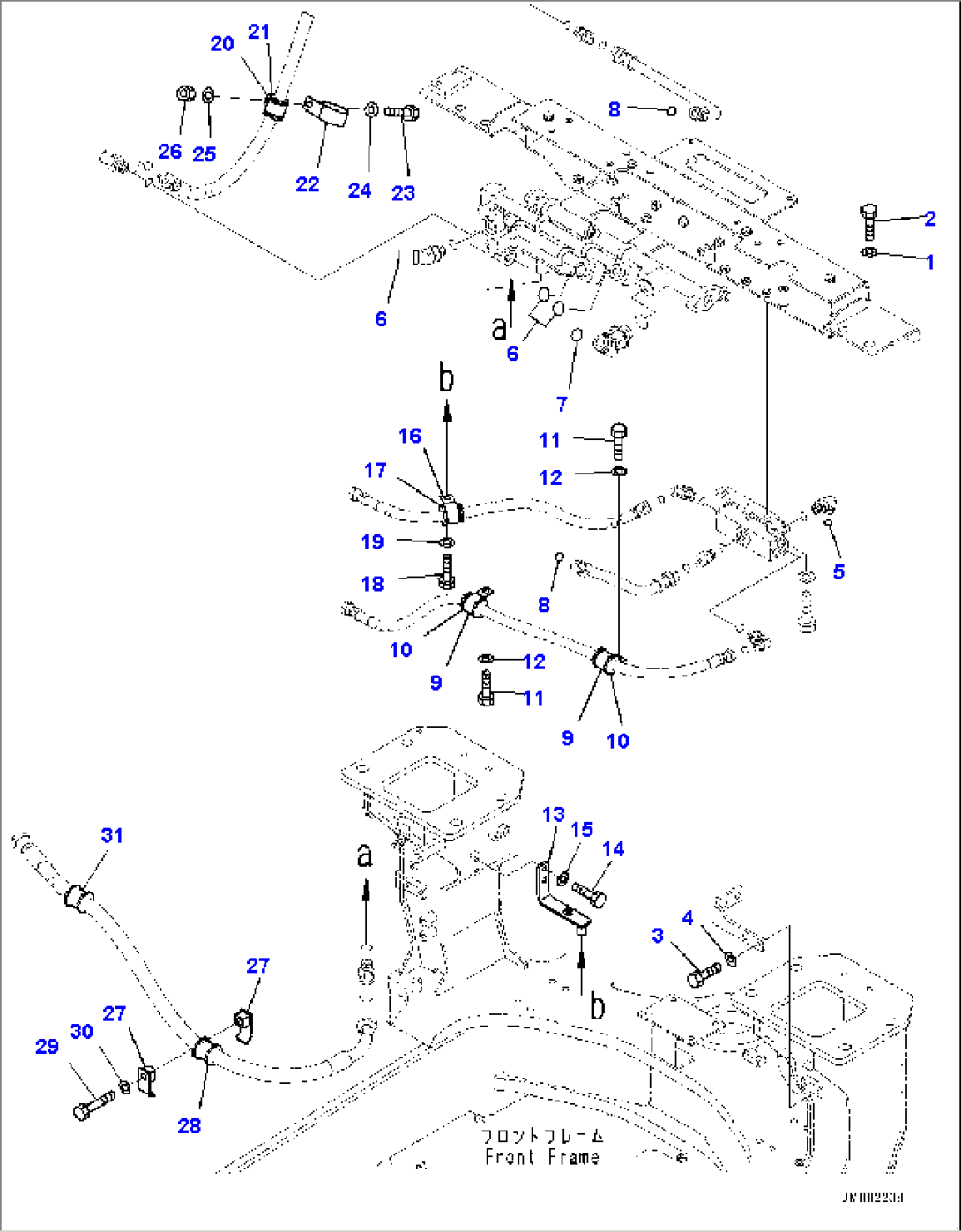

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01643-31645 | Washer | 5001- | |
| 2 | 01010-81630 | Bolt | 5001- | |
| 3 | 01010-81025 | Bolt | 5001- | |
| 4 | 01643-31032 | Washer | 5001- | |
| 5 | 02896-21012 | O-ring | 5001- | |
| 6 | 02896-21018 | O-ring | 5001- | |
| 7 | 207-62-64740 | O-ring | 5001- | |
| 8 | 02896-21015 | O-ring | 5001- | |
| 9 | 04434-53411 | Clip | 5001- | |
| 10 | 07095-00419 | Cushion | 5001- | |
| 11 | 01010-81020 | Bolt | 5001- | |
| 12 | 01643-31032 | Washer | 5001- | |
| 13 | 56B-43-37771 | Bracket | 5001- | |
| 14 | 01010-81020 | Bolt | 5001- | |
| 15 | 01643-31032 | Washer | 5001- | |
| 16 | 04434-53411 | Clip | 5001- | |
| 17 | 07095-00419 | Cushion | 5001- | |
| 18 | 01010-81025 | Bolt | 5001- | |
| 19 | 01643-31032 | Washer | 5001- | |
| 20 | 281-01-13180 | Clip | 5001- | |
| 21 | 07095-00524 | Cushion | 5001- | |
| 22 | 22U-03-31760 | Clip | 5001- | |
| 23 | 01010-81025 | Bolt | 5001- | |
| 24 | 01643-31032 | Washer | 5001- | |
| 25 | 01643-31032 | Washer | 5001- | |
| 26 | 01580-11008 | Nut | 5001- | |
| 27 | 07094-10620 | Clamp | 5001- | |
| 28 | 07095-00628 | Cushion | 5001- | |
| 29 | 01010-81285 | Bolt | 5001- | |
| 30 | 01643-31232 | Washer | 5001- | |
| 31 | 07095-00628 | Cushion | 5001- |
