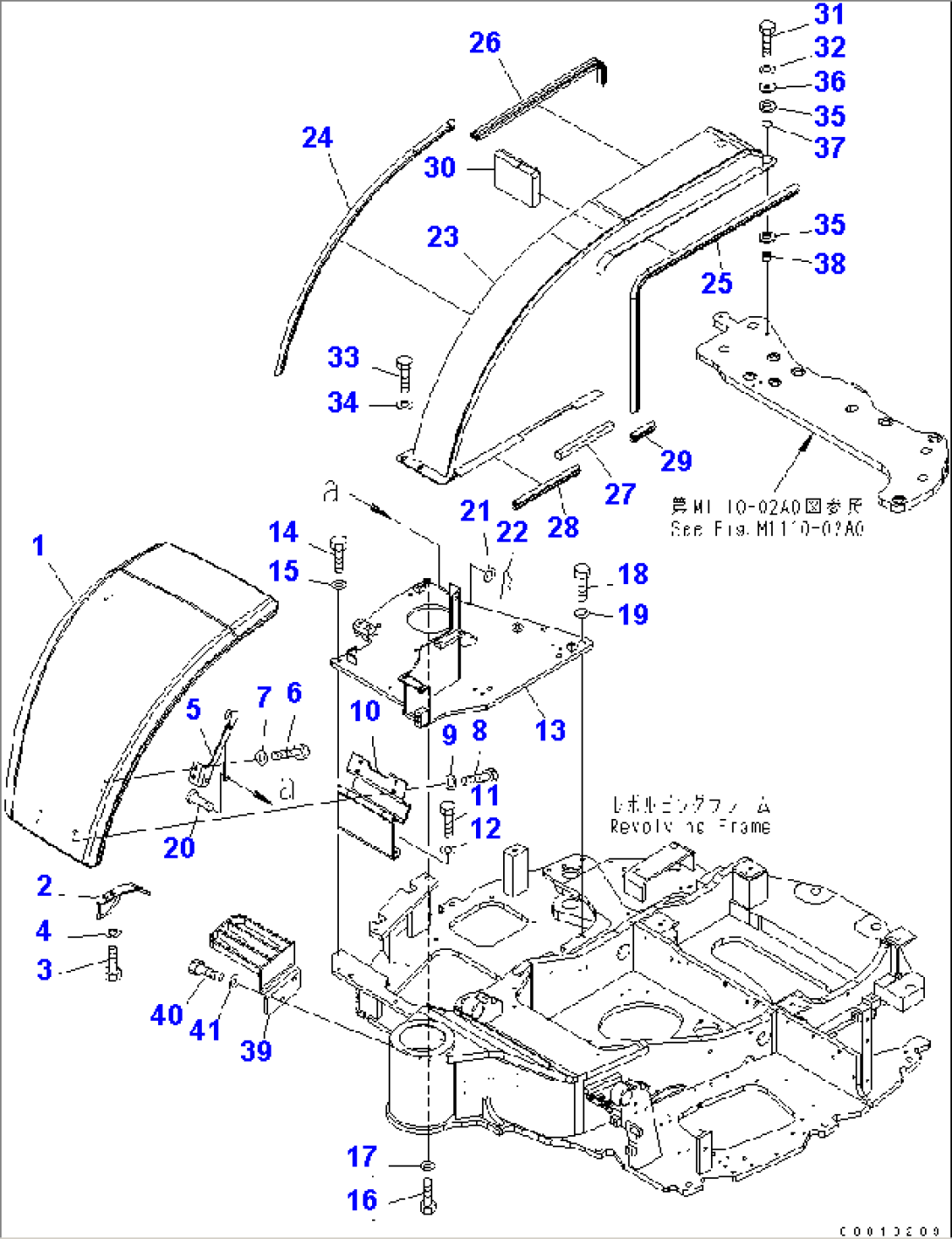

| Item | Part No. | Part Name | Qty | Serial No. |
| 459-152 | COVER ASS'Y | 7038- | ||
| 1 | 459-145 | COVER | 7038- | |
| 2 | 459-013 | BRACKET | 7038- | |
| 3 | 105-274 | BOLT | 7038- | |
| 4 | 455-220 | WASHER | 7038- | |
| 5 | 452-804 | HINGE ASS'Y | 7038- | |
| 6 | 105-274 | BOLT | 7038- | |
| 7 | 455-220 | WASHER | 7038- | |
| 8 | 105-274 | BOLT | 7038- | |
| 9 | 455-220 | WASHER | 7038- | |
| 10 | 459-242 | HINGE | 7038- | |
| 11 | 105-274 | BOLT | 7038- | |
| 12 | 455-220 | WASHER | 7038- | |
| 13 | 459-008 | BRACKET | 7038- | |
| 14 | 107-995 | BOLT | 7038- | |
| 15 | 455-217 | WASHER | 7038- | |
| 16 | 106-547 | BOLT | 7038- | |
| 17 | 455-217 | WASHER | 7038- | |
| 18 | 108-027 | BOLT | 7038- | |
| 19 | 455-227 | WASHER | 7038- | |
| 20 | 454-106 | PIN | 7038- | |
| 21 | 455-225 | WASHER | 7038- | |
| 22 | 458-447 | PIN | 7038- | |
| 459-154 | COVER ASS'Y | 7038- | ||
| 23 | COVER | 7038- | ||
| 24 | 459-480 | SEAL | 7038- | |
| 25 | 459-479 | SEAL | 7038- | |
| 26 | 459-478 | SEAL | 7038- | |
| 27 | 459-575 | SHEET | 7038- | |
| 28 | 459-506 | SEAL | 7038- | |
| 29 | 459-504 | SEAL | 7038- | |
| 30 | 459-561 | SHEET | 7038- | |
| 31 | 106-477 | BOLT | 7038- | |
| 32 | 455-217 | WASHER | 7038- | |
| 33 | 107-994 | BOLT | 7038- | |
| 34 | 455-217 | WASHER | 7038- | |
| 35 | 451-949 | CUSHION | 7038- | |
| 36 | 454-694 | PLATE | 7038- | |
| 37 | 453-540 | O-RING | 7038- | |
| 38 | 459-624 | SPACER | 7038- | |
| 39 | 459-643 | STEP | 7038- | |
| 40 | 107-966 | BOLT | 7038- | |
| 41 | 455-220 | WASHER | 7038- |
