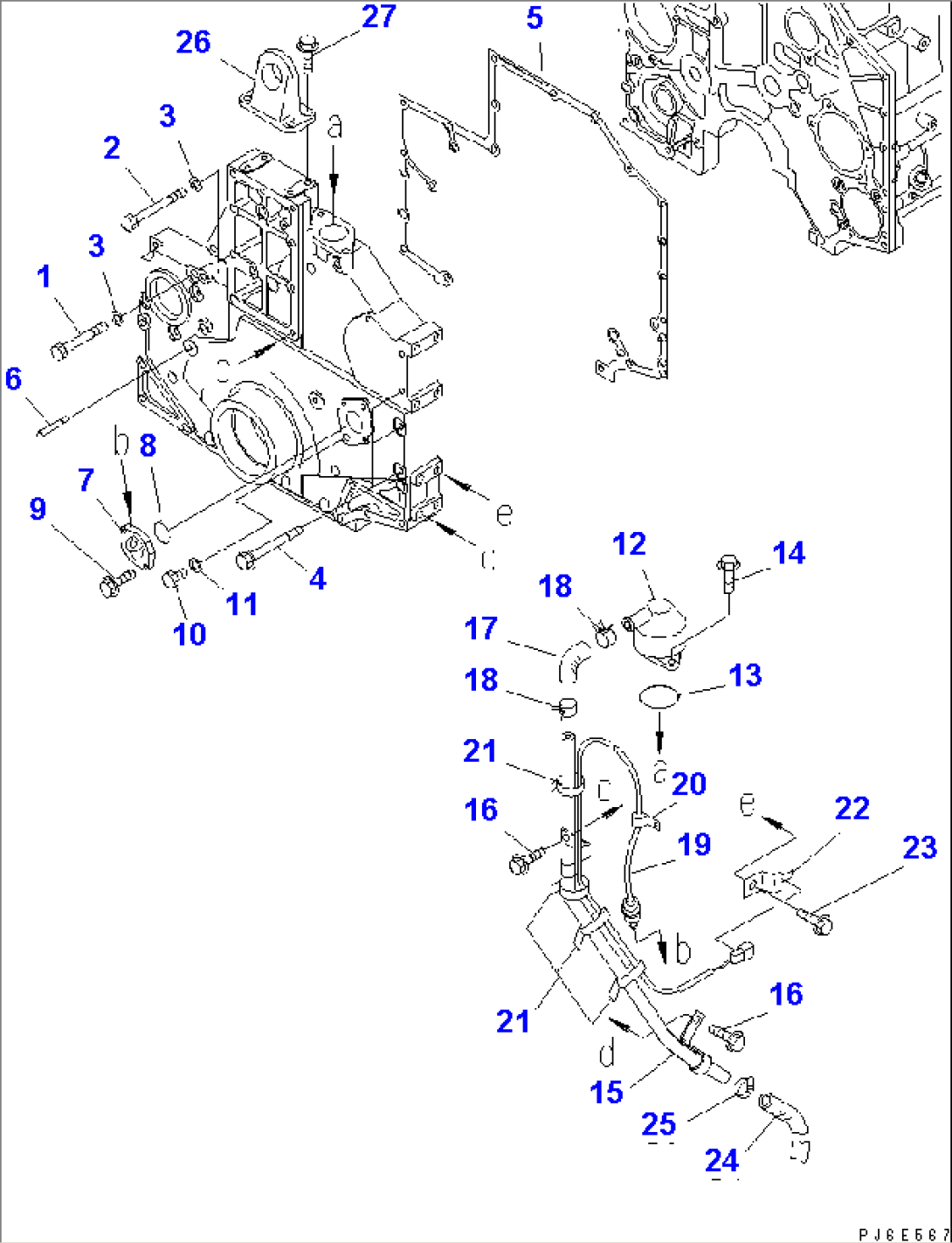

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81275 | BOLT | 110813- | |
| 2 | 01010-81290 | BOLT | 110813- | |
| 3 | 01640-21223 | WASHER | 110813- | |
| 4 | 01435-01090 | BOLT | 110813- | |
| 5 | 6217-21-3251 | GASKET (K2) | 110813- | |
| 5 | (\2\6217-21-3250) | GASKET (K2) | (110813-112232) | |
| 6 | 6162-25-3370 | POINTER | 110813- | |
| 7 | 6215-11-6320 | CONNECTOR | 110813- | |
| 8 | 07000-03050 | O-RING (K2) | 110813- | |
| 9 | 01435-00625 | BOLT | 110813- | |
| 10 | 07040-11209 | PLUG | 110813- | |
| 11 | 07005-01212 | SEAL, WASHER (K2) | 110813- | |
| 12 | 6217-21-8760 | BREATHER | 110813- | |
| 13 | 07000-72060 | O-RING (K2) | 110813- | |
| 14 | 01435-01030 | BOLT | 110813- | |
| 15 | 6218-21-8640 | TUBE | 110813- | |
| 16 | 01435-01220 | BOLT | 110813- | |
| 17 | 6130-61-6611 | HOSE | 110813- | |
| 18 | 07285-00260 | CLIP | 110813- | |
| 19 | 6218-81-4111 | SENSOR ASS'Y | 110813- | |
| 20 | 04434-50610 | CLIP | 110813- | |
| 21 | 08034-20519 | BAND | 110813- | |
| 22 | 08193-20012 | CLIP | 110813- | |
| 23 | 01435-01220 | BOLT | 110813- | |
| 24 | 07261-22018 | HOSE | 110813- | |
| 25 | 07285-00280 | CLIP | 110813- | |
| 26 | 6210-21-3752 | HANGER | 116263- | |
| 26 | \0\6210-21-3751 | BRACKET | 110813-116262 | |
| 27 | 01435-01030 | BOLT | 116263- | |
| 27 | \0\01435-01025 | BOLT | 110813-116262 |
