| Item | Part No. | Part Name | Qty | Serial No. |

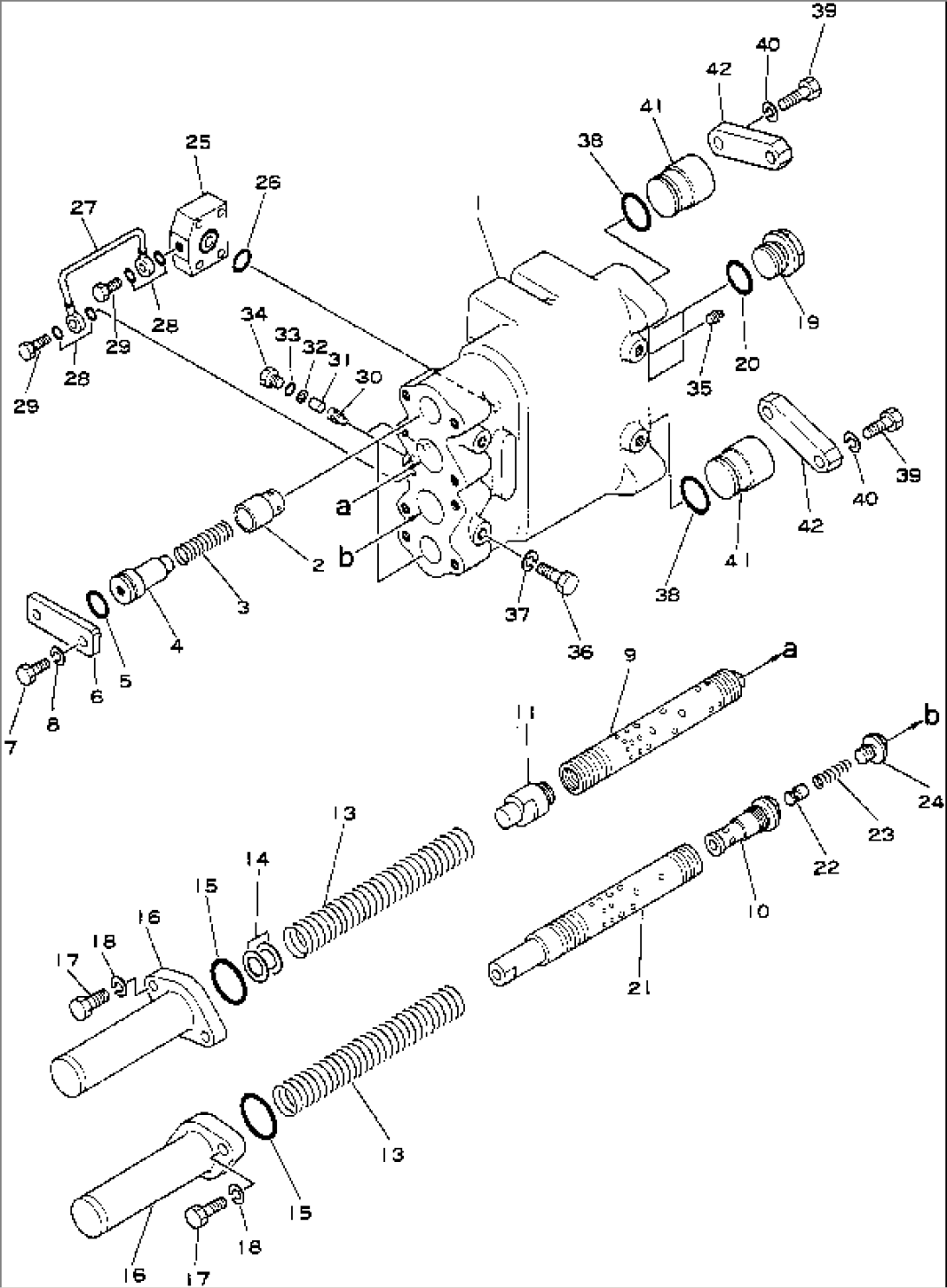

| 568-64-11001 | VALVE ASS'Y,DEMAND | 1002- | ||
| 1 | \6\ | BODY | 1002- | |
| 2 | 701-33-31120 | VALVE | 1002- | |
| 3 | 701-33-31130 | SPRING | 1002- | |
| 4 | 566-64-11250 | PLUG | 1002- | |
| 5 | 07000-13035 | O-RING | 1002- | |
| 6 | 701-33-31160 | PLATE | 1002- | |
| 7 | 01010-51235 | BOLT | 1002- | |
| 8 | 01602-21236 | WASHER | 1002- | |
| 9 | \6\ | SPOOL | 1002- | |
| 10 | 566-64-11160 | SLEEVE | 1002- | |
| 11 | 566-64-11190 | SEAT | 1002- | |
| 13 | 281-64-14431 | SPRING | 1002- | |
| 14 | 281-64-14530 | SHIM¤ 1.0MM | 1002- | |
| 281-64-14540 | SHIM¤ 2.3MM | 1002- | ||
| 15 | 07000-13055 | O-RING | 1002- | |
| 16 | 700-61-35121 | COVER | 1002- | |
| 17 | 01010-51455 | BOLT | 1002- | |
| 18 | 01602-21442 | WASHER | 1002- | |
| 19 | 281-64-14450 | PLUG | 1002- | |
| 20 | 07002-14234 | O-RING | 1002- | |
| 21 | \6\ | SPOOL | 1002- | |
| 22 | 700-13-31221 | VALVE | 1002- | |
| 23 | 700-32-31230 | SPRING | 1002- | |
| 24 | 566-64-11180 | PLUG | 1002- | |
| 25 | 566-64-11413 | BLOCK | 1002- | |
| 26 | 07000-13035 | O-RING | 1002- | |
| 27 | 566-64-11442 | TUBE | 1002- | |
| 28 | 07000-12012 | O-RING | 1002- | |
| 29 | 6631-51-9580 | BOLT | 1002- | |
| 30 | 566-64-11311 | VALVE | 1002- | |
| 31 | 566-64-11260 | SPACER | 1002- | |
| 32 | 01642-00405 | WASHER | 1002- | |
| 33 | 07002-11223 | O-RING | 1002- | |
| 34 | 07040-11209 | PLUG | 1002- | |
| 35 | 07042-20211 | PLUG | 1002- | |
| 36 | 01010-51435 | BOLT | 1002- | |
| 37 | 01602-21442 | WASHER | 1002- | |
| 38 | 07000-13045 | O-RING | 1002- | |
| 39 | 01010-51440 | BOLT | 1002- | |
| 40 | 01602-21442 | WASHER | 1002- | |
| 41 | 568-64-11110 | SPACER | 1002- | |
| 42 | 568-64-11120 | PLATE | 1002- |
