| Item | Part No. | Part Name | Qty | Serial No. |
| (421-22-20501) | AXLE ASS'Y,FRONT | 50305- | ||

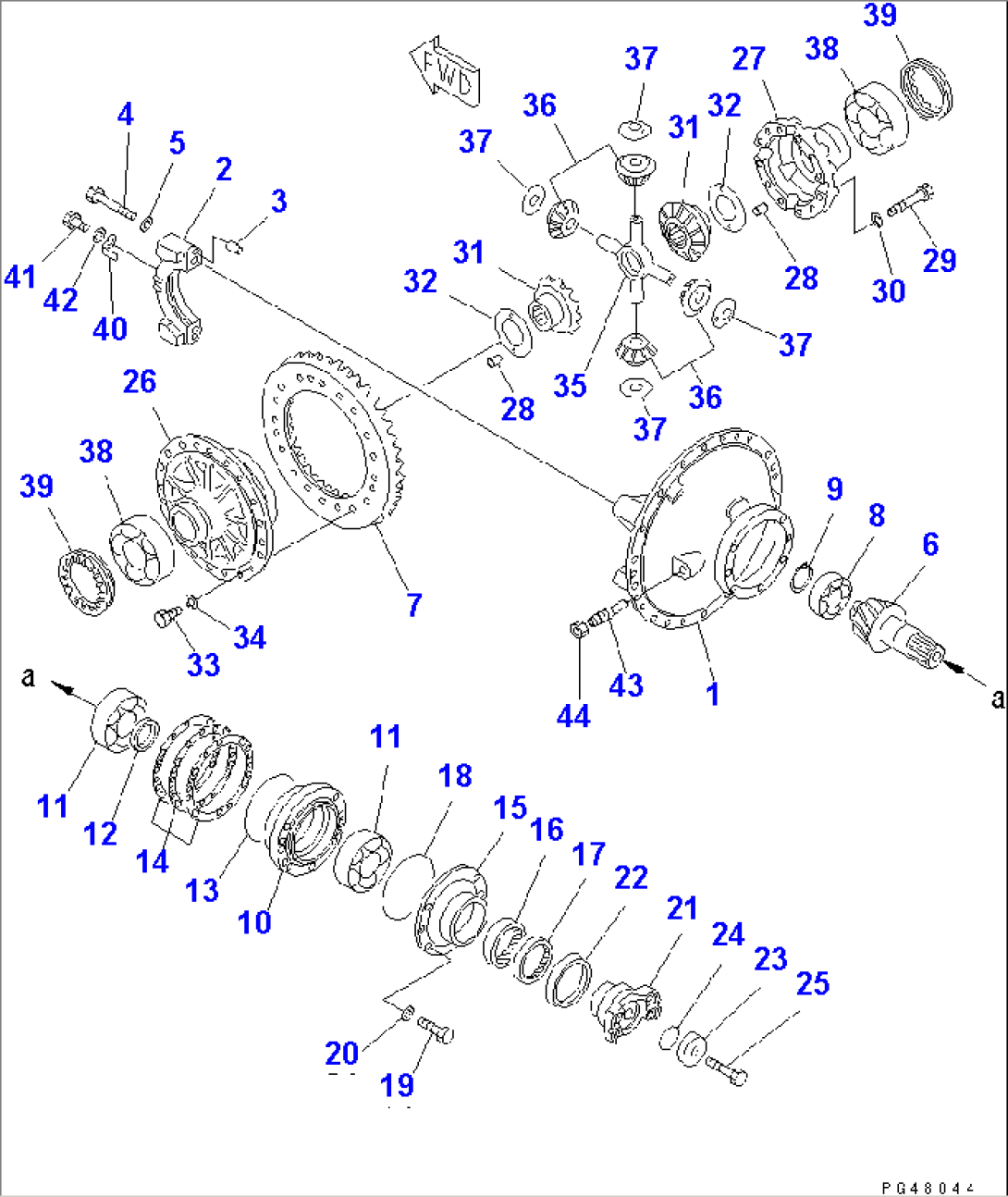

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3131. | ||||
| 421-22-21001 | DIFFERENTIAL ASS'Y,FRONT | 50305- | ||
| \6\ | CARRIER ASS'Y | 50305- | ||
| 1 | \6\ | CARRIER | 50305- | |
| 2 | \6\ | CAP | 50305- | |
| 3 | 423-22-11161 | PIN,DOWEL | 50305- | |
| 4 | 01011-62440 | BOLT | 50305- | |
| 5 | 01643-32460 | WASHER | 50305- | |
| 421-22-21200 | PINION ASS'Y | 50305- | ||
| 6 | \6\ | PINION | 50305- | |
| 7 | \6\ | GEAR,BEVEL | 50305- | |
| 8 | 421-22-21850 | BEARING | 50305- | |
| 9 | 04064-05020 | RING,SNAP | 50305- | |
| 10 | \6\ | CAGE,BEARING | 50305- | |
| 11 | 421-22-11871 | BEARING | 50305- | |
| 12 | 421-22-11341 | SPACER | 50305- | |
| 13 | 07000-05180 | O-RING | 50305- | |
| 14 | 421-22-11392 | SHIM, 0.2MM | 50305- | |
| 14 | 421-22-11382 | SHIM, 0.3MM | 50305- | |
| 14 | 421-22-11372 | SHIM, 1.0MM | 50305- | |
| 15 | \6\ | CAGE | 50305- | |
| 16 | 07012-50095 | SEAL,OIL | 50305- | |
| 17 | 421-22-21760 | SEAL,DUST | 50305- | |
| 18 | 07000-05175 | O-RING | 50305- | |
| 19 | 01010-31455 | BOLT | 50305- | |
| 20 | 01643-31445 | WASHER | 50305- | |
| 21 | 421-23-21240 | COUPLING | 50305- | |
| 22 | 421-22-21320 | PROTECTOR | 50305- | |
| 23 | 421-22-11240 | HOLDER | 50305- | |
| 24 | 07000-05055 | O-RING | 50305- | |
| 25 | 01051-62420 | BOLT | 50305- | |
| \6\ | CASE ASS'Y | 50305- | ||
| 26 | \6\ | CASE | 50305- | |
| 27 | \6\ | CASE | 50305- | |
| 28 | 175-21-12180 | PIN,DOWEL | 50305- | |
| 29 | 01011-61410 | BOLT | 50305- | |
| 30 | 01643-31445 | WASHER | 50305- | |
| 31 | 421-22-11461 | GEAR,SIDE | 50305- | |
| 32 | 421-22-11681 | WASHER | 50305- | |
| 33 | 01010-61645 | BOLT | 50305- | |
| 34 | 01643-31645 | WASHER | 50305- | |
| 35 | 421-22-11440 | SHAFT | 50305- | |
| 36 | 421-22-11450 | PINION | 50305- | |
| 37 | 421-22-11691 | WASHER | 50305- | |
| 38 | 421-22-11860 | BEARING | 50305- | |
| 39 | 421-22-11141 | NUT | 50305- | |
| 40 | 421-22-11150 | LOCK | 50305- | |
| 41 | 01010-31430 | BOLT | 50305- | |
| 42 | 01643-31445 | WASHER | 50305- | |
| 43 | 421-22-11180 | BOLT | 50305- | |
| 44 | 01583-02414 | NUT | 50305- |
