| Item | Part No. | Part Name | Qty | Serial No. |

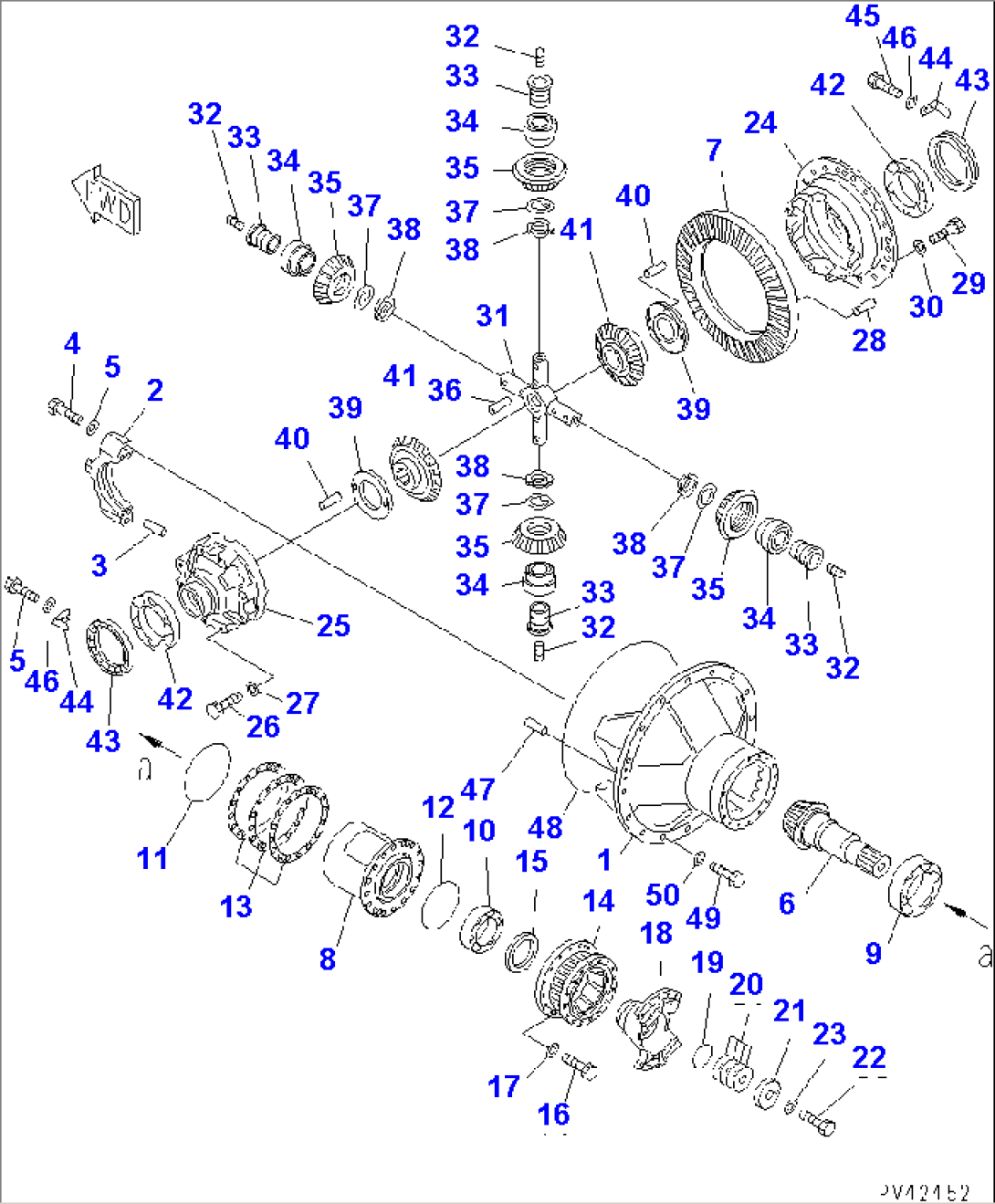

| (427-22-10001) | FRONT AXLE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||
| 427-22-11001 | DIFFERENTIAL ASS'Y | 10001- | ||
| 427-22-00010 | CARRIER ASS'Y | 10001- | ||
| 1 | \6\ | CARRIER | 10001- | |
| 2 | \6\ | CAP | 10001- | |
| 3 | 04020-01842 | PIN,DOWEL | 10001- | |
| 4 | 01011-63080 | BOLT | 10001- | |
| 5 | 01643-33080 | WASHER | 10001- | |
| 427-22-11200 | PINION ASS'Y | 10559- | ||
| \0\427-22-00021 | PINION ASS'Y | 10033-10558 | ||
| \0\427-22-00020 | PINION ASS'Y | 10001-10032 | ||
| 6 | \6\ | PINION,GEAR | 10033- | |
| \6\ | PINION,GEAR | 10001-10032 | ||
| 7 | \6\ | GEAR | 10559- | |
| \6\ | GEAR | 10033-10558 | ||
| \6\ | GEAR | 10001-10032 | ||
| 8 | 427-22-11130 | CAGE | 10001- | |
| 9 | 561-27-11910 | BEARING | 10001- | |
| 10 | 566-22-11811 | BEARING | 10001- | |
| 11 | 07000-15320 | O-RING (K10) | 10001- | |
| 12 | 07000-15260 | O-RING (K10) | 10001- | |
| 13 | 427-22-00030 | SHIM KIT | 10001- | |
| \6\ | SHIM¤ 0.2MM | 10001- | ||
| \6\ | SHIM¤ 0.3MM | 10001- | ||
| \6\ | SHIM¤ 1.0MM | 10001- | ||
| 14 | 427-22-11311 | CAGE | 10001- | |
| 15 | 07012-10150 | SEAL,OIL (K10) | 10001- | |
| 16 | 01010-62090 | BOLT | 10001- | |
| 17 | 01643-32060 | WASHER | 10001- | |
| 18 | 427-22-11231 | COUPLING | 10001- | |
| 19 | 562-15-19970 | O-RING (K10) | 10001- | |
| 20 | 427-22-00050 | SHIM KIT | 10001- | |
| \6\ | SHIM¤ 0.05MM | 10001- | ||
| \6\ | SHIM¤ 0.2MM | 10001- | ||
| \6\ | SHIM¤ 0.3MM | 10001- | ||
| \6\ | SHIM¤ 1.0MM | 10001- | ||
| 21 | 427-22-11240 | HOLDER | 10001- | |
| 22 | 562-22-11950 | BOLT | 10001- | |
| 23 | 01643-33690 | WASHER | 10001- | |
| 427-22-11500 | CASE ASS'Y | 10559- | ||
| \0\427-22-00040 | CASE ASS'Y | 10001-10558 | ||
| 24 | \6\ | CASE | 10559- | |
| \6\ | CASE | 10001-10558 | ||
| 25 | \6\ | CASE | 10001- | |
| 26 | 01011-62490 | BOLT | 10001- | |
| 27 | 01643-32460 | WASHER | 10001- | |
| 28 | 04020-01024 | PIN | 10559- | |
| 568-22-11280 | PIN | 10001-10558 | ||
| 29 | 01010-62480 | BOLT | 10001- | |
| 30 | 01643-32460 | WASHER | 10001- | |
| 31 | 427-22-11410 | SHAFT | 10036- | |
| \0\562-22-11410 | SHAFT | 10001-10035 | ||
| 32 | 07043-00312 | PLUG | 10001-10035 | |
| 33 | 562-22-11440 | SLEEVE | 10001- | |
| 34 | 562-22-11850 | BEARING | 10001- | |
| 35 | 562-22-11420 | PINION | 10001- | |
| 36 | 04020-01024 | PIN,DOWEL | 10001-10558 | |
| 37 | 562-22-11980 | WASHER | 10001- | |
| 38 | 562-22-11990 | NUT | 10001- | |
| 39 | 562-22-11460 | WASHER | 10001- | |
| 40 | 6684-21-5150 | PIN | 10001- | |
| 41 | 427-22-11430 | GEAR | 10001- | |
| 42 | 568-22-11960 | BEARING | 10001- | |
| 43 | 568-22-11611 | NUT | 10001- | |
| 44 | 427-22-11150 | LOCK | 10001- | |
| 45 | 01010-61640 | BOLT | 10001- | |
| 46 | 01643-31645 | WASHER | 10001- | |
| 47 | 04020-01842 | PIN,DOWEL | 10001- | |
| 48 | 562-22-12920 | O-RING (K10) | 10001- | |
| 49 | 01010-62465 | BOLT | 10001- | |
| 50 | 01643-32460 | WASHER | 10001- |
