| Item | Part No. | Part Name | Qty | Serial No. |

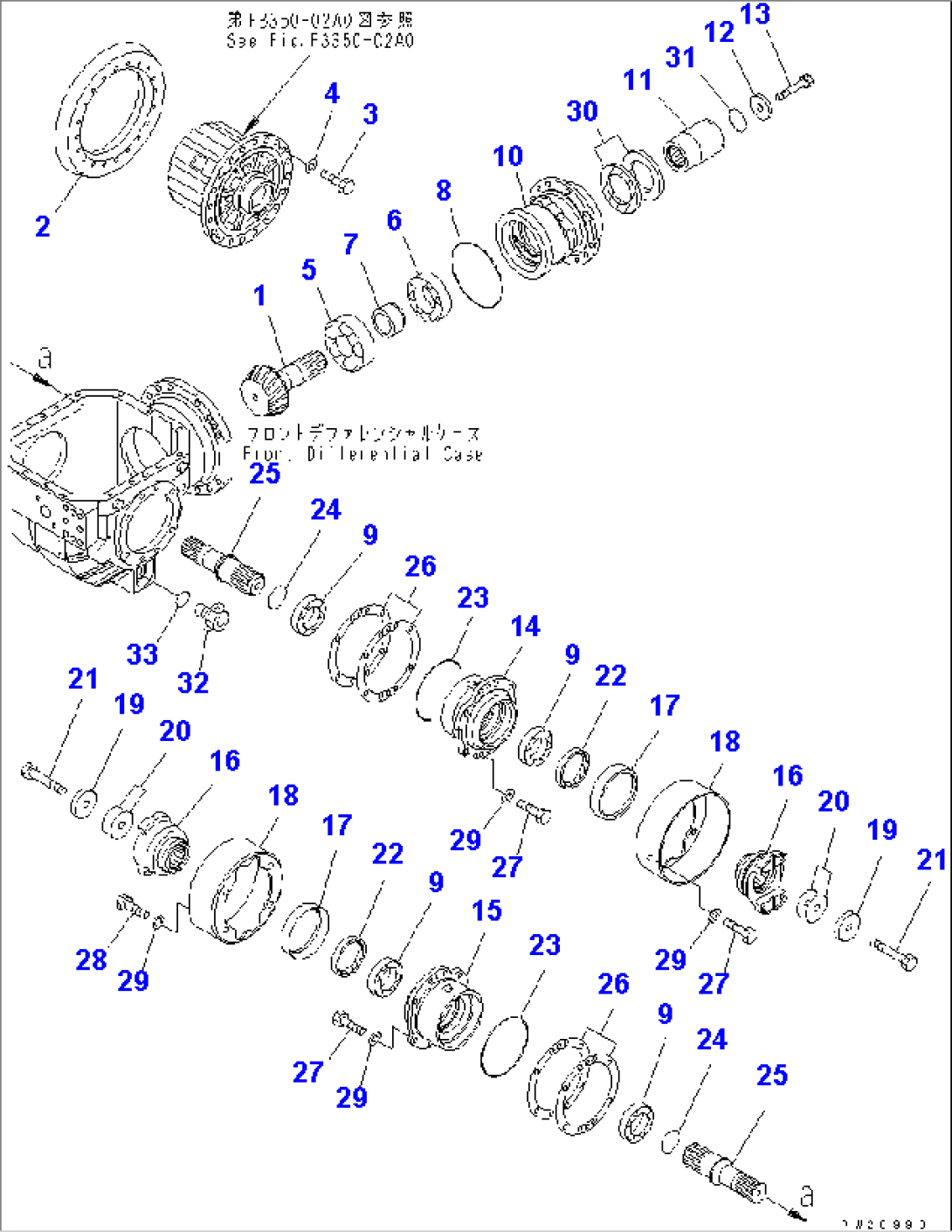

| (56D-27-11001) | DIFFERENTIAL ASS'Y | 1001-1509 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3350-01A0 TO F3350-03A0. | ||||
| 56D-27-11500 | PINION ASS'Y | 1001-@ | ||
| 1 | \6\ | PINION | 1001-@ | |
| 2 | \6\ | GEAR | 1001-@ | |
| 3 | 01010-61440 | BOLT | 1001-@ | |
| 4 | 01643-31445 | WASHER | 1001-@ | |
| 5 | 56D-23-16430 | BEARING | 1001-@ | |
| 6 | 418-22-11810 | BEARING | 1001-@ | |
| 7 | 56D-22-16451 | SPACER | 1001-@ | |
| 8 | 07000-15180 | O-RING | 1001-@ | |
| 9 | 417-22-11850 | BEARING | 1001-@ | |
| 10 | 56D-27-11351 | CAGE | 1001-@ | |
| 11 | 56D-27-11231 | COUPLING | 1001-@ | |
| 12 | 56D-27-11270 | HOLDER | 1001-@ | |
| 13 | 01011-62020 | BOLT | 1001-@ | |
| 14 | 56D-27-11321 | CARRIER,L.H. | 1001-@ | |
| 15 | 56D-27-11312 | CARRIER,R.H. | 1001-@ | |
| 16 | 56D-27-11612 | COUPLING | 1001-@ | |
| 17 | 56D-27-11870 | DEFLECTOR | 1001-@ | |
| 18 | 56D-27-11881 | COVER | 1001-@ | |
| 19 | 423-22-21240 | WASHER | 1001-@ | |
| 20 | 23W-22-21560 | SHIM, 0.05MM | 1001-@ | |
| 20 | 23W-22-21570 | SHIM, 0.2MM | 1001-@ | |
| 20 | 23W-22-21580 | SHIM, 0.5MM | 1001-@ | |
| 21 | 01011-62020 | BOLT | 1001-@ | |
| 22 | 56B-27-11910 | SEAL | 1001-@ | |
| 23 | 07000-15165 | O-RING | 1001-@ | |
| 24 | 07000-15055 | O-RING | 1001-@ | |
| 25 | 56D-27-11410 | SHAFT | 1001-@ | |
| 26 | 23W-22-21460 | SHIM, 0.05MM | 1001-@ | |
| 26 | 23W-22-21470 | SHIM, 0.2MM | 1001-@ | |
| 26 | 23W-22-21480 | SHIM, 0.3MM | 1001-@ | |
| 26 | 23W-22-21490 | SHIM, 0.8MM | 1001-@ | |
| 27 | 01010-61440 | BOLT | 1001-@ | |
| 28 | 01010-61445 | BOLT | 1001-@ | |
| 29 | 01643-31445 | WASHER | 1001-@ | |
| 30 | 56B-22-11750 | SEAL | 1001-@ | |
| 31 | 07000-15050 | O-RING | 1001-@ | |
| 32 | 07044-13620 | PLUG | 1001-@ | |
| 33 | 07002-13634 | O-RING | 1001-@ |
