| Item | Part No. | Part Name | Qty | Serial No. |
| (417-22-20001) | AXLE ASS'Y,FRONT | 50001- | ||

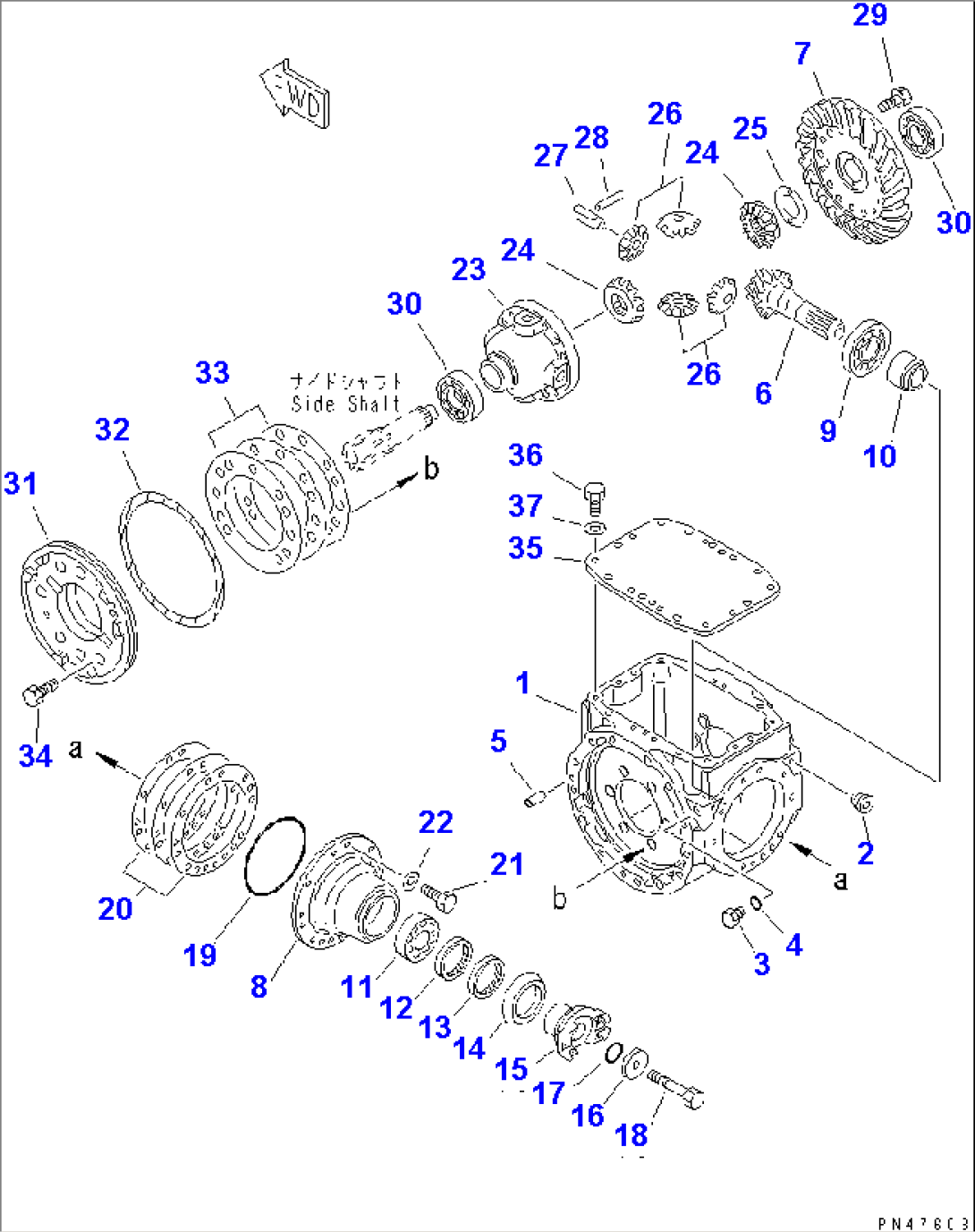

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3121. | ||||
| 417-22-21000 | DIFFERENTIAL ASS'Y | 50001- | ||
| 1 | 417-22-13113 | HOUSING | 50001- | |
| 2 | 07043-50211 | PLUG | 50001- | |
| 3 | 07040-11209 | PLUG | 50001- | |
| 4 | 07002-01223 | O-RING | 50001- | |
| 5 | 04020-01228 | PIN | 50001- | |
| 417-22-21200 | PINION ASS'Y | 50001- | ||
| 6 | \6\ | PINION | 50001- | |
| 7 | \6\ | GEAR,BEVEL | 50001- | |
| 8 | 417-22-21130 | CAGE | 50001- | |
| 9 | 417-22-11810 | BEARING | 50001- | |
| 10 | 417-22-11860 | SPACER | 50001- | |
| 11 | 417-22-11820 | BEARING | 50001- | |
| 12 | 07012-00065 | SEAL | 50001- | |
| 13 | 417-22-21760 | SEAL | 50001- | |
| 14 | 417-22-21310 | PROTECTOR | 50001- | |
| 15 | 417-22-21230 | COUPLING | 50001- | |
| 16 | 417-15-13770 | HOLDER | 50001- | |
| 17 | 07000-13035 | O-RING | 50001- | |
| 18 | 01011-61615 | BOLT | 50001- | |
| 19 | 07000-05160 | O-RING | 50001- | |
| 20 | 417-22-11360 | SHIM, 0.05MM | 50001- | |
| 20 | 417-22-11370 | SHIM, 0.2MM | 50001- | |
| 20 | 417-22-11380 | SHIM, 0.3MM | 50001- | |
| 20 | 417-22-11390 | SHIM, 0.8MM | 50001- | |
| 21 | 01010-61235 | BOLT | 50001- | |
| 22 | 01643-31232 | WASHER | 50001- | |
| 23 | 417-22-11513 | CARRIER | 50001- | |
| 24 | 417-22-11432 | GEAR | 50001- | |
| 25 | 417-22-11530 | WASHER | 50001- | |
| 26 | 417-22-11420 | PINION | 50001- | |
| 27 | 417-22-11410 | SHAFT | 50001- | |
| 28 | 417-22-11442 | PIN | 50001- | |
| 29 | 01010-61645 | BOLT | 50001- | |
| 30 | 417-22-11850 | BEARING | 50001- | |
| 31 | 417-22-11162 | CARRIER | 50001- | |
| 32 | 417-33-11430 | RING | 50001- | |
| 33 | 417-22-11461 | SHIM, 0.07MM | 50001- | |
| 33 | 417-22-11471 | SHIM, 0.2MM | 50001- | |
| 33 | 417-22-11481 | SHIM, 0.3MM | 50001- | |
| 33 | 417-22-11491 | SHIM, 0.8MM | 50001- | |
| 34 | 01010-61230 | BOLT | 50001- | |
| 35 | 417-22-13121 | COVER | 50001- | |
| 36 | 01010-61230 | BOLT | 50001- | |
| 37 | 01643-31232 | WASHER | 50001- |
