| Item | Part No. | Part Name | Qty | Serial No. |

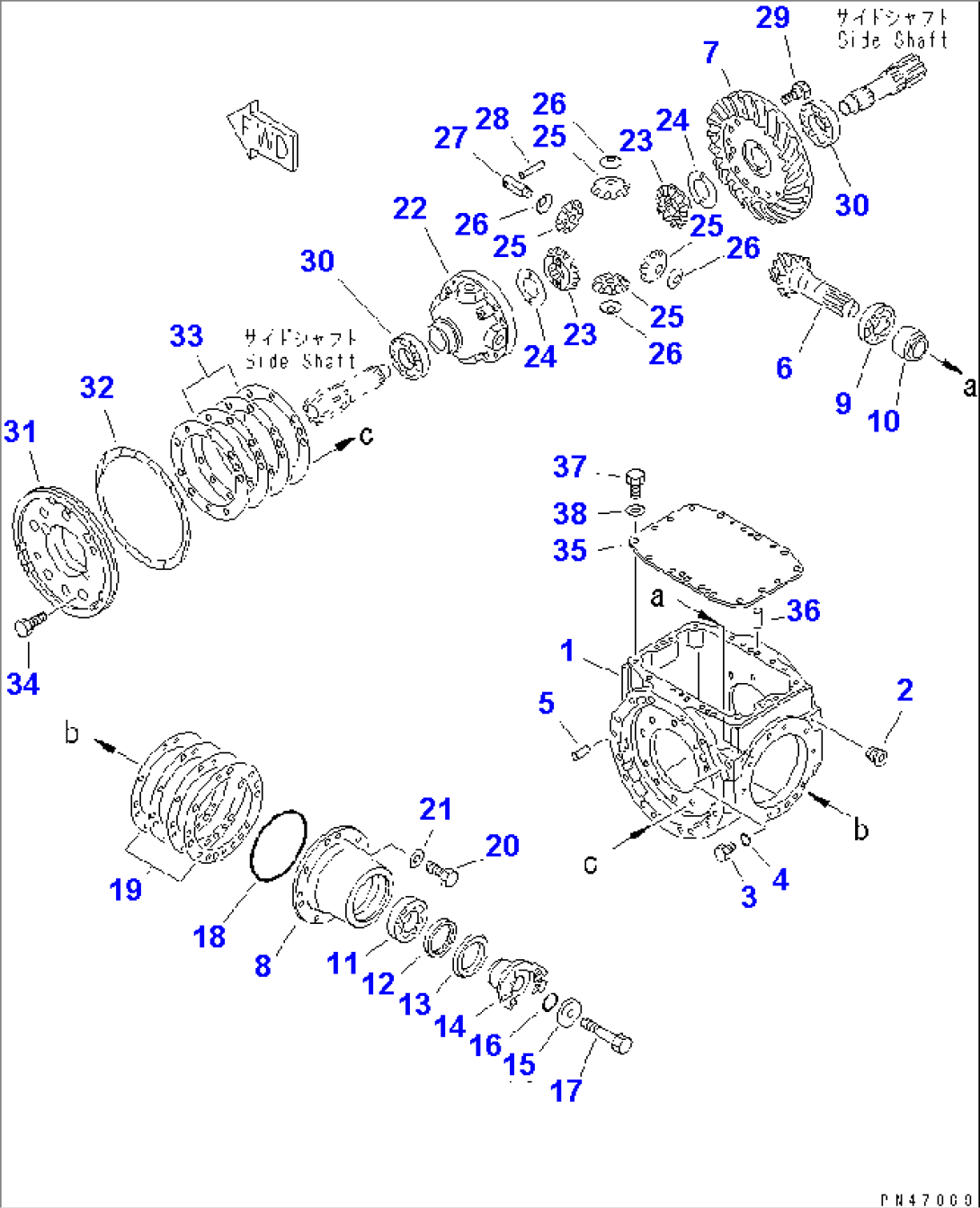

| (418-22-20010) | AXLE ASS'Y,FRONT | 50001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3121. | ||||
| 418-22-21040 | DIFFERENTIAL ASS'Y,FRONT | 50001- | ||
| 1 | 418-22-23110 | HOUSING | 50001- | |
| 2 | 07043-50211 | PLUG | 50001- | |
| 3 | 07040-11209 | PLUG | 50001- | |
| 4 | 07002-01223 | O-RING | 50001- | |
| 5 | 04020-01228 | PIN,DOWEL | 50001- | |
| 418-22-21600 | PINION ASS'Y | 50001- | ||
| 6 | \6\ | PINION | 50001- | |
| 7 | \6\ | GEAR,BEVEL | 50001- | |
| 8 | 418-22-21130 | CAGE | 50001- | |
| 9 | 418-22-11810 | BEARING | 50001- | |
| 10 | 418-22-11861 | SPACER | 50001- | |
| 11 | 418-22-11820 | BEARING | 50001- | |
| 12 | 418-22-21330 | SEAL | 50001- | |
| 13 | 418-22-21310 | PROTECTOR | 50001- | |
| 14 | 418-22-21250 | COUPLING | 50001- | |
| 15 | 417-15-13770 | HOLDER | 50001- | |
| 16 | 07000-03040 | O-RING | 50001- | |
| 17 | 01011-61615 | BOLT | 50001- | |
| 18 | 07000-05160 | O-RING | 50001- | |
| 19 | 417-22-11360 | SHIM, 0.05MM | 50001- | |
| 19 | 417-22-11370 | SHIM, 0.2MM | 50001- | |
| 19 | 417-22-11380 | SHIM, 0.3MM | 50001- | |
| 19 | 417-22-11390 | SHIM, 0.8MM | 50001- | |
| 20 | 01010-61235 | BOLT | 50001- | |
| 21 | 01643-31232 | WASHER | 50001- | |
| 22 | 418-22-11513 | CARRIER | 50001- | |
| 23 | 418-22-11431 | GEAR | 50001- | |
| 24 | 418-22-11531 | WASHER | 50001- | |
| 25 | 419-22-11420 | PINION | 50001- | |
| 26 | 418-22-11550 | WASHER | 50001- | |
| 27 | 418-22-11412 | SHAFT | 50001- | |
| 28 | 418-22-11440 | PIN | 50001- | |
| 29 | 01010-61645 | BOLT | 50001- | |
| 30 | 417-22-11850 | BEARING | 50001- | |
| 31 | 418-22-21160 | CARRIER | 50001- | |
| 32 | 418-33-21430 | RING | 50001- | |
| 33 | 418-22-21510 | SHIM, 0.05MM | 50001- | |
| 33 | 418-22-21520 | SHIM, 0.2MM | 50001- | |
| 33 | 418-22-21530 | SHIM, 0.3MM | 50001- | |
| 33 | 418-22-21540 | SHIM, 0.8MM | 50001- | |
| 34 | 01010-61230 | BOLT | 50001- | |
| 35 | 418-22-23120 | COVER | 50001- | |
| 36 | 04020-01228 | PIN,DOWEL | 50001- | |
| 37 | 01010-61230 | BOLT | 50001- | |
| 38 | 01643-31232 | WASHER | 50001- |
