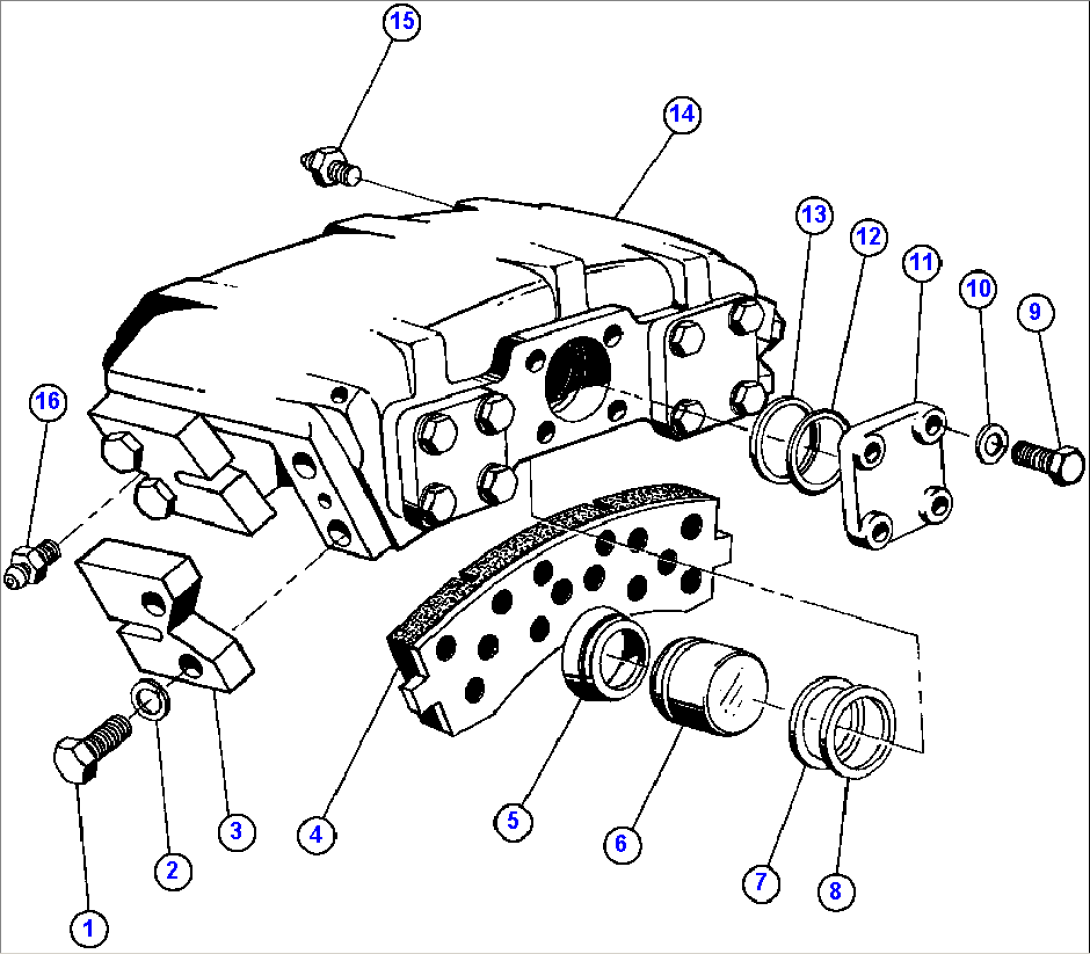

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VS5876 | CAPSCREW | ||
| 2 | VJ8911 | WASHER | ||
| 3 | VE1029 | PLATE, THRUST | ||
| 4 | VE7375 | LINING MATERIAL | ||
| 5 | BOOT, SILICONE (1) | |||
| 6 | VS5880 | PISTON | ||
| 7 | RETAINER (1) | |||
| 8 | PACKING (1) | |||
| 9 | VE0325 | CAPSCREW | ||
| 10 | VE0324 | WASHER | ||
| 11 | VE0323 | CAP | ||
| 12 | RETAINER (1) | |||
| 13 | PACKING (1) | |||
| 14 | PLATE, TORQUE | |||
| 15 | VJ8988 | BLEEDER SCREW | ||
| 16 | VY7502 | CONNECTOR (2) | ||
| NS|17 | RK0221 | NOTE: (1) INCLUDED IN RK0221 SEAL KIT. | ||
| NS|18 | (2) NOT INCLUDED IN PB5536 BRAKE ASSM. | |||
| NS|19 | (QUANTITIES SHOWN ARE FOR ONE CALIPER ASSM ONLY.) |
