| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81635 | BOLT | 1001- | |
| 2 | 01643-31645 | WASHER | 1001- | |
| 3 | 01010-81650 | BOLT | 1001- | |
| 4 | 01643-31645 | WASHER | 1001- | |
| 5 | 56D-89-12120 | BRACKET,L.H. | 1001- | |
| 6 | 56D-89-12131 | BRACKET,R.H. | 1001- | |
| 7 | 56D-89-12110 | GUARD | 1001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300tn 1 s/n 1001 up
- Air conditioner and drive shaft guard
- Front drive shsft guard and breather piping
Поиск по каталогу

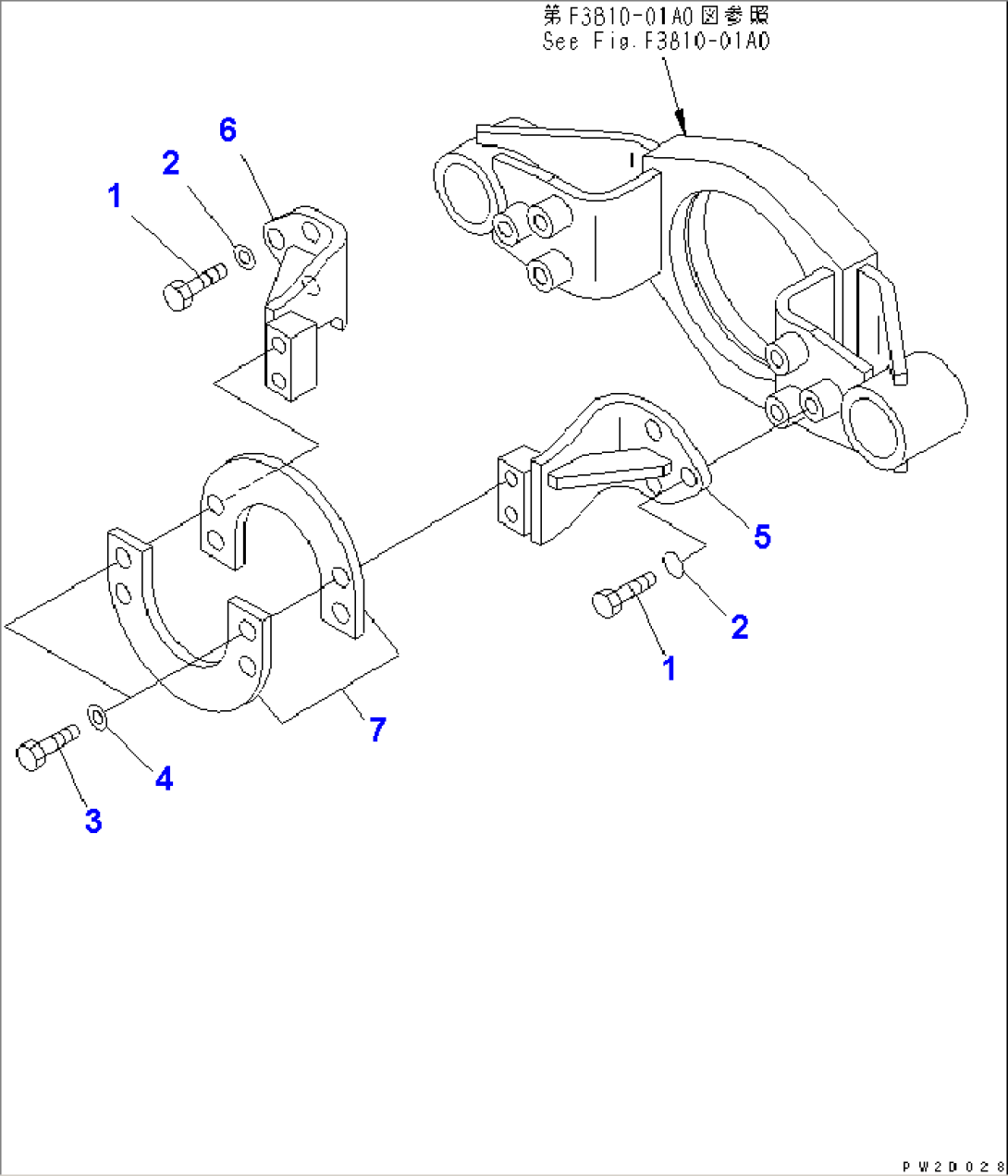

FRONT DRIVE SHSFT GUARD AND BREATHER PIPING
