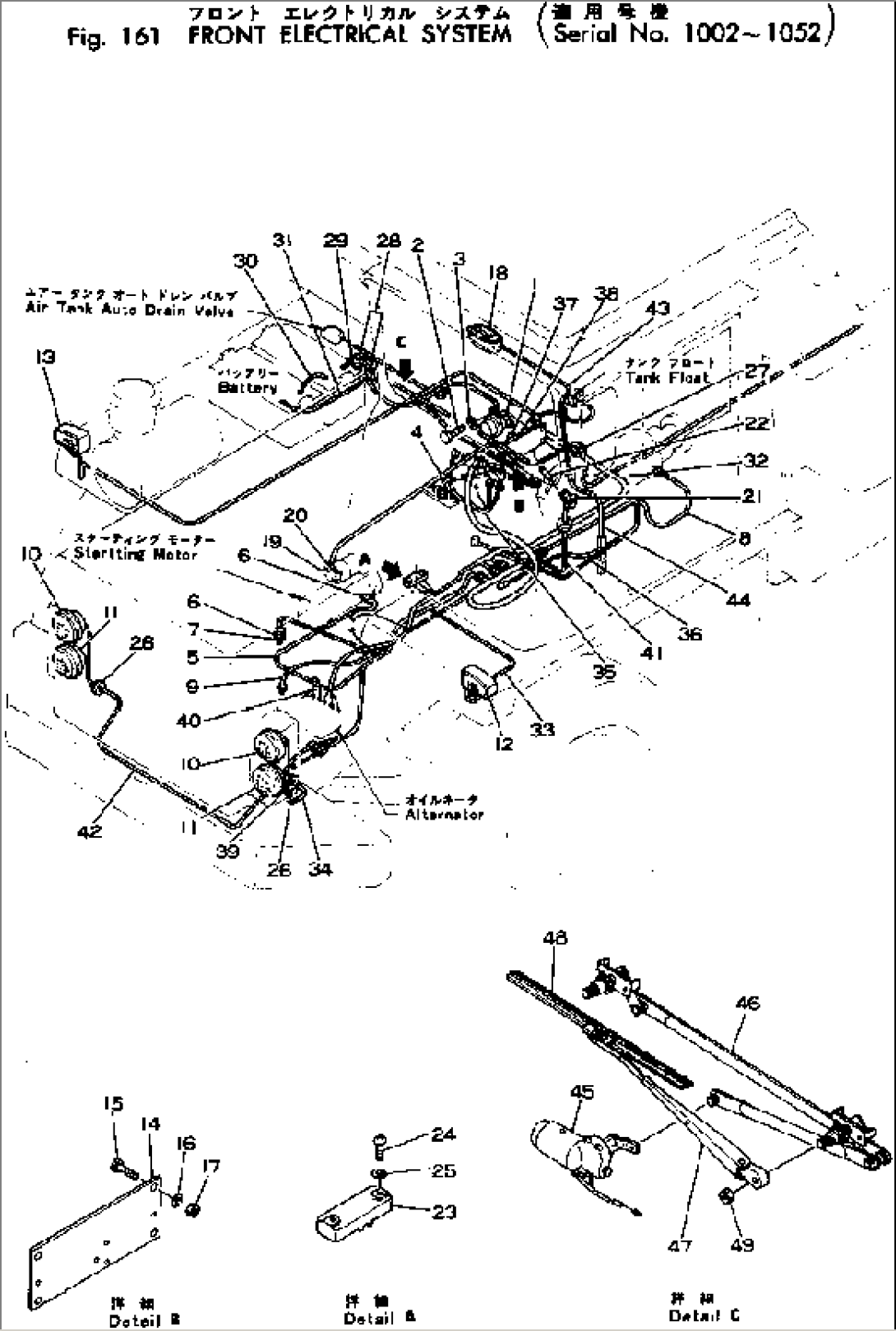

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08088-00000 | SWITCH,BATTERY RELAY | 1002-1052 | |
| 2 | 01010-30816 | BOLT | 1002-@ | |
| 3 | 01602-00825 | WASHER | 1002-@ | |
| 4 | 566-06-15270 | TUBE | 1002-@ | |
| 5 | 566-06-15212 | TUBE | 1002-@ | |
| 6 | 07213-50510 | CONNECTOR | 1002-1052 | |
| 7 | 565-06-13211 | ADAPTER | 1002-1052 | |
| 8 | 08603-00040 | CABLE,SPEEDOMETER | 1002-@ | |
| 9 | 08604-10023 | CABLE,TACHOMETER | 1002-1052 | |
| 10 | 281-06-13500 | LAMP ASS'Y,HEAD | 1002-1052 | |
| 10 | 411-06-12710 | BODY | 1002-1052 | |
| 10 | 232-88-09470 | HOLDER | 1002-1052 | |
| 10 | 281-06-13320 | BULB | 1002-1052 | |
| 11 | 281-06-13600 | LAMP ASS'Y | 1002-1052 | |
| 11 | 08128-00003 | HOLDER | 1002-1052 | |
| 11 | 281-06-13330 | BULB | 1002-1052 | |
| 12 | 08130-62400 | LAMP ASS'Y | 1002-@ | |
| 12 | 08105-12420 | BULB, 25W | 1002-@ | |
| 12 | 08110-12410 | BULB, 12W | 1002-@ | |
| 13 | 08130-82400 | LAMP ASS'Y | 1002-@ | |
| 13 | 08105-12420 | BULB, 25W | 1002-@ | |
| 13 | 08110-12410 | BULB, 12W | 1002-@ | |
| 14 | 567-06-13110 | PLATE | 1002-@ | |
| 15 | 01010-30616 | BOLT | 1002-@ | |
| 16 | 01602-00619 | WASHER | 1002-@ | |
| 17 | 01580-00605 | NUT | 1002-1052 | |
| 18 | 08141-12400 | LAMP,ROOM | .-@ | |
| 18 | \0\566-06-13240 | LAMP,ROOM | 1002-. | |
| 18 | 08116-02410 | BULB, 10W | 1002-@ | |
| 19 | 08038-02027 | CAP | 1002-@ | |
| 20 | 08038-00035 | CAP | 1002-@ | |
| 21 | 566-06-12540 | SWITCH,BACK HORN | 1002-@ | |
| 22 | 566-06-11800 | SWITCH ASS'Y | 1002-@ | |
| 22 | (\2\566-06-11501) | SWITCH ASS'Y,LOCK-UP | (.-1066) | |
| 22 | (\2\566-06-11500) | SWITCH ASS'Y,LOCK-UP | (1002-.) | |
| 23 | 566-06-13790 | BLOCK | 1002-@ | |
| 24 | 01220-40620 | SCREW | 1002-@ | |
| 25 | 01602-00619 | WASHER | 1002-@ | |
| 26 | 08037-01008 | GROMMET | 1002-@ | |
| 27 | 08037-01610 | GROMMET | 1002-@ | |
| 28 | 08037-02512 | GROMMET | 1002-@ | |
| 29 | 567-06-12320 | CABLE | 1002-@ | |
| 30 | 281-06-11220 | CABLE | 1002-@ | |
| 31 | 567-06-12310 | CABLE | 1002-@ | |
| 32 | 567-06-12130 | HARNESS | 1002-1052 | |
| 33 | 567-06-12140 | HARNESS | 1002-1052 | |
| 34 | 567-06-12150 | HARNESS | 1002-1052 | |
| 35 | 567-06-12170 | HARNESS | 1002-1052 | |
| 36 | 567-06-12180 | HARNESS | 1002-1052 | |
| 37 | 566-06-12330 | WIRE | 1002-@ | |
| 38 | 566-06-12340 | WIRE | 1002-@ | |
| 39 | 08029-02520 | WIRE | 1002-@ | |
| 40 | 566-06-12590 | WIRE | 1002-@ | |
| 41 | 566-06-12860 | HARNESS | 1002-@ | |
| 42 | 567-06-12160 | HARNESS | 1002-1052 | |
| 43 | 566-06-12880 | WIRE | 1002-@ | |
| 44 | 566-06-12890 | LAMP | 1002-@ | |
| 45 | 566-06-16213 | MOTOR | 1002-@ | |
| 46 | 566-06-16242 | LINK | 1002-@ | |
| 47 | 566-06-16222 | ARM | 1002-@ | |
| 48 | 566-06-16232 | BLADE | 1002-@ | |
| 49 | 566-06-16260 | NUT | 1002-@ |
