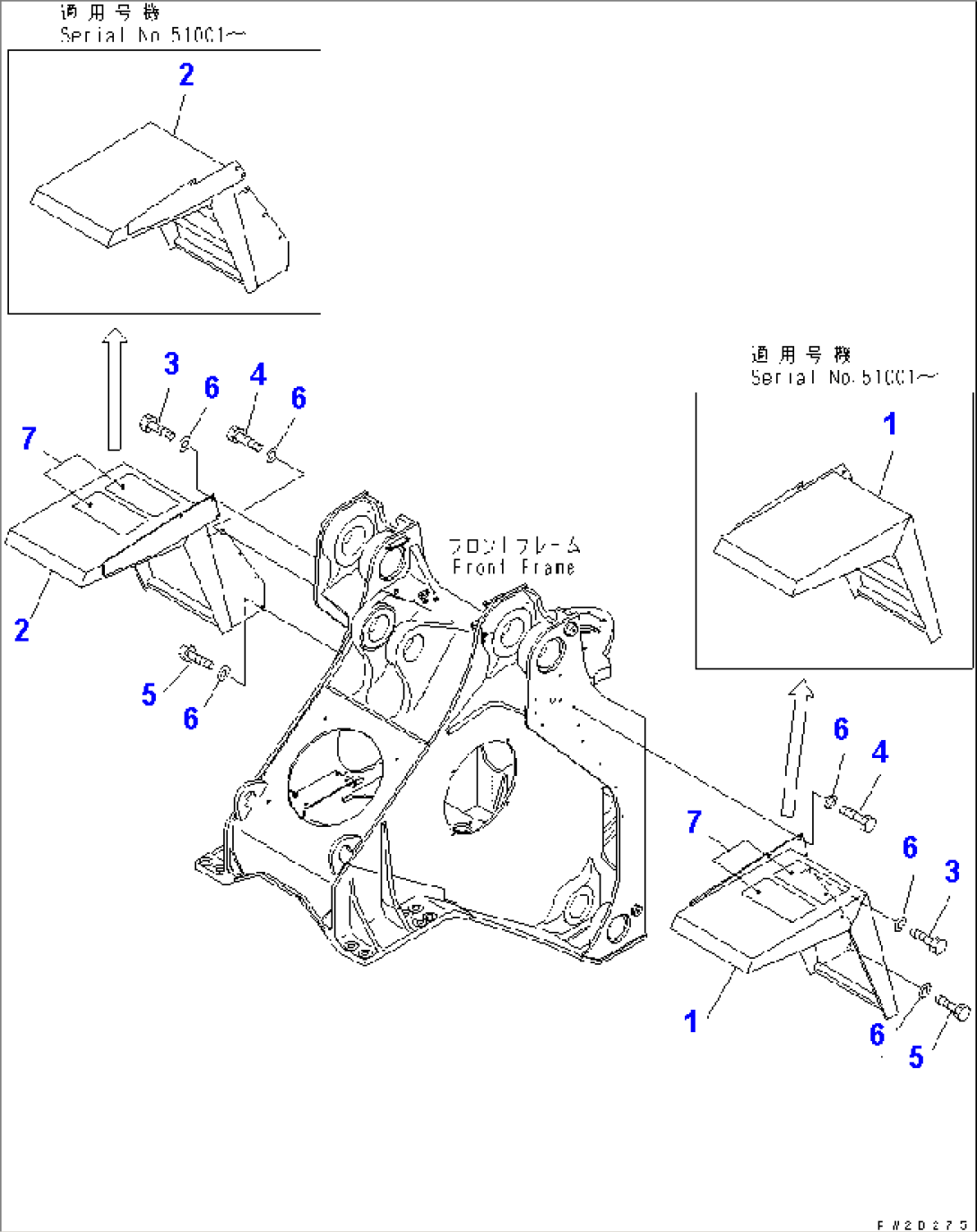

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-54-24710 | FENDER,L.H. | 51001- | |
| 428-54-24151 | FENDER,L.H. | 50001-51000 | ||
| 2 | 428-54-24720 | FENDER,R.H. | 51001- | |
| 428-54-24161 | FENDER,R.H. | 50001-51000 | ||
| 3 | 01010-81425 | BOLT | 50001- | |
| 4 | 01010-81440 | BOLT | 50001- | |
| 5 | 01010-81445 | BOLT | 50001- | |
| 6 | 01643-31445 | WASHER | 50001- | |
| 7 | 428-T86-1310 | PLATE | 50001- |
