| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-54-55132 | Fender, L.H. | 60001- | |
| 2 | 42A-54-55142 | Fender, R.H. | 60001- | |
| 3 | 42A-54-55151 | Plate | 60001- | |
| 4 | 01010-81035 | Bolt | 60001- | |
| 5 | 01643-31032 | Washer | 60001- | |
| 6 | 130-43-64260 | Collar | 60001- | |
| 7 | 01580-11008 | Nut | 60001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa50 6 s/n 60001 up
- Guards and covers
- Front fender (#60001 )
Поиск по каталогу

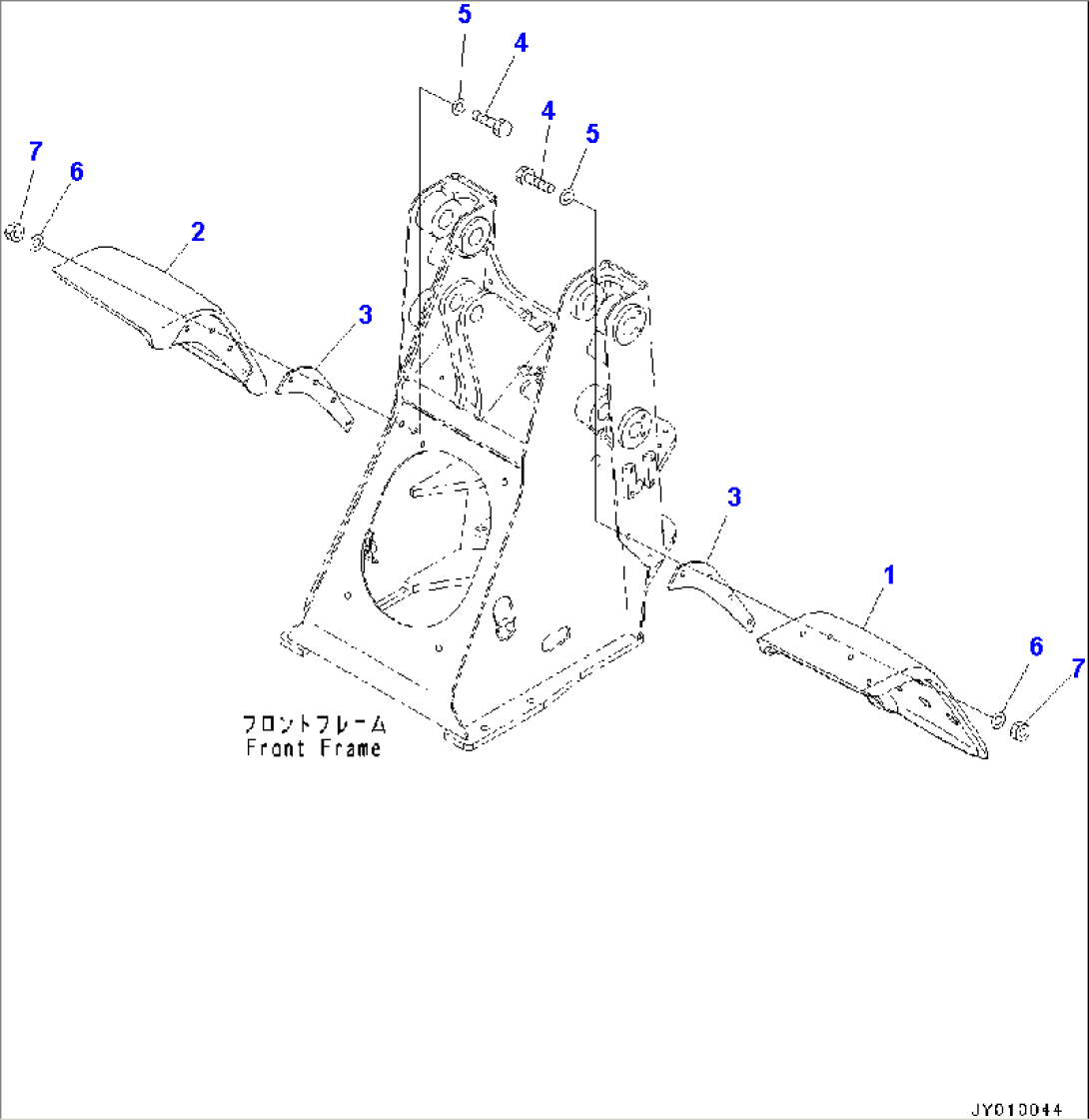

Front Fender (#60001-)
