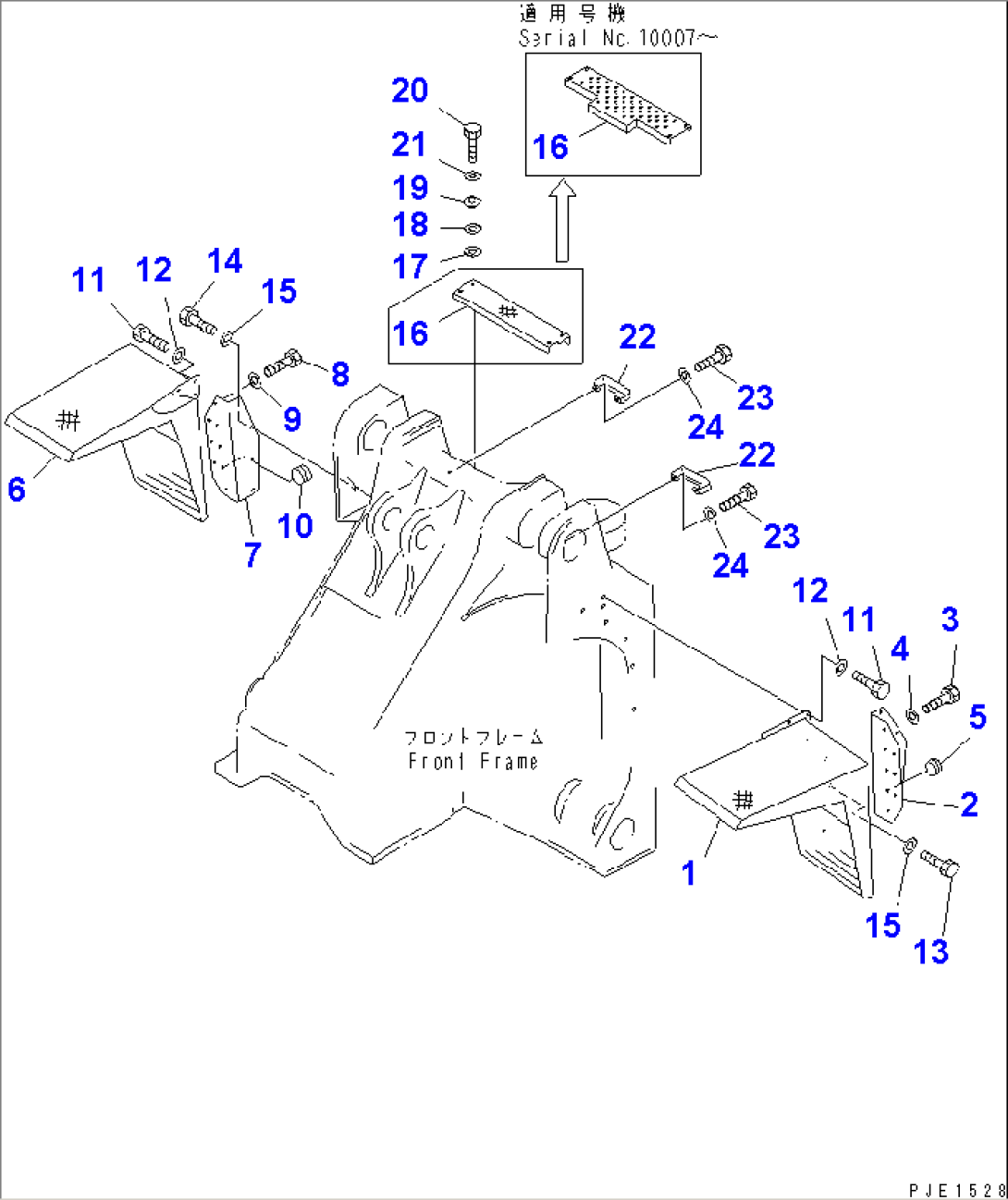

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-54-13371 | FENDER,L.H. | 10001- | |
| 2 | 427-54-13380 | BRACKET,L.H. | 10001- | |
| 3 | 01010-81230 | BOLT | 10001- | |
| 4 | 124-54-26540 | WASHER | 10001- | |
| 5 | 09415-05016 | CAP | 10001- | |
| 6 | 427-54-13391 | FENDER,R.H. | 10001- | |
| 7 | 427-54-13410 | BRACKET,R.H. | 10001- | |
| 8 | 01010-81230 | BOLT | 10001- | |
| 9 | 124-54-26540 | WASHER | 10001- | |
| 10 | 09415-05016 | CAP | 10001- | |
| 11 | 01010-81640 | BOLT | 10001- | |
| 12 | 01643-31645 | WASHER | 10001- | |
| 13 | 01010-81245 | BOLT | 10001- | |
| 14 | 01010-81230 | BOLT | 10001- | |
| 15 | 01643-31232 | WASHER | 10001- | |
| 16 | 427-54-12592 | STEP | 10007- | |
| 16 | \0\427-54-12591 | STEP | 10001-10006 | |
| 17 | 01640-22232 | WASHER | 10001- | |
| 18 | 415-46-11380 | CUSHION | 10001- | |
| 19 | 415-46-11370 | SPACER | 10001- | |
| 20 | 01010-81235 | BOLT | 10001- | |
| 21 | 01643-31232 | WASHER | 10001- | |
| 22 | 427-54-12660 | STEP | 10001- | |
| 23 | 01010-81230 | BOLT | 10001- | |
| 24 | 01643-31232 | WASHER | 10001- |
