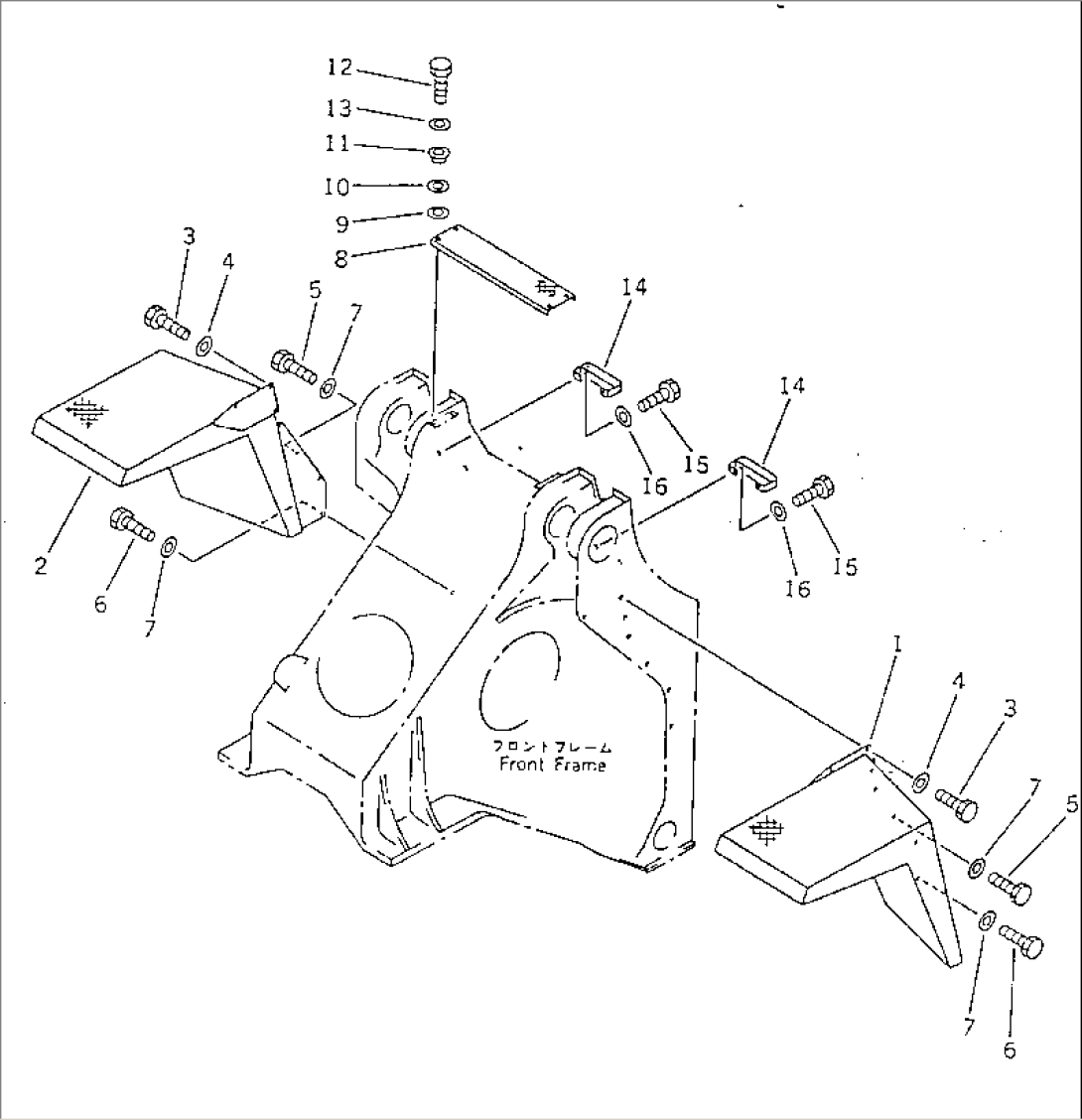

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-54-11111 | FENDER,L.H. | 10001- | |
| 2 | 428-54-11121 | FENDER,R.H. | 10001- | |
| 3 | 01010-51440 | BOLT | 10001- | |
| 4 | 01643-31445 | WASHER | 10001- | |
| 5 | 01010-51425 | BOLT | 10001- | |
| 6 | 01010-51445 | BOLT | 10001- | |
| 7 | 01643-31445 | WASHER | 10001- | |
| 8 | 428-54-12560 | STEP | 10001- | |
| 9 | 01640-22232 | WASHER | 10001- | |
| 10 | 427-46-11550 | CUSHION | 10001- | |
| 11 | 415-46-11370 | SPACER | 10001- | |
| 12 | 01010-51235 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 427-54-12660 | STEP | 10001- | |
| 15 | 01010-51230 | BOLT | 10001- | |
| 16 | 01643-31232 | WASHER | 10001- |
