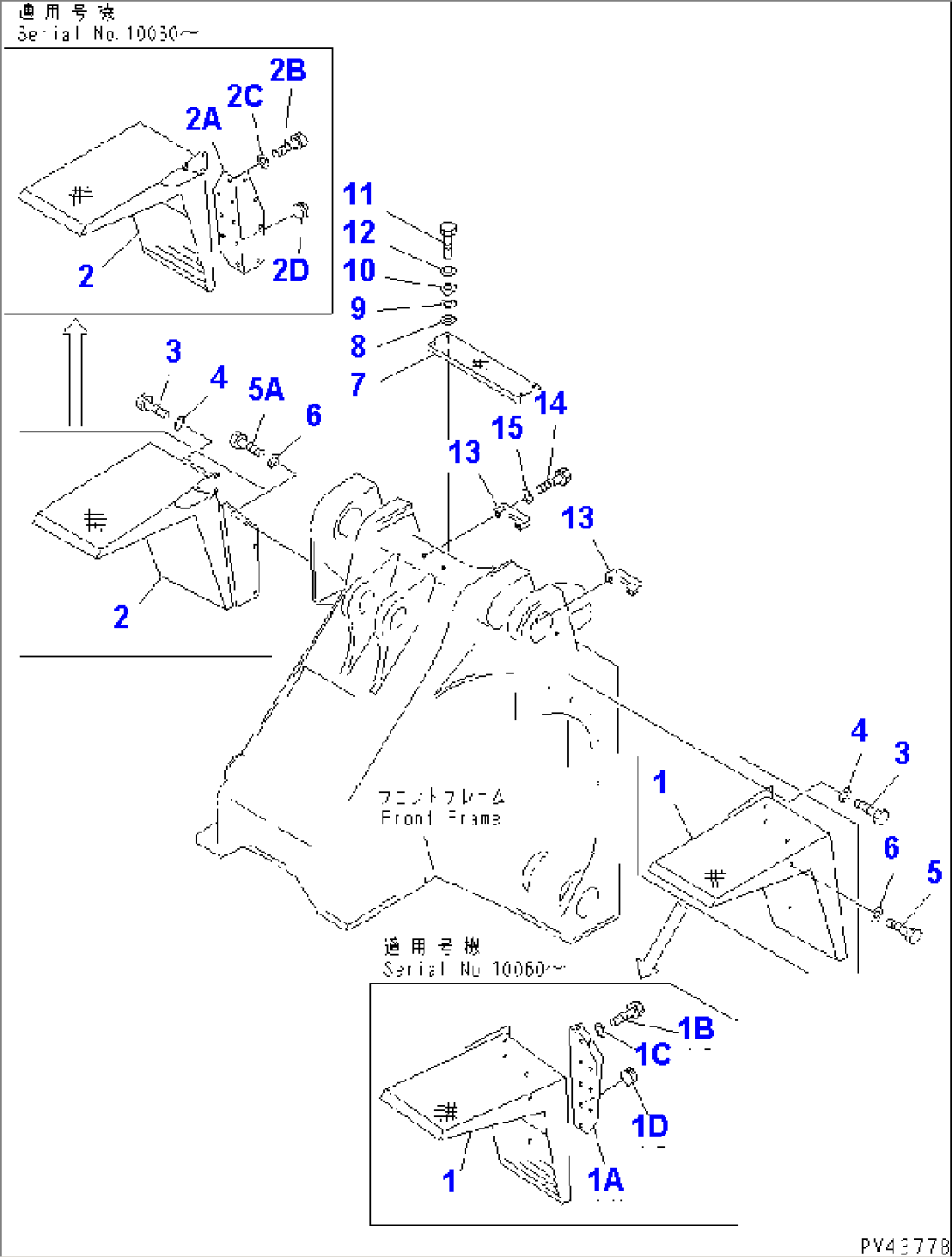

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-54-13371 | FENDER,L.H. | 10635- | |
| 427-54-13370 | FENDER,L.H. | 10060-10634 | ||
| 427-54-11161 | FENDER,L.H. | 10001-10059 | ||
| 1A | 427-54-13380 | BRACKET,L.H. | 10060- | |
| 1B | 01010-81230 | BOLT | 10060- | |
| 1C | 124-54-26540 | WASHER | 10060- | |
| 1D | 09415-05016 | CAP | 10060- | |
| 2 | 427-54-13391 | FENDER,R.H. | 10635- | |
| 427-54-13390 | FENDER,R.H. | 10060-10634 | ||
| 427-54-11171 | FENDER,R.H. | 10001-10059 | ||
| 2A | 427-54-13410 | BRACKET,R.H. | 10060- | |
| 2B | 01010-81230 | BOLT | 10060- | |
| 2C | 124-54-26540 | WASHER | 10060- | |
| 2D | 09415-05016 | CAP | 10060- | |
| 3 | 01010-81640 | BOLT | 10635- | |
| 01010-51660 | BOLT | 10001-10634 | ||
| 4 | 01643-31645 | WASHER | 10001- | |
| 5 | 01010-81245 | BOLT | 10036- | |
| 01010-51225 | BOLT | 10001-10035 | ||
| 5A | 01010-81230 | BOLT | 10036- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 427-54-12591 | STEP | 10001- | |
| 8 | 01640-22232 | WASHER | 10001- | |
| 9 | 415-46-11380 | CUSHION | 10001- | |
| 10 | 415-46-11370 | SPACER | 10001- | |
| 11 | 01010-81235 | BOLT | 10001- | |
| 12 | 01643-31232 | WASHER | 10001- | |
| 13 | 427-54-12660 | STEP | 10001- | |
| 14 | 01010-81230 | BOLT | 10001- | |
| 15 | 01643-31232 | WASHER | 10001- |
