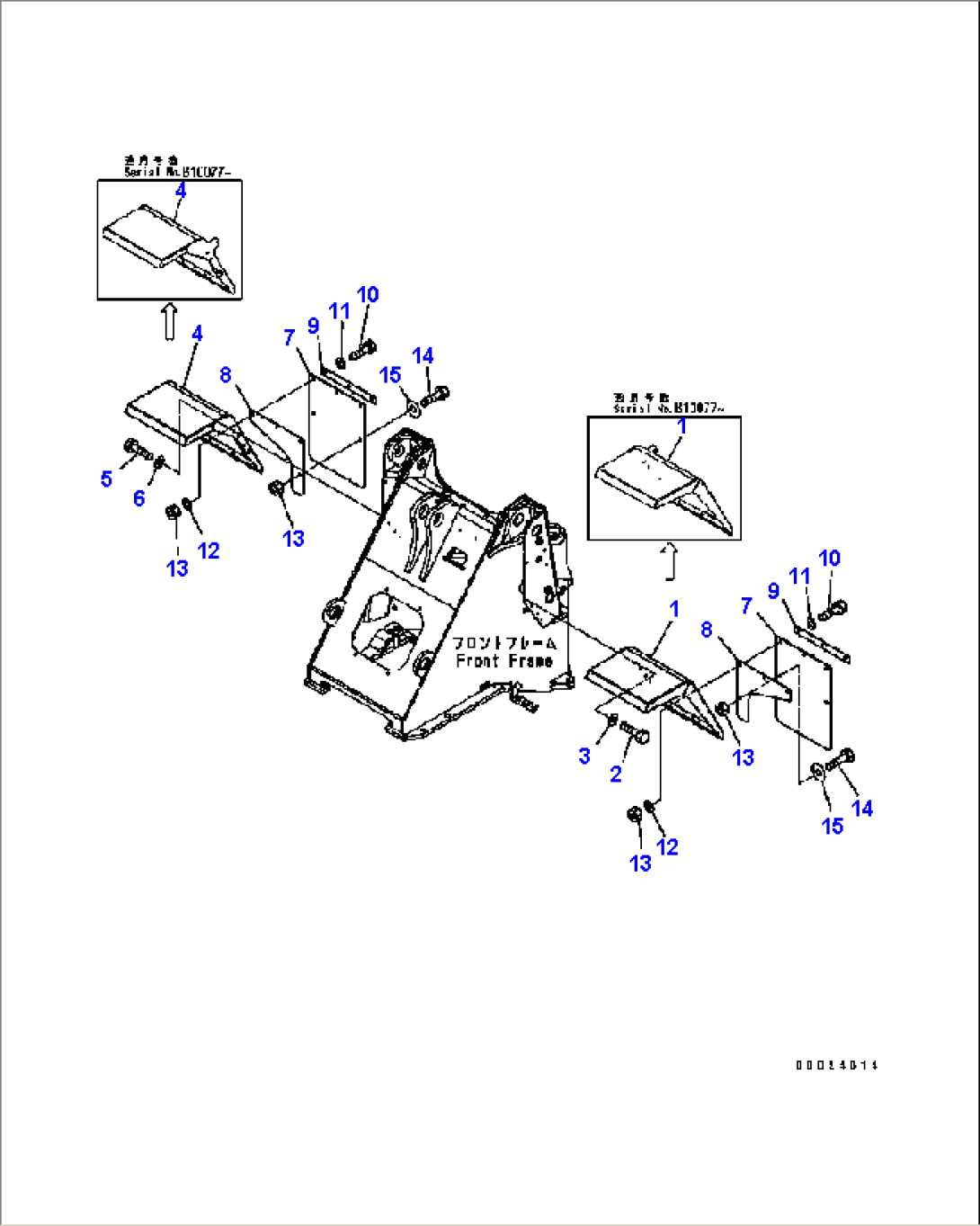

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-34132 | FENDER {L.H.} | B10077- | |
| 417-54-34131 | FENDER {L.H.} | B10001-B10076 | ||
| 2 | 01010-81025 | BOLT | B10001- | |
| 3 | 01643-31032 | WASHER | B10001- | |
| 4 | 417-54-34142 | FENDER {R.H.} | B10077- | |
| 417-54-34141 | FENDER {R.H.} | B10001-B10076 | ||
| 5 | 01010-81025 | BOLT | B10001- | |
| 6 | 01643-31032 | WASHER | B10001- | |
| 7 | 418-54-34660 | SHEET | B10001- | |
| 8 | 418-54-34670 | PLATE | B10001- | |
| 9 | 418-54-24570 | PLATE | B10001- | |
| 10 | 01010-81230 | BOLT | B10001- | |
| 11 | 01643-31232 | WASHER | B10001- | |
| 12 | 01643-31232 | WASHER | B10001- | |
| 13 | 01580-11210 | NUT | B10211- | |
| 01580-01210 | NUT | B10001-B10210 | ||
| 14 | 01010-81225 | BOLT | B10001- | |
| 15 | 416-03-11210 | WASHER | B10001- |
