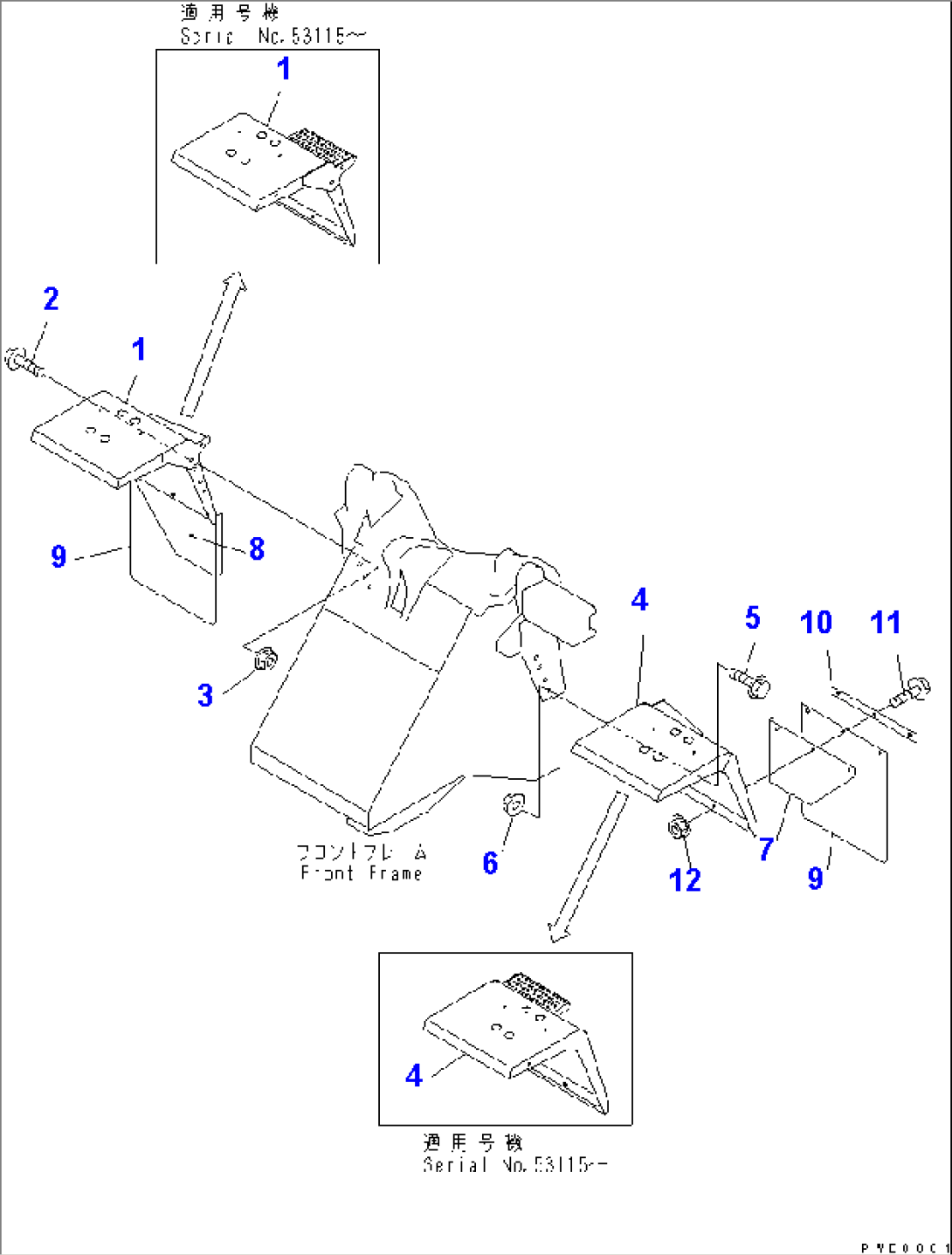

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-24851 | FENDER,R.H. | 53115- | |
| 1 | \0\417-54-24850 | FENDER,R.H. | 53001-53114 | |
| 2 | 01435-01230 | BOLT | 53001- | |
| 3 | 01584-01210 | NUT | 53001- | |
| 4 | 417-54-24861 | FENDER,L.H. | 53115- | |
| 4 | \0\417-54-24860 | FENDER,L.H. | 53001-53114 | |
| 5 | 01435-01230 | BOLT | 53001- | |
| 6 | 01584-01210 | NUT | 53001- | |
| 7 | 417-54-24790 | PLATE,L.H. | 53001- | |
| 8 | 417-54-24780 | PLATE,R.H. | 53001- | |
| 9 | 417-54-24830 | SHEET | 53001- | |
| 10 | 417-54-24840 | PLATE | 53001- | |
| 11 | 01435-01225 | BOLT | 53001- | |
| 12 | 01584-01210 | NUT | 53001- |
