| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-Z99-1111 | FENDER | 50001- | |
| 2 | 421-Z94-2180 | PLATE | 50001- | |
| 3 | 01435-01230 | BOLT | 50001- | |
| 4 | 01584-01210 | NUT | 50001- | |
| 5 | 01010-51230 | BOLT | 50001- | |
| 6 | 01643-31232 | WASHER | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa400 3a st s/n 50001 52999
- Frame and guard
- Front fender (tunnel spec.)(#50001 )
Поиск по каталогу

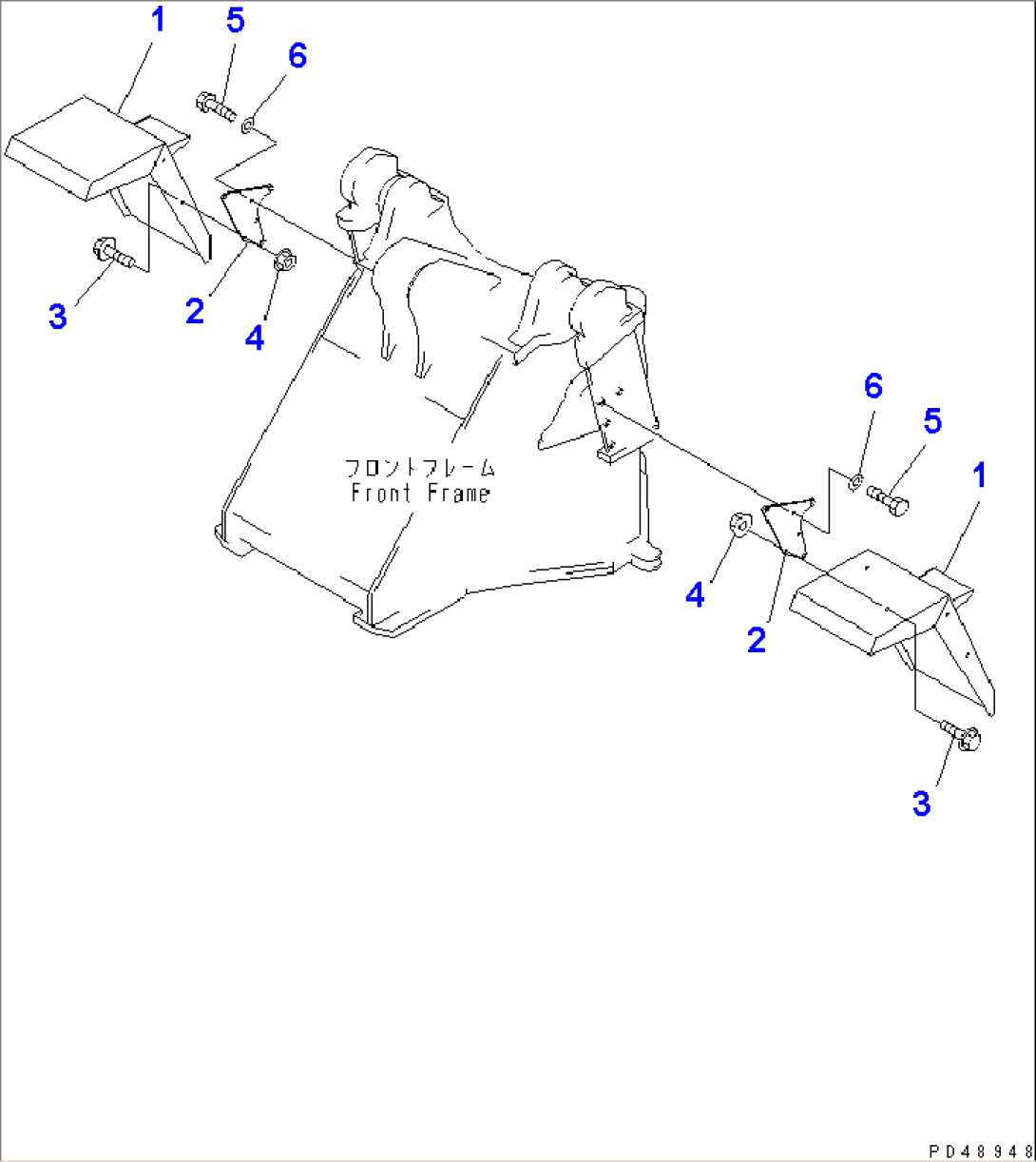

FRONT FENDER (TUNNEL SPEC.)(#50001-)
