| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-24870 | STOPPER,WHEEL | 50001- | |
| 2 | 417-54-24880 | SUPPORT,STOPPER | 50001- | |
| 3 | 01435-01020 | BOLT | 50001- | |
| 4 | 09450-00000 | CATCH | 50001- | |
| 5 | 09450-00002 | PIN | 50001- | |
| 6 | 04050-11610 | PIN,COTTER | 50001- | |
| 7 | 09415-03614 | CAP | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3 s/n 50001 up (parallel linkage spec.)
- Guard
- Front fender (wheel stopper)
Поиск по каталогу

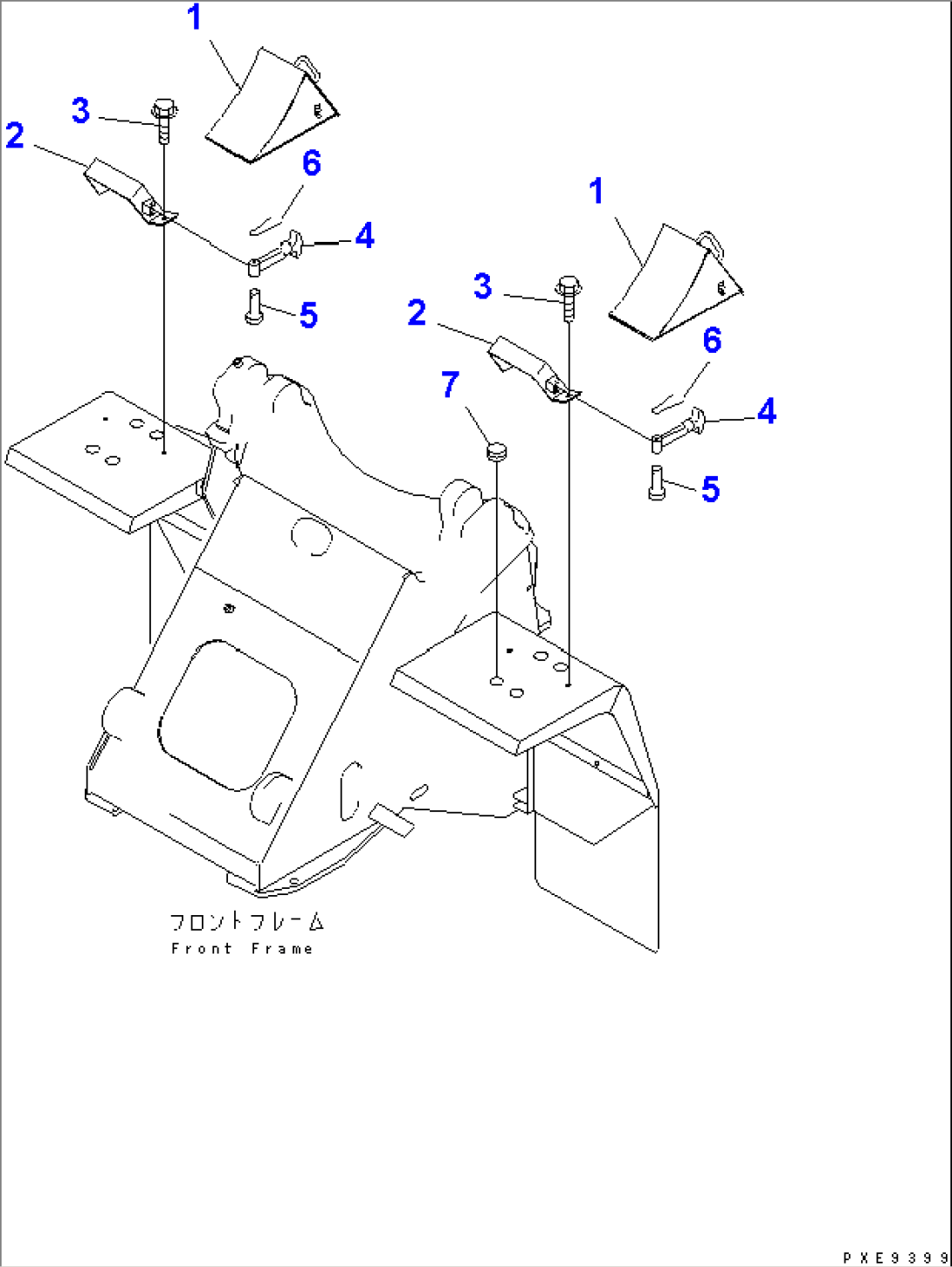

FRONT FENDER (WHEEL STOPPER)
