| Item | Part No. | Part Name | Qty | Serial No. |

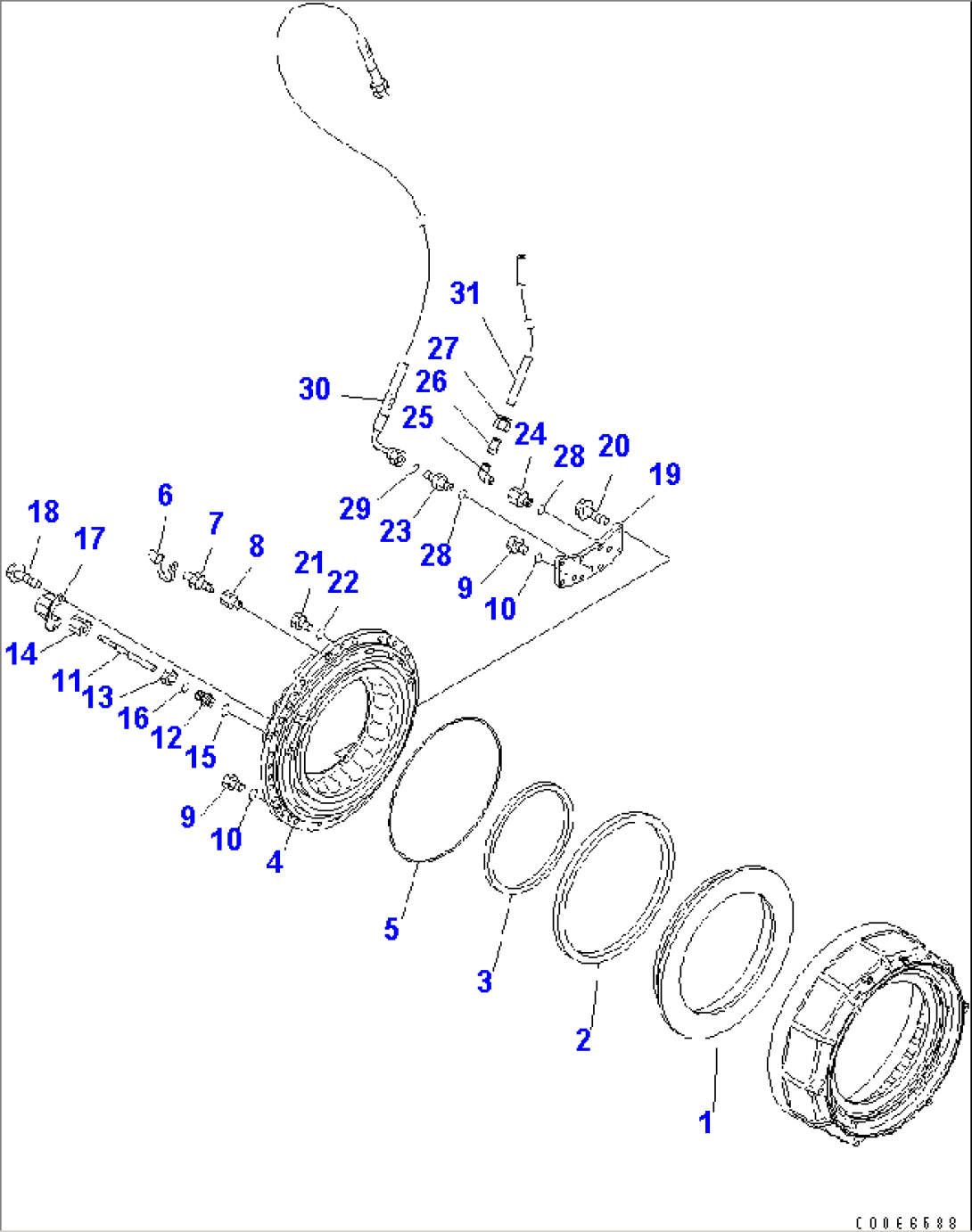

| (56C-27-22002) | FINAL AND BRAKE A. | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3360-01A0 TO F3360-06A0. | ||||
| (56C-27-24001) | FINAL AND BRAKE A.,L.H. | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3360-01A0 TO F3360-03A0. | ||||
| 1 | 56B-33-11121 | PISTON | 7001- | |
| 2 | 421-33-11440 | SEAL | 7001- | |
| 3 | 56B-33-11430 | SEAL | 7001- | |
| 4 | 56B-33-21120 | CYLINDER | 7001- | |
| 5 | 07000-15490 | O-RING | 7001- | |
| 6 | 566-32-11620 | CAP | 7001- | |
| 7 | 566-32-11430 | BLEEDER | 7001- | |
| 8 | 581-32-12140 | PLUG | 7001- | |
| 9 | 07040-11409 | PLUG | 7001- | |
| 10 | 07002-11423 | O-RING | 7001- | |
| 11 | 56B-33-11711 | SHAFT | 7001- | |
| 12 | 569-33-71720 | GUIDE | 7001- | |
| 13 | 01583-12414 | NUT | 7001- | |
| 14 | 569-33-71730 | CAP | 7001- | |
| 15 | 07002-12434 | O-RING | 7001- | |
| 16 | 07000-11005 | O-RING | 7001- | |
| 17 | 56B-33-11750 | COVER | 7001- | |
| 18 | 01435-01020 | BOLT | 7001- | |
| 19 | 56B-32-21911 | COVER | 7001- | |
| 20 | 01435-01030 | BOLT | 7001- | |
| 21 | 07040-11409 | PLUG | 7001- | |
| 22 | 07002-11423 | O-RING | 7001- | |
| 23 | 02781-0031D | UNION | 7001- | |
| 24 | 431-35-11420 | CONNECTOR | 7001- | |
| 25 | 07834-00613 | ELBOW | 7001- | |
| 26 | 07831-00612 | SLEEVE | 7001- | |
| 27 | 07832-00614 | NUT | 7001- | |
| 28 | 07002-11423 | O-RING | 7001- | |
| 29 | 02896-11009 | O-RING | 7001- | |
| 30 | 02761-00313 | HOSE | 7001- | |
| 31 | 07822-00603 | TUBE | 7001- |
