| Item | Part No. | Part Name | Qty | Serial No. |

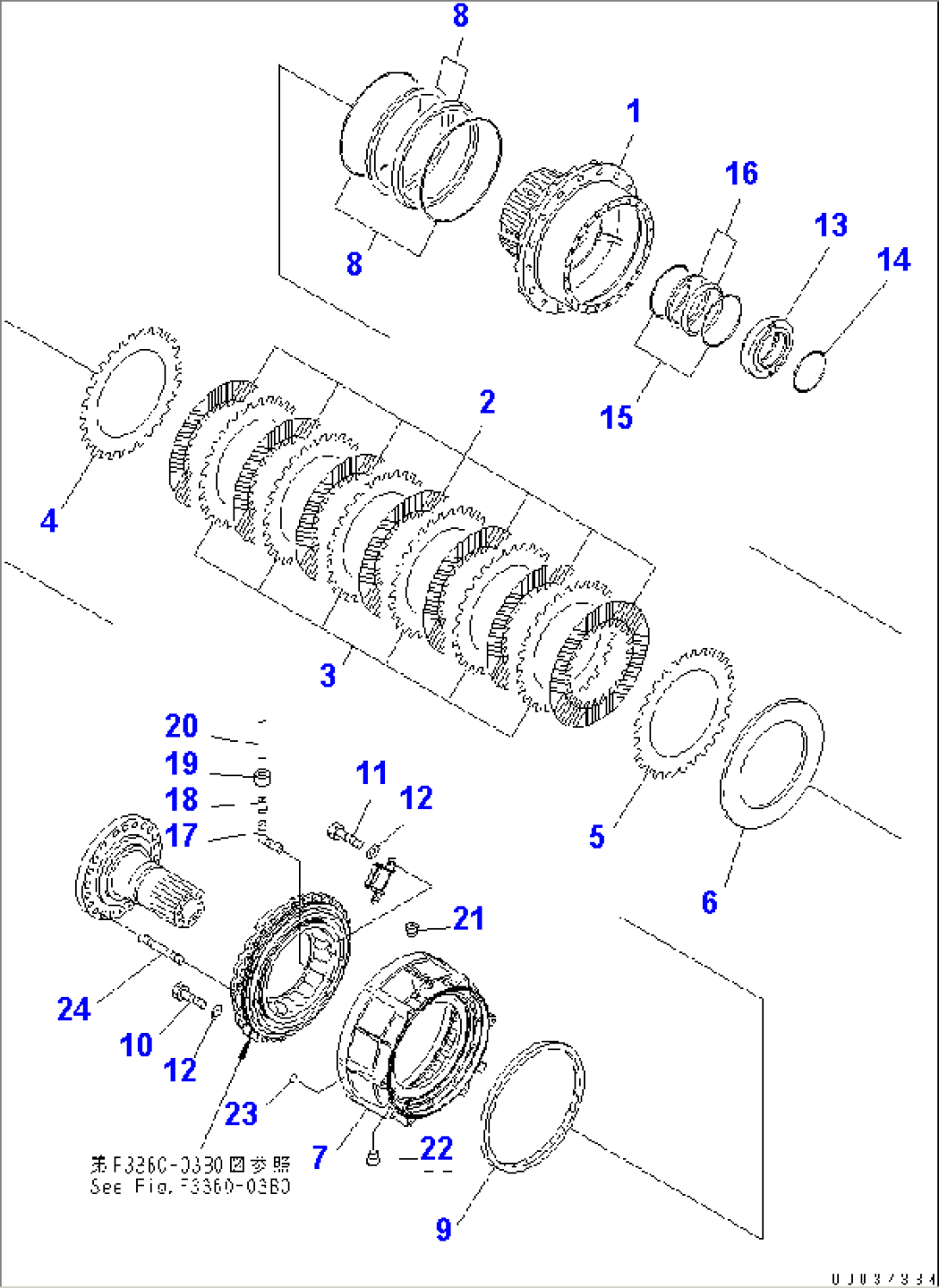

| (56D-27-15000) | FINAL DRIVE ASS'Y,L.H. | 1001- | ||
| 1 | 56D-27-12714 | HUB | 1001- | |
| 1 | (\2\56D-27-12713) | HUB | (1001-1171) | |
| 2 | 56D-33-11510 | DISC | 1001- | |
| 3 | 56D-33-11251 | PLATE | 1001- | |
| 4 | 56D-33-11261 | DAMPER | 1001- | |
| 5 | 56D-33-11271 | DAMPER | 1001- | |
| 6 | 56E-32-11280 | PLATE | 1001- | |
| 7 | 56D-32-11215 | GEAR | 1001- | |
| 56D-33-00030 | SEAL ASS'Y,FLOATING | 1001- | ||
| 8 | \6\ | SEAL | 1001- | |
| 8 | \6\ | O-RING | 1001- | |
| 9 | 56D-23-13460 | SEAL | 1001- | |
| 10 | 01010-61235 | BOLT | 1001- | |
| 11 | 01010-61240 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 56D-33-11330 | RETAINER | 1001- | |
| 14 | 07000-15135 | O-RING | 1001- | |
| 56D-33-00050 | FLOATING SEAL ASS'Y | 1001- | ||
| 15 | \6\ | O-RING | 1001- | |
| 16 | \6\ | SEAL | 1001- | |
| 17 | 07834-00613 | ELBOW | 1001- | |
| 18 | 07831-00612 | SLEEVE | 1001- | |
| 19 | 07832-00614 | NUT | 1001- | |
| 20 | 07822-00606 | TUBE | 1001- | |
| 21 | 07043-70108 | PLUG | 1001- | |
| 22 | 07043-70211 | PLUG | 1001- | |
| 23 | 07000-12012 | O-RING | 1001- | |
| 24 | 01144-32090 | STUD | 1001- |
